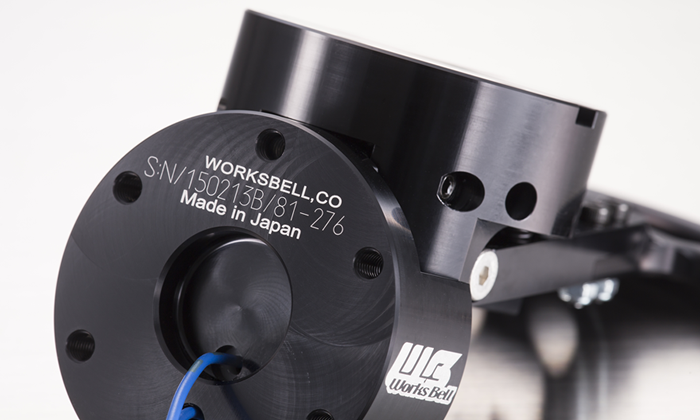

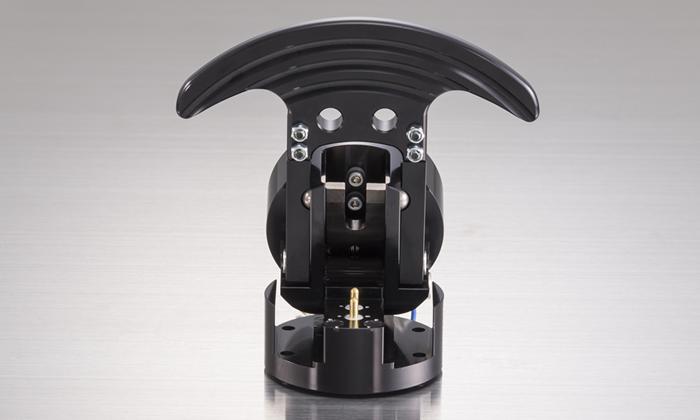

Works Bell RAPFIX GTC-R Competition Tilt Quick Release

The RAPFIX GTC-R is the competition version of the GTC tilt quick release, built for race cars running competition-pattern (PCD 50.8mm) wheels and hubs.

Features

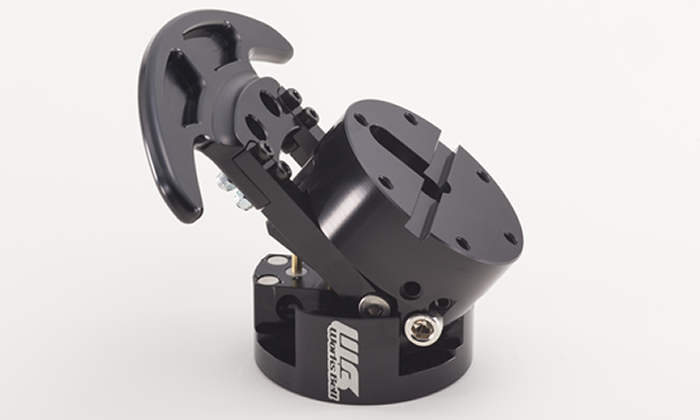

• Tilt-up quick release for race cars
• A2024-T4 aluminum alloy main body with SUJ2 steel balls
• Compact and light: 395 g (0.87 lb)

Specifications

• Wheel side: competition PCD 50.8mm (2.00 in), 6-hole
• Vehicle side: PCD 50.8mm (2.00 in), M5 x P0.8 female threads
• Main material: aluminum alloy A2024-T4; balls: SUJ2 steel
• Length: 46.5mm (1.83 in); base diameter: 60mm (2.36 in)
• Plan dimensions: W 120mm x D 111.6mm (4.72 x 4.39 in)
• Weight: 395 g (0.87 lb)

What's Included

• RAPFIX GTC-R unit (contents not itemized by Works Bell)

Fitment / Notes

• Competition-vehicle use only. Not 車検対応 (not compliant with Japan's vehicle inspection).

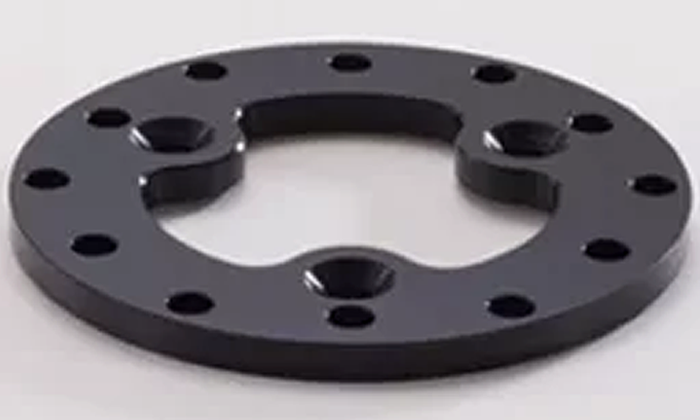

• Cannot mount directly to standard MOMO 70mm / NARDI 74mm PCD wheels — use the Works Bell GTC-R/RAPFIX Racing 3-to-6 Hole Adapter (sold separately).
• Cannot be mounted directly to a Works Bell standard boss or short boss — contact us before ordering.
• MOMO / NARDI horn buttons cannot be fitted.
• Anodized color can vary slightly from lot to lot (color variation is not grounds for return).

Shipping from Japan

This item is special-ordered from Works Bell in Japan and typically ships within about 2 weeks. Price includes U.S. import duties — no surprise charges at delivery. International shipping is calculated at checkout.

Fitment information is based on Works Bell's Japanese-market data. Please contact us before ordering if you're unsure about fitment for your US-market vehicle.
