WiseFab - Nissan S14 S15 Front V2 Drift Angle Lock Kit with Rack Relocation (WF140)

• 65+ degrees of usable lock with better feel and precise handling.
• Adjustable Ackermann — tune toward positive or negative Ackermann in minutes, even trackside, without upsetting the alignment (Ackermann kit included).
• Less sensitive steering — quicker-feeling ratio is smoothed out for controllable handling.
• More suspension travel and less interference at full droop; long-stroke coilovers can be used.
• Higher roll center — the ball joint is lowered 60mm, raising the front roll center on a lowered car so the front sway bar can be removed.
• Adjustable camber and caster with double plates, adjustable lock stopper, one-piece lower control arm.
• Very good camber control, minimal bump steer and controlled steering jacking across the full steering range, with consistent self-aligning torque.

Kit contents

• Adjustable coilover upper mounts (Formula Drift compliant)
• Knuckles with hardware
• Lower control arms
• Assembled tie rods

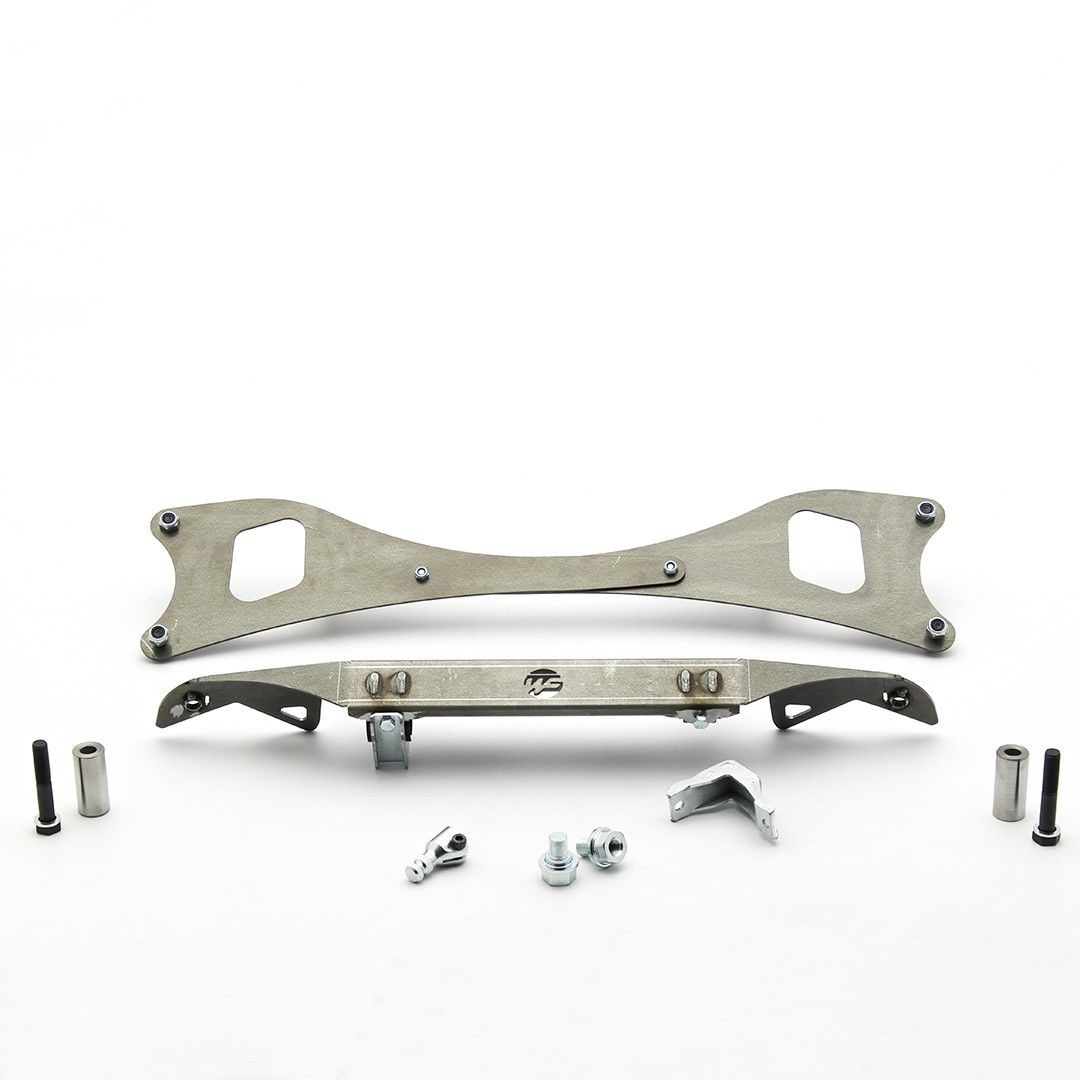

• Rack relocation kit and rack installation guide
• Installation guide

Fitment notes

Coilovers required for clearance. Depending on wheel width and offset, wider fenders or flares may be needed. With tires up to about 635mm diameter (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc.) and a lowered ride height, the inner wheel wells need slight modification. Recommended backspacing 135–140mm (7" ET45, 8" ET35, 9" ET25).

Fitment

Nissan S14 / S15 Silvia (240SX S14)

Part number

WF140-INS

Ships from the U.S. Shipping and sales tax (where applicable) are calculated at checkout.
