Swift Metric Coilover Springs - ID 60mm / 7" (178mm) Length - Pair
Swift Metric Coilover Springs - ID 60mm / 7" (178mm) Length - Pair
Regular price
$202.99 USD
Regular price
Sale price
$202.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Swift metric coilover springs, sold as a pair. Inner diameter 60mm (2.37"), free length 178mm (7"). Made from Swift's high-tensile spring steel, these springs hold their rate and free length over time, and are a common choice for drift, time attack and street cars running Japanese-style coilovers.
Pick your spring rate from the options. Not sure which rate or length you need? Ask us before ordering and we'll help you work it out from your car, coilovers and driving style.
Specifications - ID 60mm / 178mm
| Part # | Rate (kgf/mm) | Rate (lbs/in) | Usable stroke (mm) | Max stroke (mm) |
| Z60-178-040 | 4.0 | 224 | 118 | 119 |
| Z60-178-050 | 5.0 | 280 | 112 | 115 |
| Z60-178-060 | 6.0 | 336 | 104 | 115 |
| Z60-178-070 | 7.0 | 392 | 96 | 115 |
| Z60-178-080 | 8.0 | 448 | 93 | 111 |
| Z60-178-090 | 9.0 | 504 | 87 | 113 |
| Z60-178-100 | 10.0 | 560 | 84 | 112 |
| Z60-178-110 | 11.0 | 616 | 82 | 110 |
| Z60-178-120 | 12.0 | 672 | 80 | 108 |
| Z60-178-130 | 13.0 | 728 | 81 | 104 |
| Z60-178-140 | 14.0 | 784 | 78 | 104 |
| Z60-178-150 | 15.0 | 840 | 77 | 101 |
| Z60-178-160 | 16.0 | 896 | 75 | 101 |
| Z60-178-170 | 17.0 | 952 | 76 | 99 |
| Z60-178-180 | 18.0 | 1,008 | 72 | 102 |
| Z60-178-200 | 20.0 | 1,120 | 70 | 100 |
| Z60-178-220 | 22.0 | 1,232 | 70 | 93 |
| Z60-178-240 | 24.0 | 1,344 | 68 | 93 |

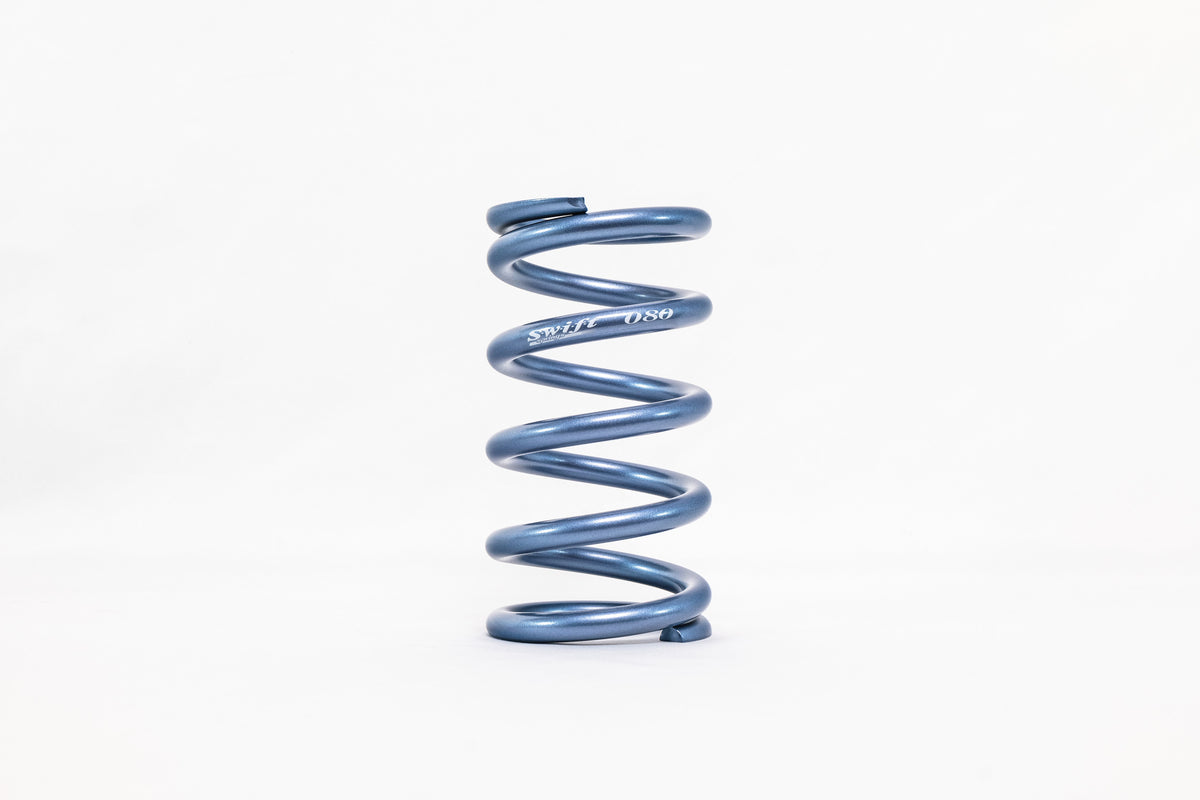

Spring color is coded by inner diameter; the photo shows the color, not the exact length or rate.
