Swift Metric Coilover Springs - ID 60mm / 4" (102mm) Length - Pair

Swift Metric Coilover Springs - ID 60mm / 4" (102mm) Length - Pair

$202.99 USD
$202.99 USD
Sale Sold out
Shipping calculated at checkout.
Spring Rate

Swift metric coilover springs, sold as a pair. Inner diameter 60mm (2.37"), free length 102mm (4"). Made from Swift's high-tensile spring steel, these springs hold their rate and free length over time, and are a common choice for drift, time attack and street cars running Japanese-style coilovers.

Pick your spring rate from the options. Not sure which rate or length you need? Ask us before ordering and we'll help you work it out from your car, coilovers and driving style.

Specifications - ID 60mm / 102mm

Part # Rate (kgf/mm) Rate (lbs/in) Usable stroke (mm) Max stroke (mm)
Z60-102-180 18.0 1,008 50 55
Z60-102-200 20.0 1,120 49 53
Z60-102-220 22.0 1,232 48 52
Z60-102-240 24.0 1,344 47 51
Z60-102-260 26.0 1,456 45 51
Z60-102-280 28.0 1,568 43 51
Z60-102-300 30.0 1,680 43 50
Z60-102-320 32.0 1,792 42 50
Z60-102-340 34.0 1,904 42 48
Z60-102-380 38.0 2,128 39 45
Z60-102-420 42.0 2,352 37 43
Z60-102-460 46.0 2,576 36 44
Z60-102-500 50.0 2,800 35 42

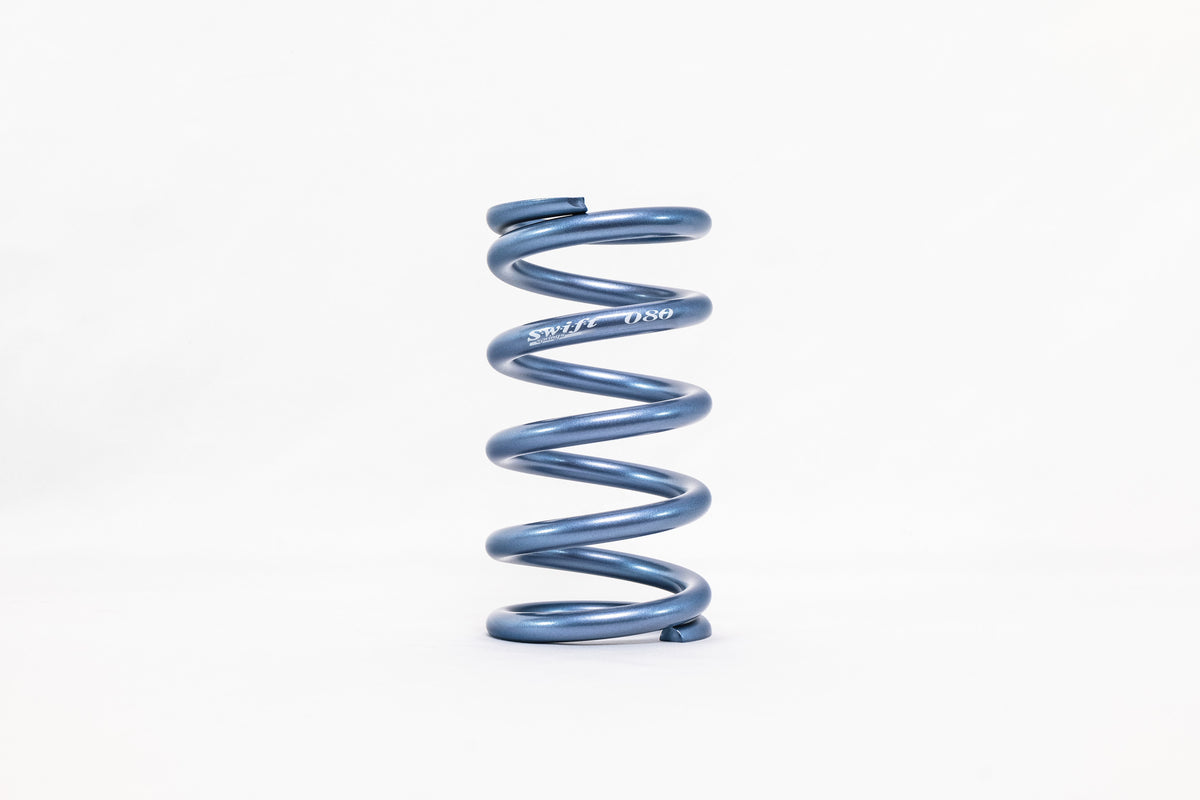

Spring color is coded by inner diameter; the photo shows the color, not the exact length or rate.
