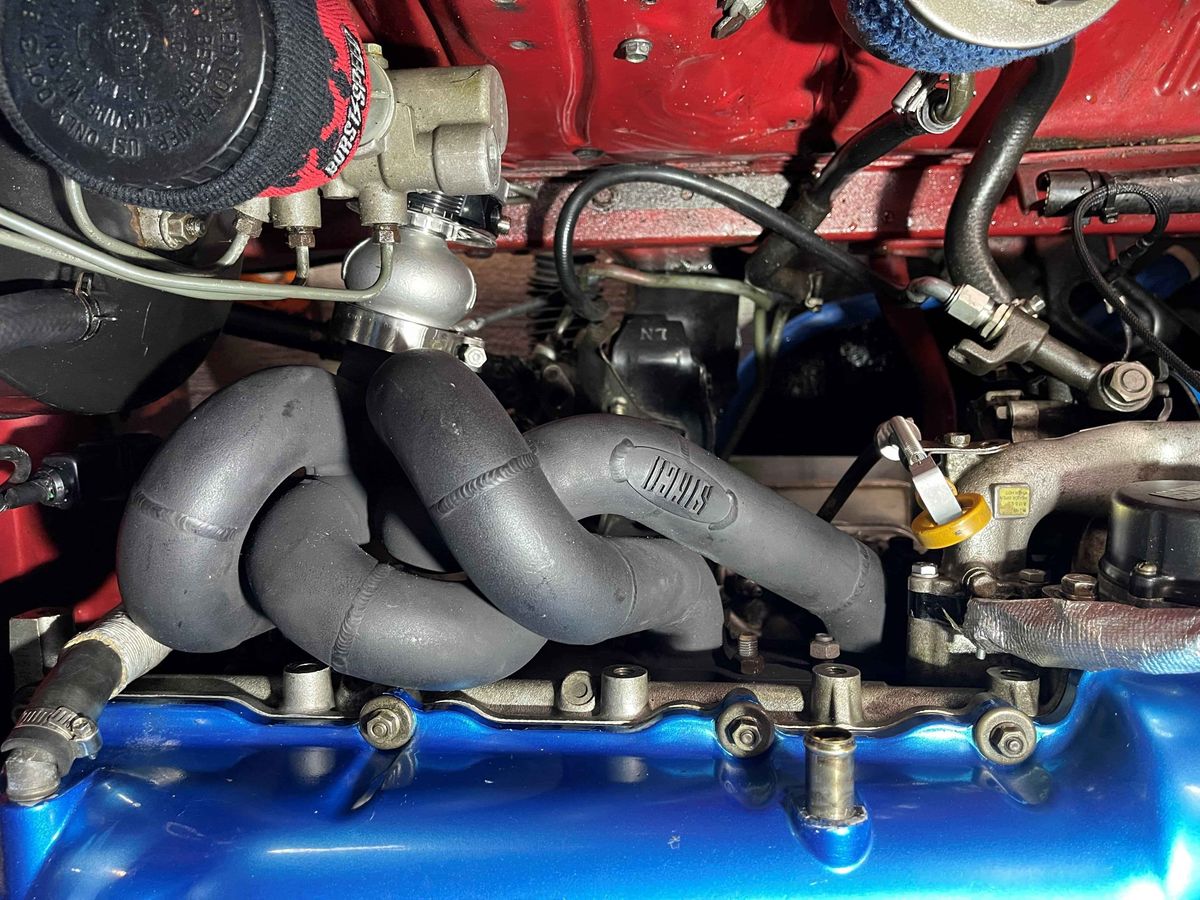

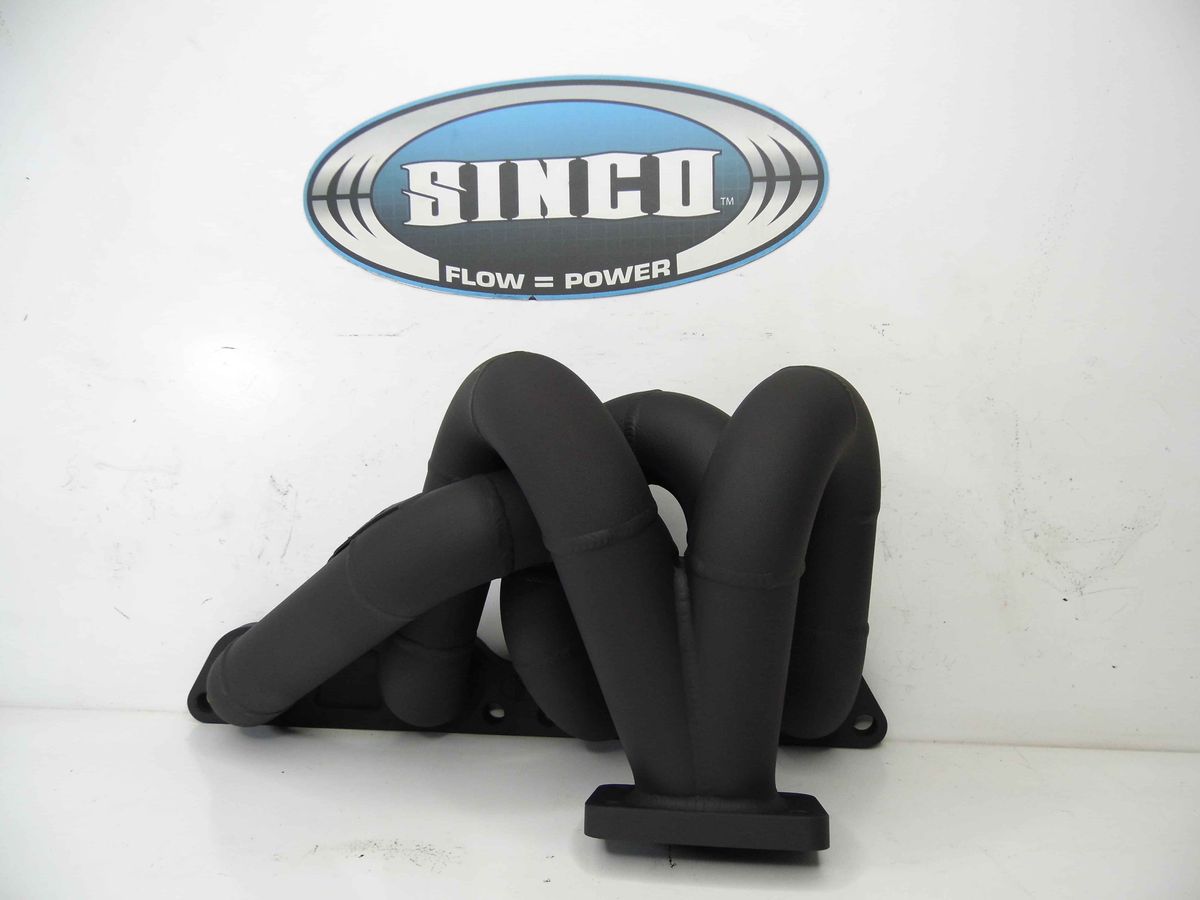

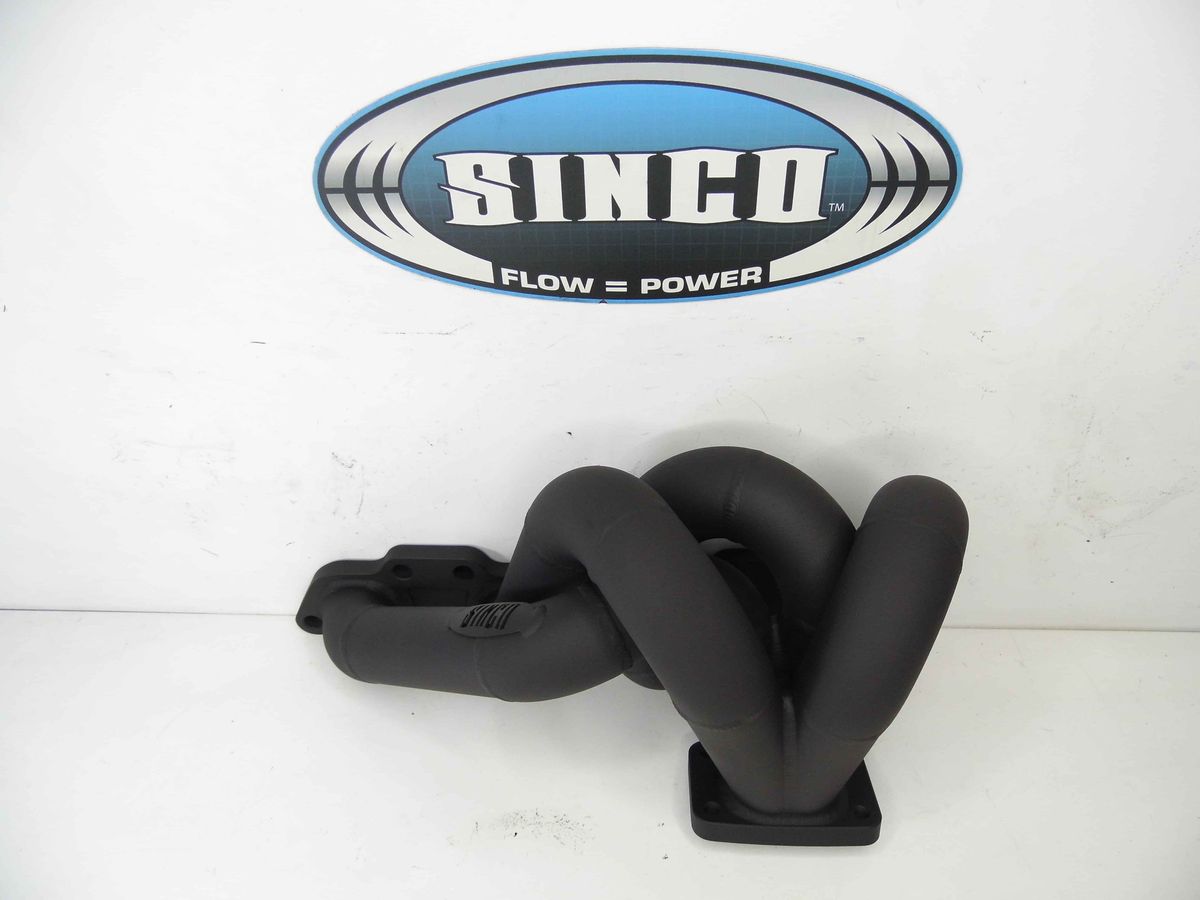

SINCO SR20DET Factory Position Turbo Manifold

Direct replacement for the factory cast SR20DET manifold, keeping the turbo in the stock position with a T25/T28 turbo flange. Fits RHD and LHD S-chassis.

• 4-into-1 merge collector developed through years of dyno testing and tuner feedback
• 12mm CNC-machined flanges
• 35mm inside-diameter runners
• Steam-tube construction, matte black finish
• 5-year no-crack warranty from SINCO

ABS cars: use a 38mm 2-bolt, Tial MVS 38mm or Turbosmart 40mm wastegate — the 44/45mm gate is too large with the ABS pump fitted. The ABS pump must be offset about 30mm away from the engine (cut and offset the bracket; brake lines are repositioned, not cut).

Made to order in New Zealand. Each manifold is built after you order. Lead time varies with SINCO's workload — ask us for the current estimate. Price includes international freight from New Zealand and US import duties; US shipping is calculated at checkout.

Gaskets are not included.
