GKTECH Dual Caliper Hydraulic E-Brake Kit (86 / GR86 / BRZ)

Everything needed for a dual-caliper hydraulic e-brake on the 86 / BRZ except the second calipers. The kit keeps the OEM e-brake working for parking.

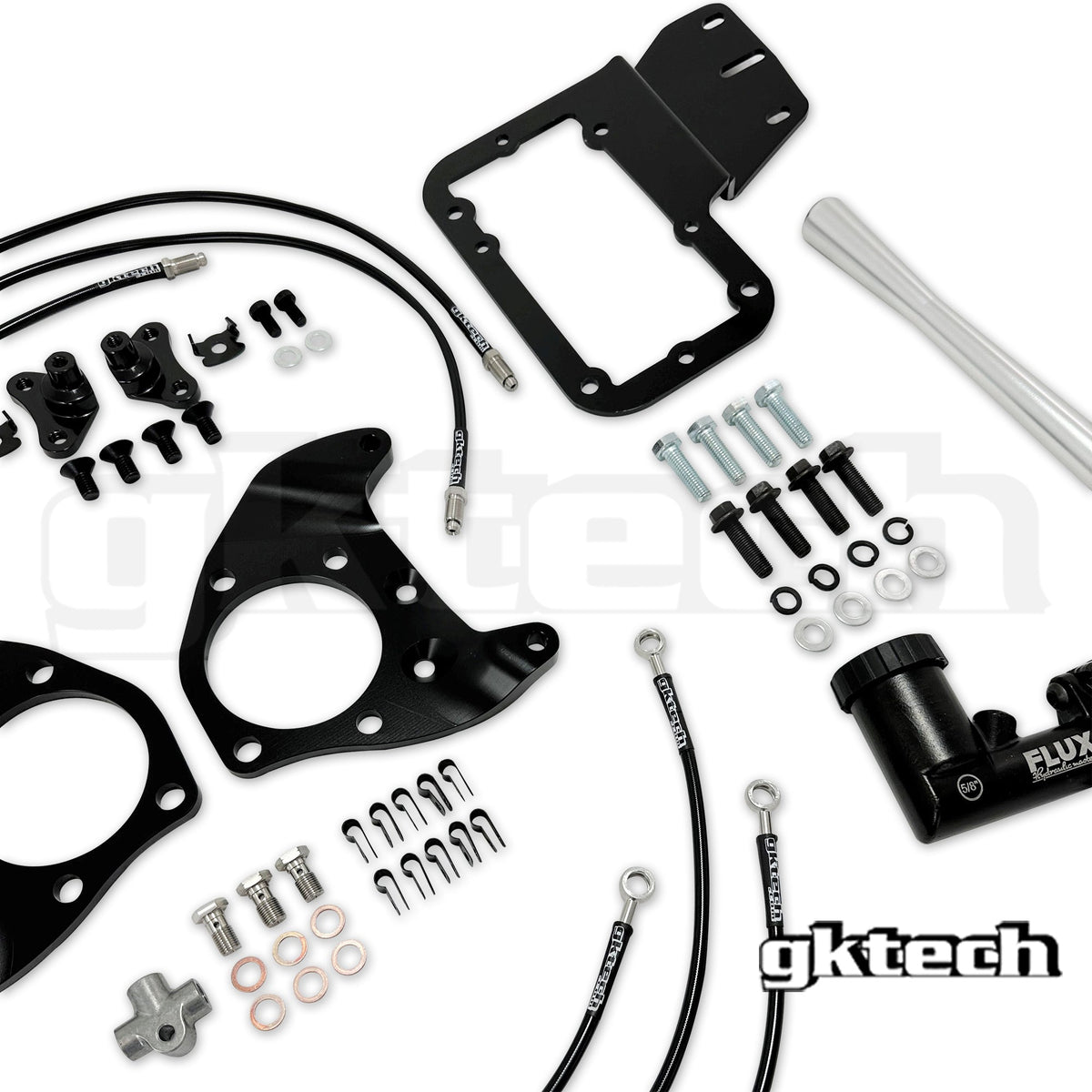

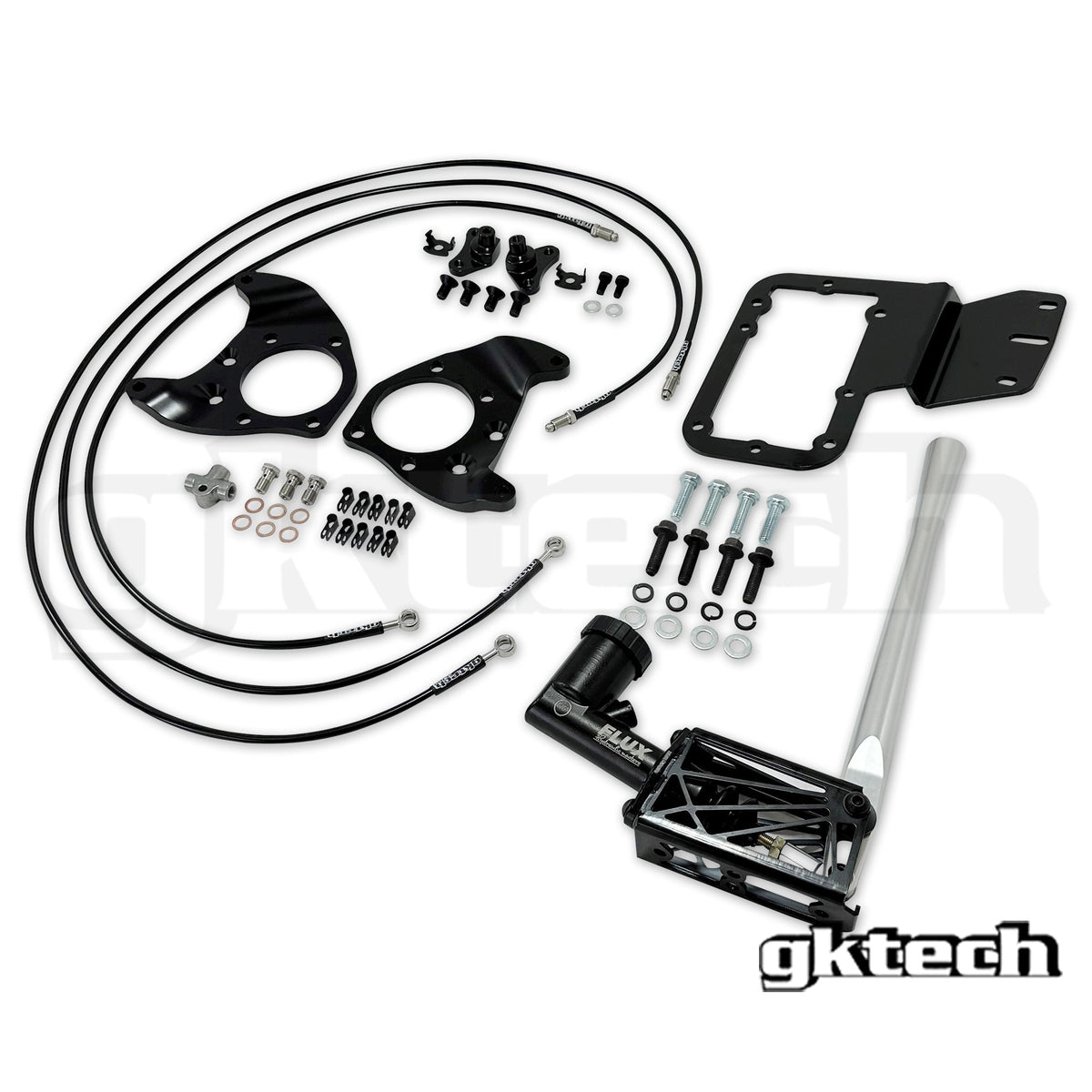

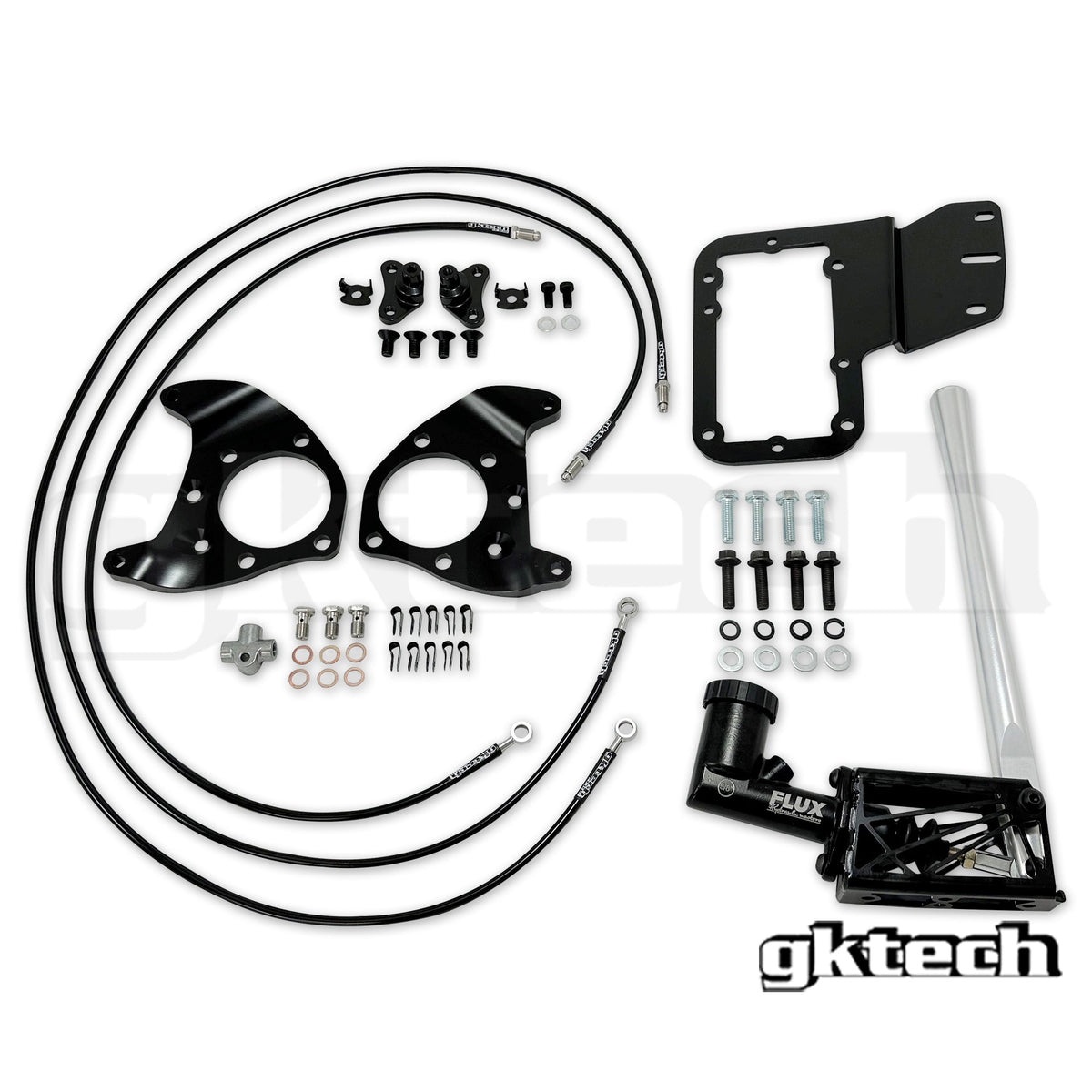

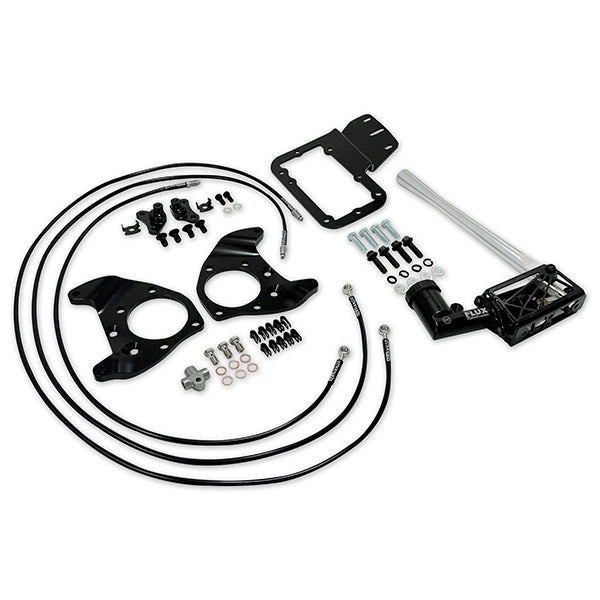

Kit contents

• GKTECH hydraulic e-brake assembly
• E-brake handle (your color)
• Stand-alone master cylinder (5/8" or 3/4")
• 86 / BRZ e-brake braided line kit
• GKTECH dual-caliper brackets (Brembo or non-Brembo)
• Optional LHD bolt-in e-brake mount

About the components

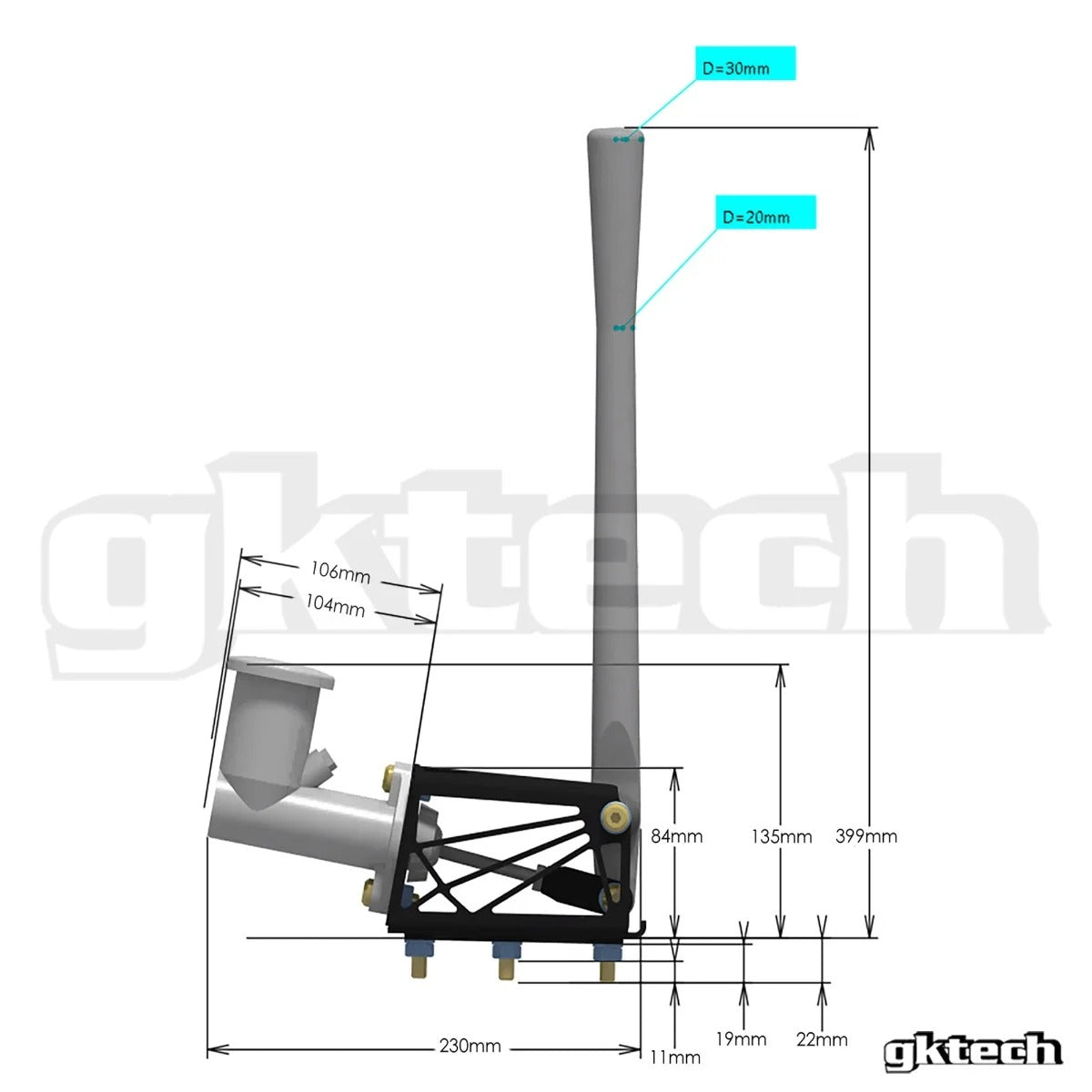

• E-brake assembly — houses the lever and master cylinder.
• Master cylinder — choose 5/8" or 3/4". GKTECH recommends 5/8" for most setups.
• Braided lines — stainless fittings and stainless braided PTFE line made in-house by GKTECH for this chassis, including P-clips to route the line through the car.
• E-brake handle — CNC-machined aluminum lever, comfortable and good-looking. Choose silver, black, blue, pink, purple, red, orange, gold or neo chrome.
• Chassis-specific mount (optional) — side-mounted bracket that locates the e-brake in the right position without drilling the transmission tunnel or trimming the center console.

Fitment

Toyota 86 / Scion FR-S / Subaru BRZ (ZN6/ZC6) and GR86 / BRZ (ZN8/ZD8). Choose the bracket to match your rear calipers (Brembo or non-Brembo). The second pair of calipers is not included — the kit is designed to use a second pair of OEM 86 / BRZ rear calipers that match the ones on your car (Brembo with Brembo, non-Brembo with non-Brembo). The brackets fit OEM knuckles only. The LHD bolt-in mount fits ZN6-chassis cars.
