D-MAX MAX POWER Air Filter, Cotton (80Ф/100Ф) + Direct Suction Pipe (1JZ)
D-MAX MAX POWER Air Filter, Cotton (80Ф/100Ф) + Direct Suction Pipe (1JZ)
Couldn't load pickup availability

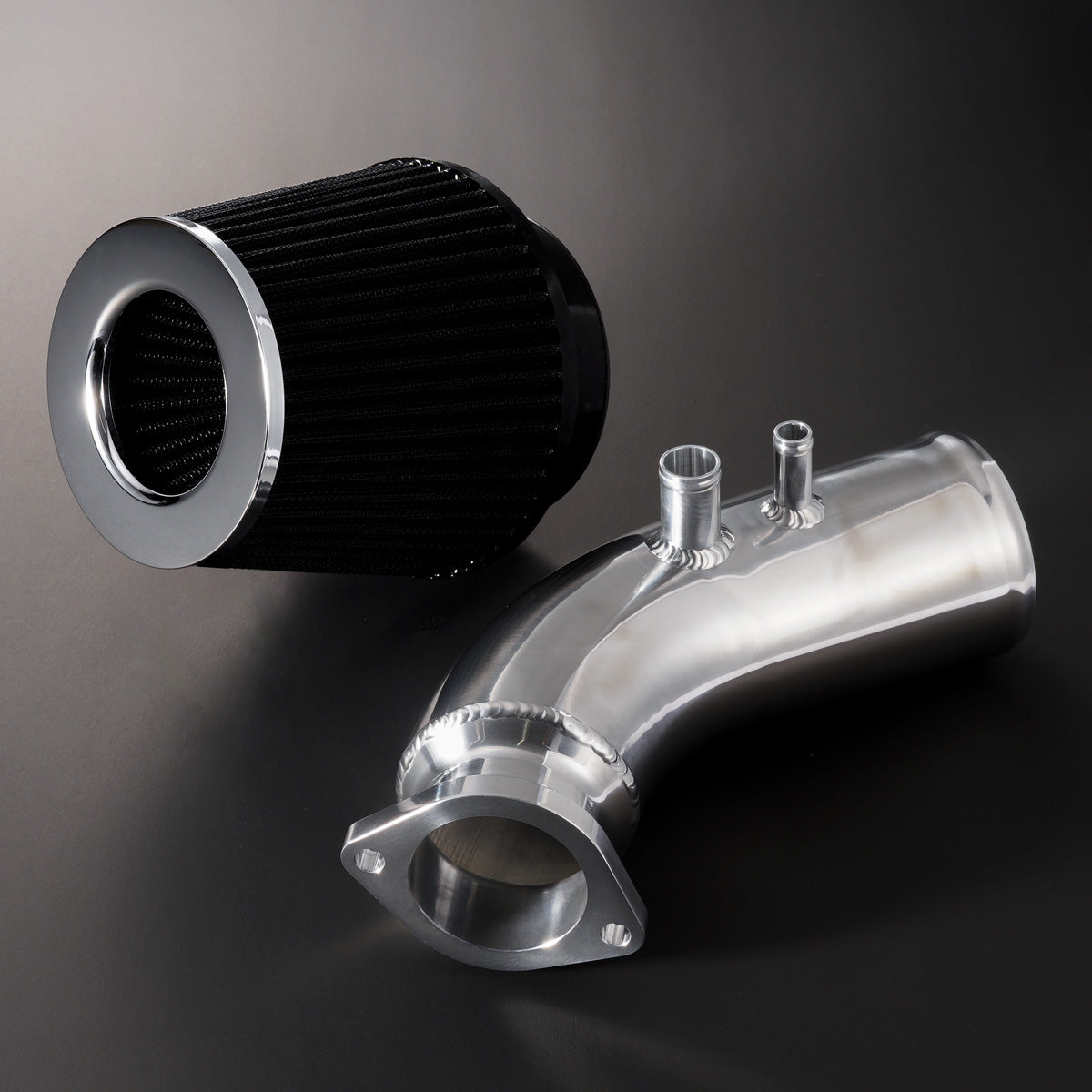

A set price for buying the air filter and direct suction pipe together.

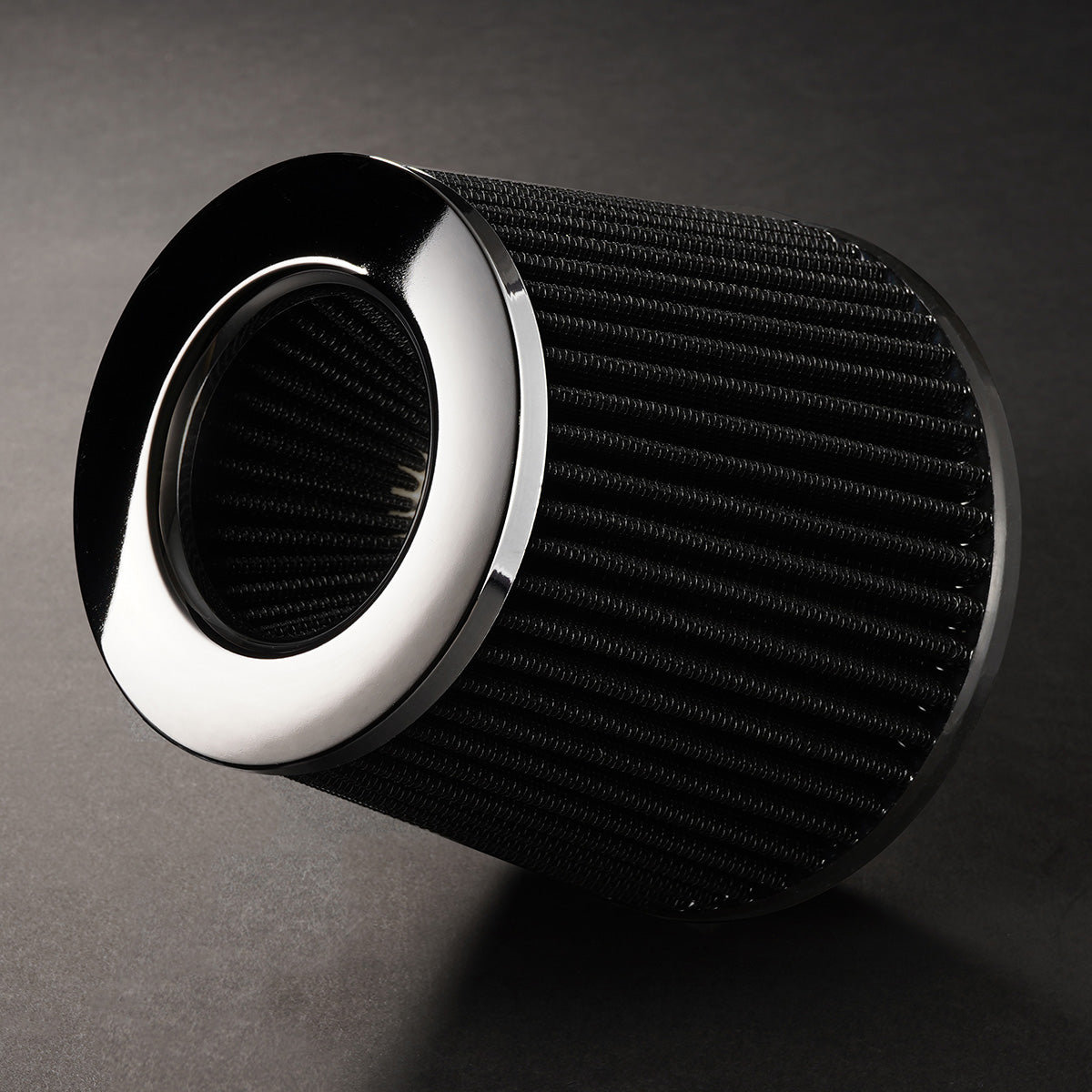

Air filter
An air filter's main job is to keep contaminants out of the air the engine breathes. These contaminants stick to the cylinders, pistons, intake valves and spark plug electrodes and keep the engine from reaching its full potential. A dirty filter reduces airflow and adds load to the engine, so replacing it lets the engine breathe efficiently and restores or even improves its original power — a vital part. The MAX POWER air filter was refined through many 3D-printed samples and repeated testing to arrive at a shape with excellent intake efficiency. It is washable, giving it a semi-permanent lifespan.
| Cotton version | A lower funnel design for maximum intake efficiency, with metal mesh inside and out to protect the cotton element and ensure strength. |
|---|---|
| Stainless version | Uses a stainless mesh shell like those used in racing. It delivers high filtration and intake efficiency — much better flow than the cotton type — for a racier intake sound. |
Air filter details
| Material | Cotton (with metal mesh) |
|---|---|
| Included accessories | 1 hose clamp |
*Can be cleaned with compressed air, but do not wash with water.

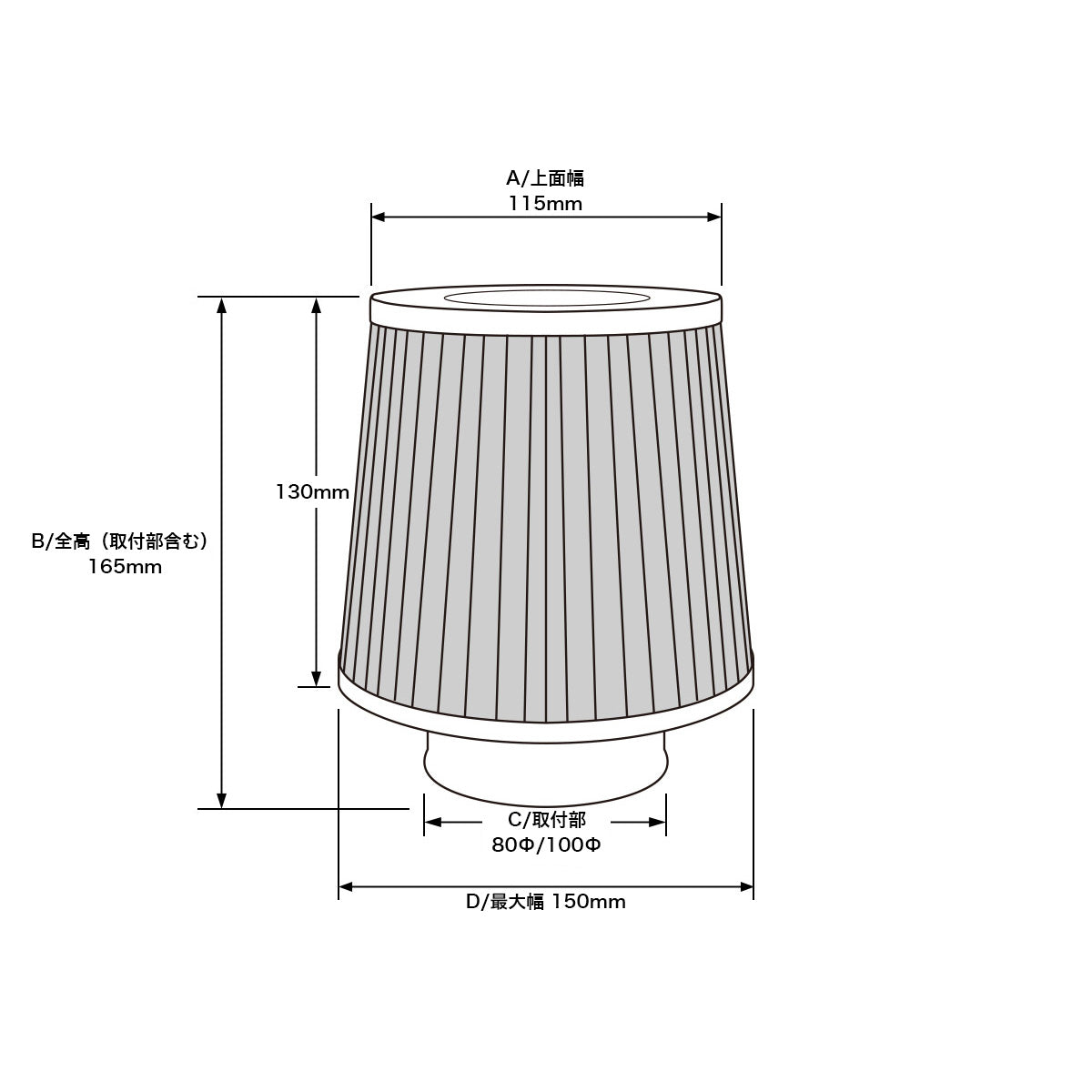

Air filter core size (mm)
| A / Top width | B / Overall height (including mount) | C / Mount | D / Maximum width |
|---|---|---|---|
| 115mm | 130mm (165mm) | 80Ф/100Ф | 150mm |
*The mounting section is a rubber-neck type.
*Take care when installing on high-temperature areas (e.g. directly on the turbo), as the inner cap may come off.
*Silicone hose not included.
*To fit a 100Ф intake, you need an 80Ф–100Ф reducer pipe with an 80mm silicone hose, or a 100mm aluminum pipe with a reducer silicone hose.

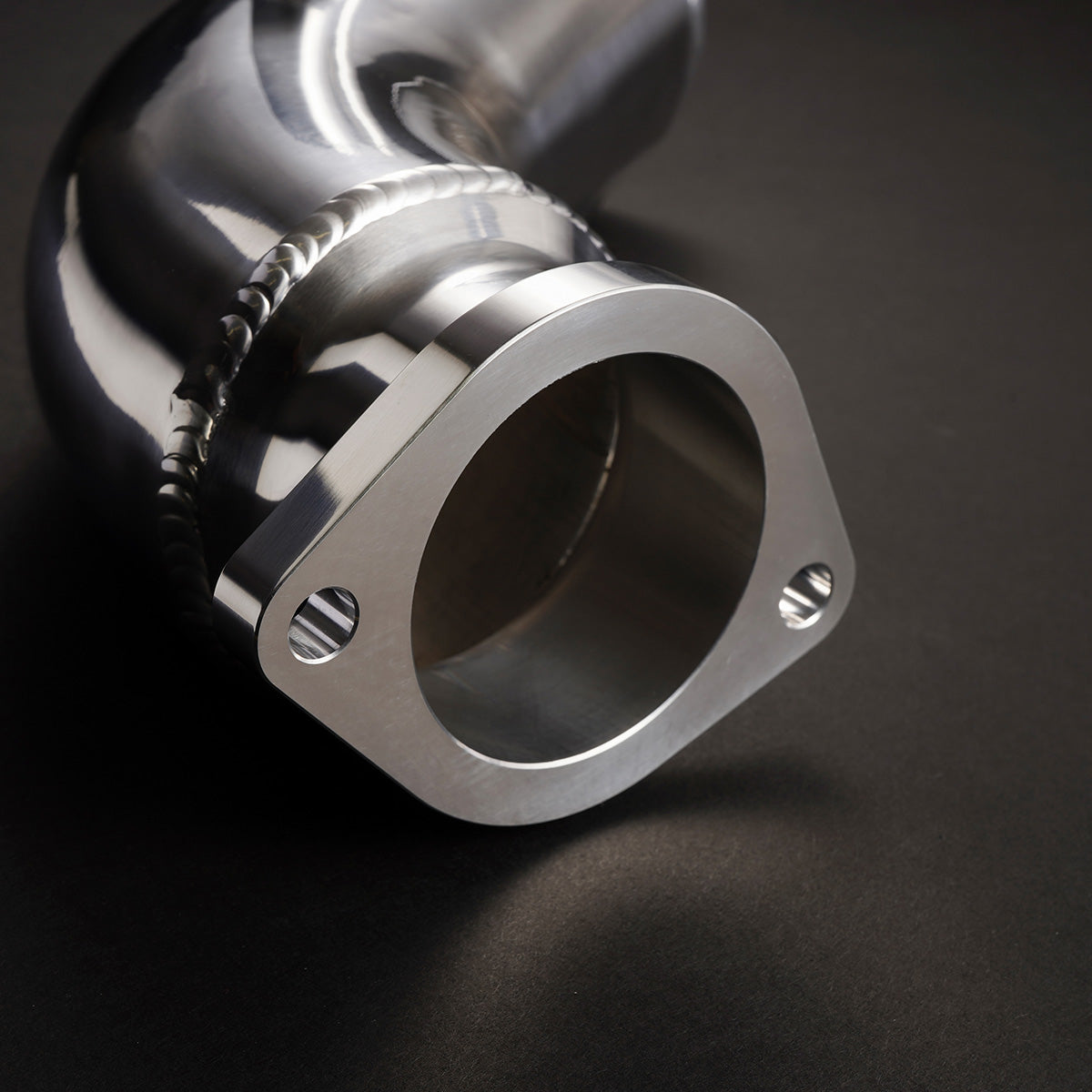

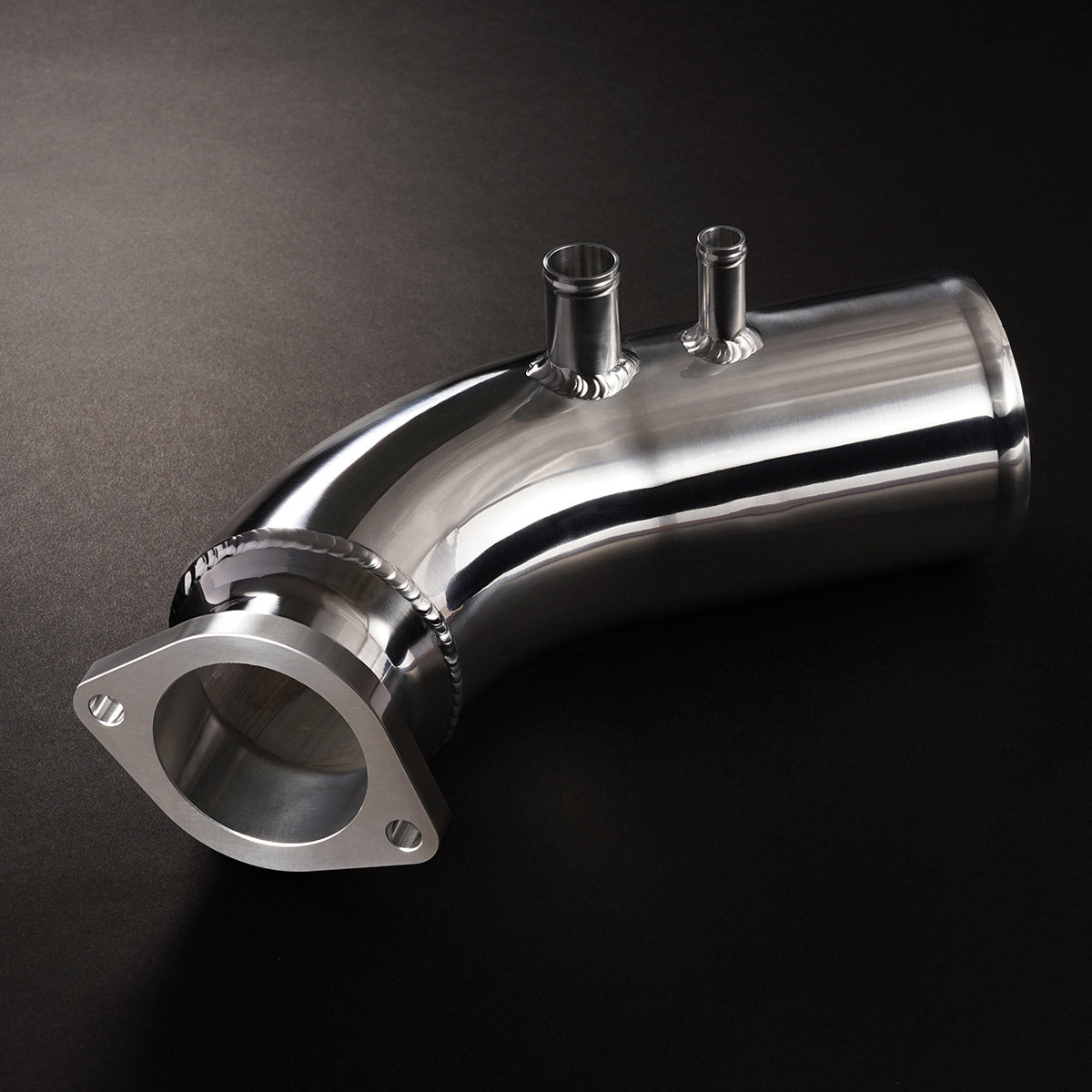

Direct suction pipe
The OEM piping is bent, so we made it nearly straight for smoother airflow with engine-bay efficiency in mind, using lightweight aluminum pipe. Combined with the air filter (sold separately), it greatly improves power and response.

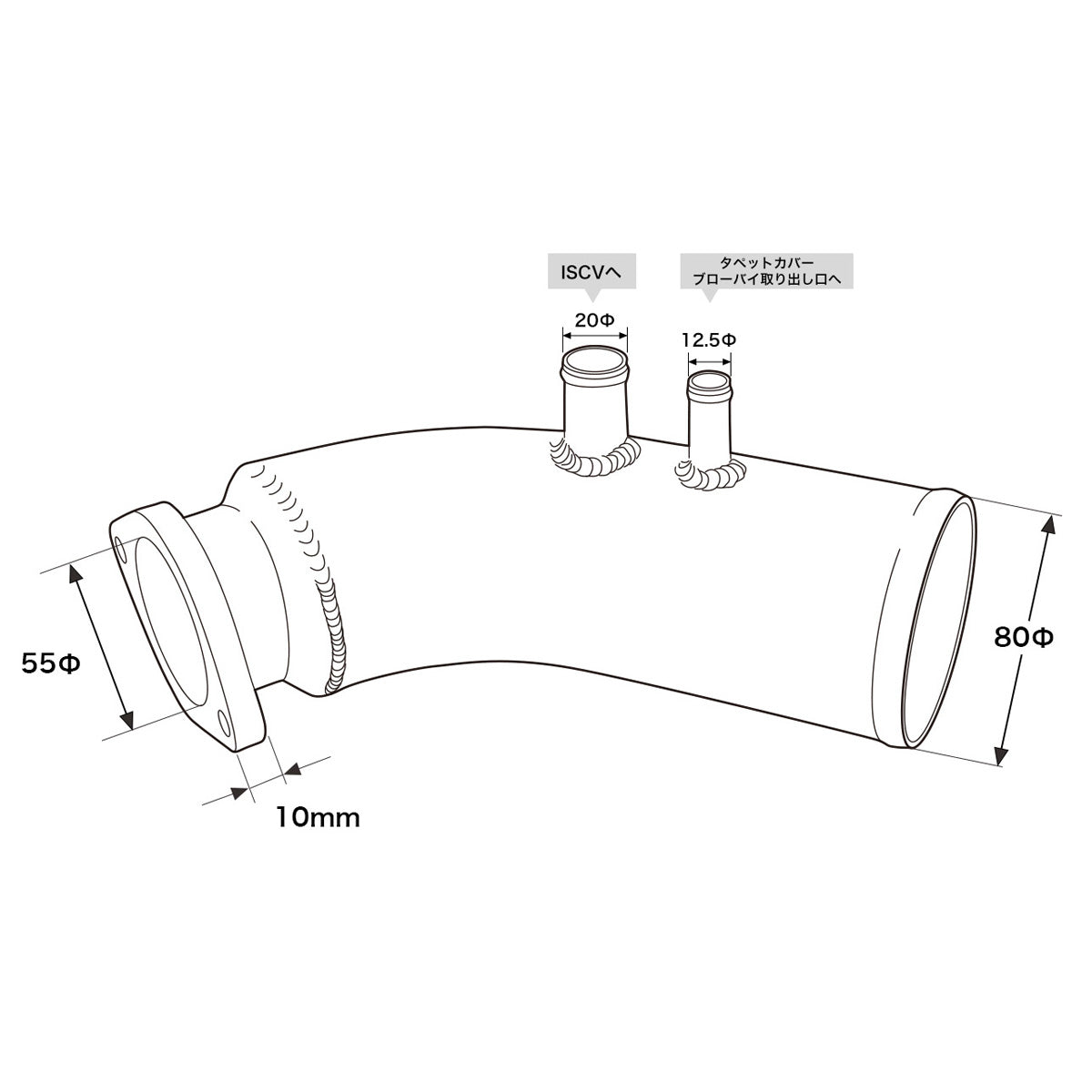

Direct suction pipe details
| Material | Aluminum |
|---|---|
| Size | 80Ф |
| Compatible chassis codes | JZX100/JZX110 |
| Compatible engines | 1JZ-GTE |
| Included accessories | None |
*JZX110 vehicles do not use the ISCV, so the port must be capped.
*The OEM blow-off valve can no longer be fitted.
