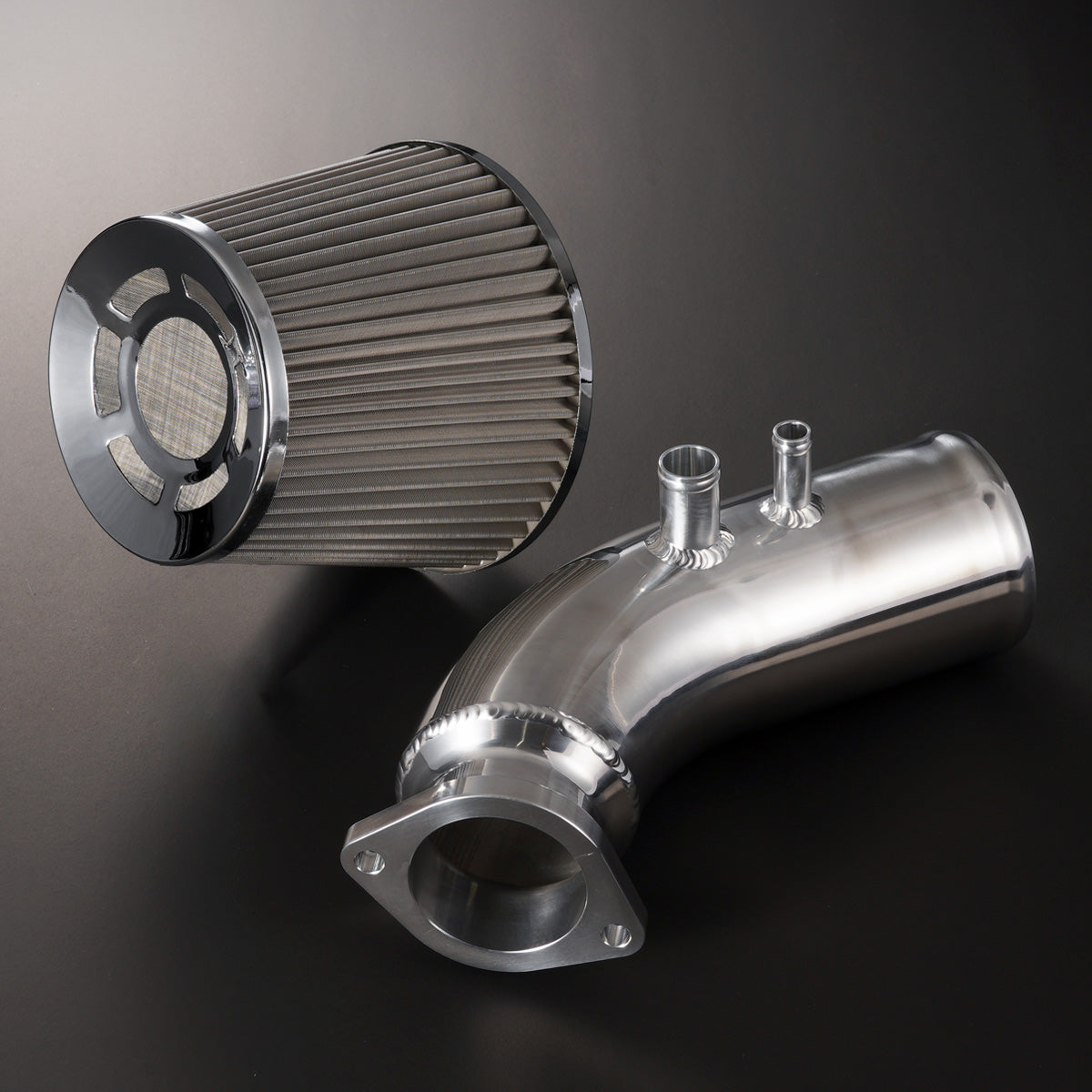

D-MAX MAX POWER Air Filter, All-Stainless (80Ф) + Direct Suction Pipe (1JZ)
D-MAX MAX POWER Air Filter, All-Stainless (80Ф) + Direct Suction Pipe (1JZ)
Couldn't load pickup availability
A set price for buying the air filter and direct suction pipe together.
Air filter
An air filter's main job is to keep contaminants out of the air the engine breathes. These contaminants stick to the cylinders, pistons, intake valves and spark plug electrodes and keep the engine from reaching its full potential. A dirty filter reduces airflow and adds load to the engine, so replacing it lets the engine breathe efficiently and restores or even improves its original power — a vital part. The MAX POWER air filter was refined through many 3D-printed samples and repeated testing to arrive at a shape with excellent intake efficiency. It is washable, giving it a semi-permanent lifespan.
| Cotton version | A lower funnel design for maximum intake efficiency, with metal mesh inside and out to protect the cotton element and ensure strength. |
|---|---|
| Stainless version | Uses a stainless mesh shell like those used in racing. It delivers high filtration and intake efficiency — much better flow than the cotton type — for a racier intake sound. |
Air filter details
| Material | All stainless (SUS304) |
|---|---|
| Included accessories | 1 hose clamp |
*Can be washed with water, but after cleaning, blow out all moisture with compressed air and let it dry completely before use.
*Silicone hose not included.
Air filter core size (mm)
| A / Top width | B / Overall height (including mount) | C / Mount | D / Maximum width |
|---|---|---|---|
| 115mm | 130mm (155mm) | 80Ф | 150mm |
*The mounting section is a rubber-neck type.

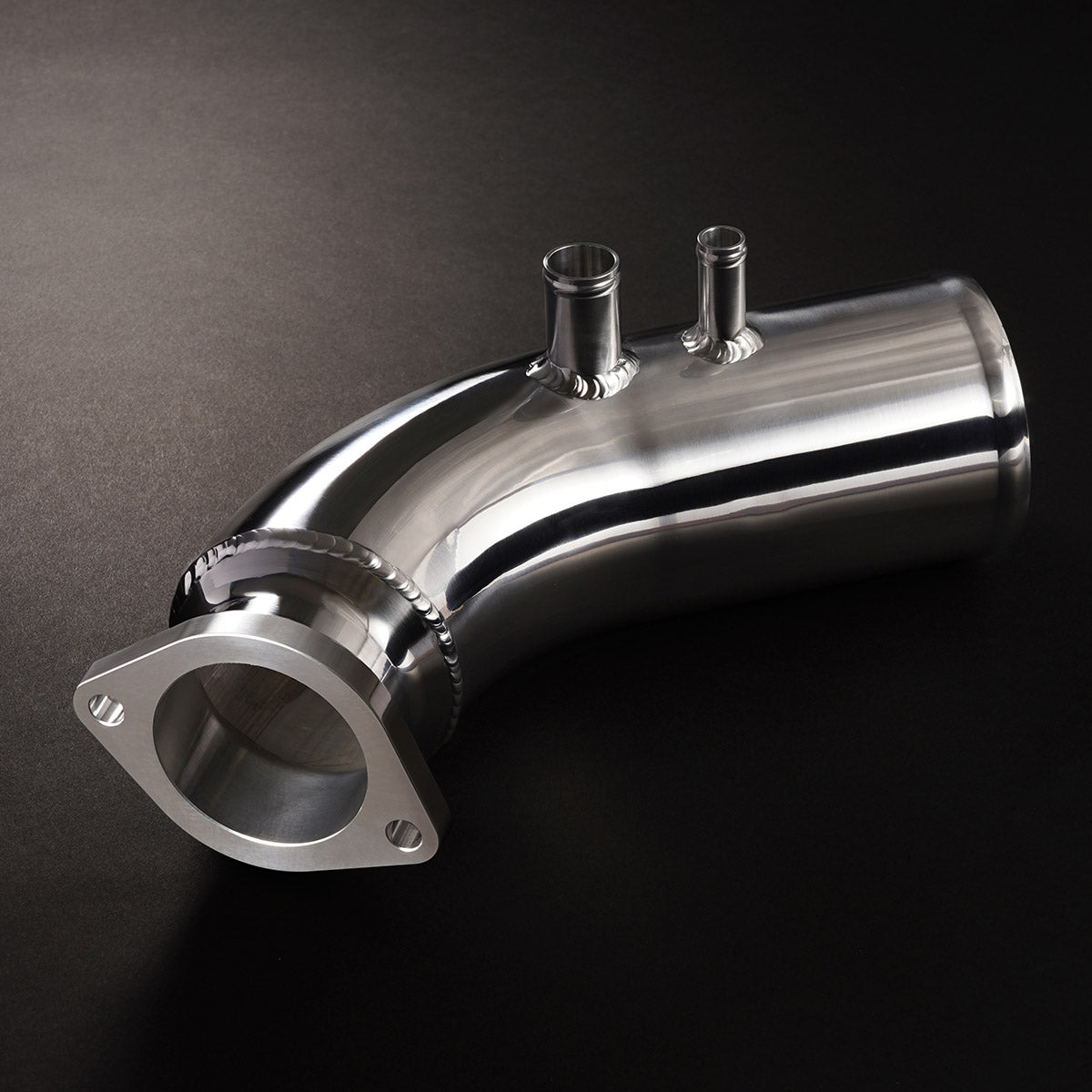

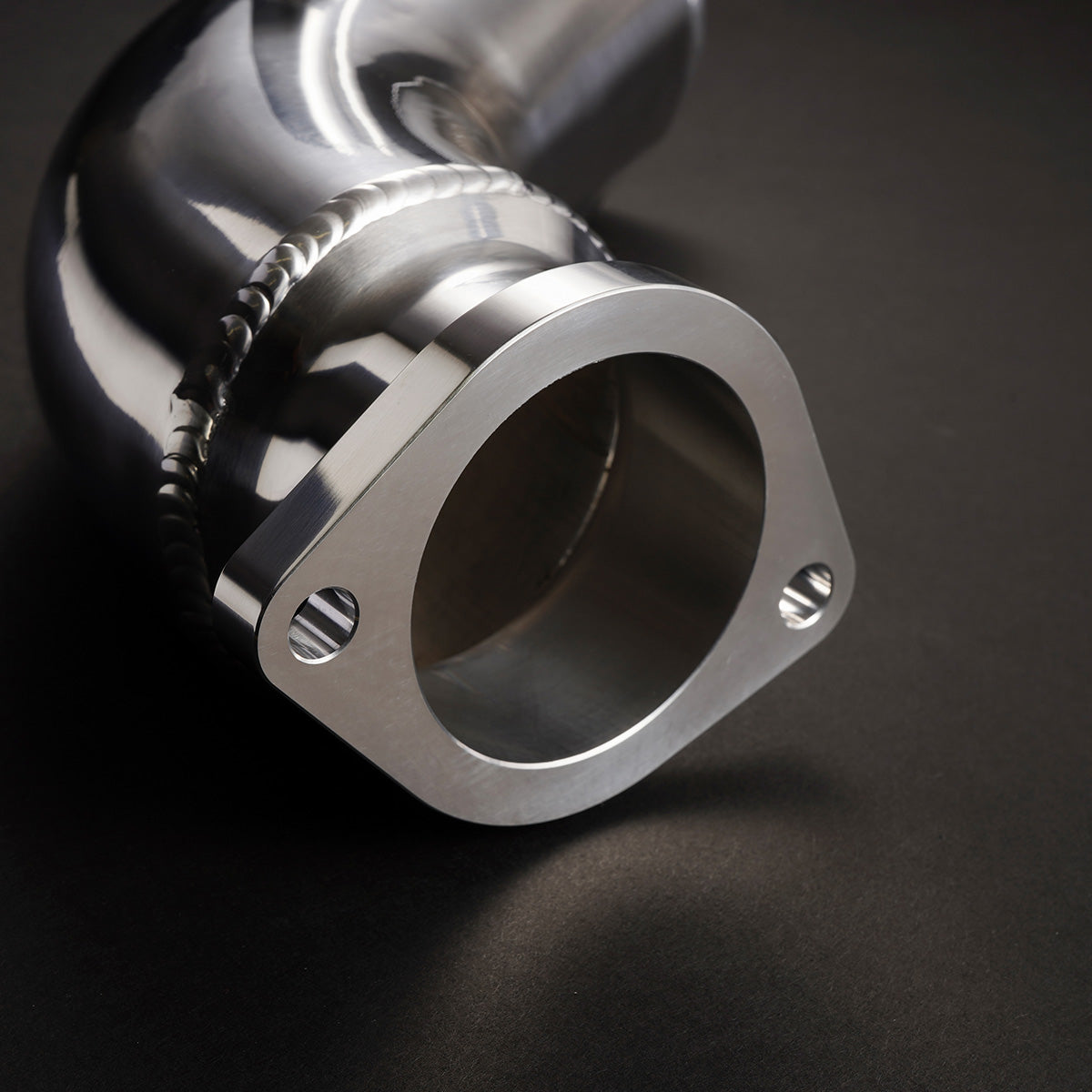

Direct suction pipe
The OEM piping is bent, so we made it nearly straight for smoother airflow with engine-bay efficiency in mind, using lightweight aluminum pipe. Combined with the air filter (sold separately), it greatly improves power and response.

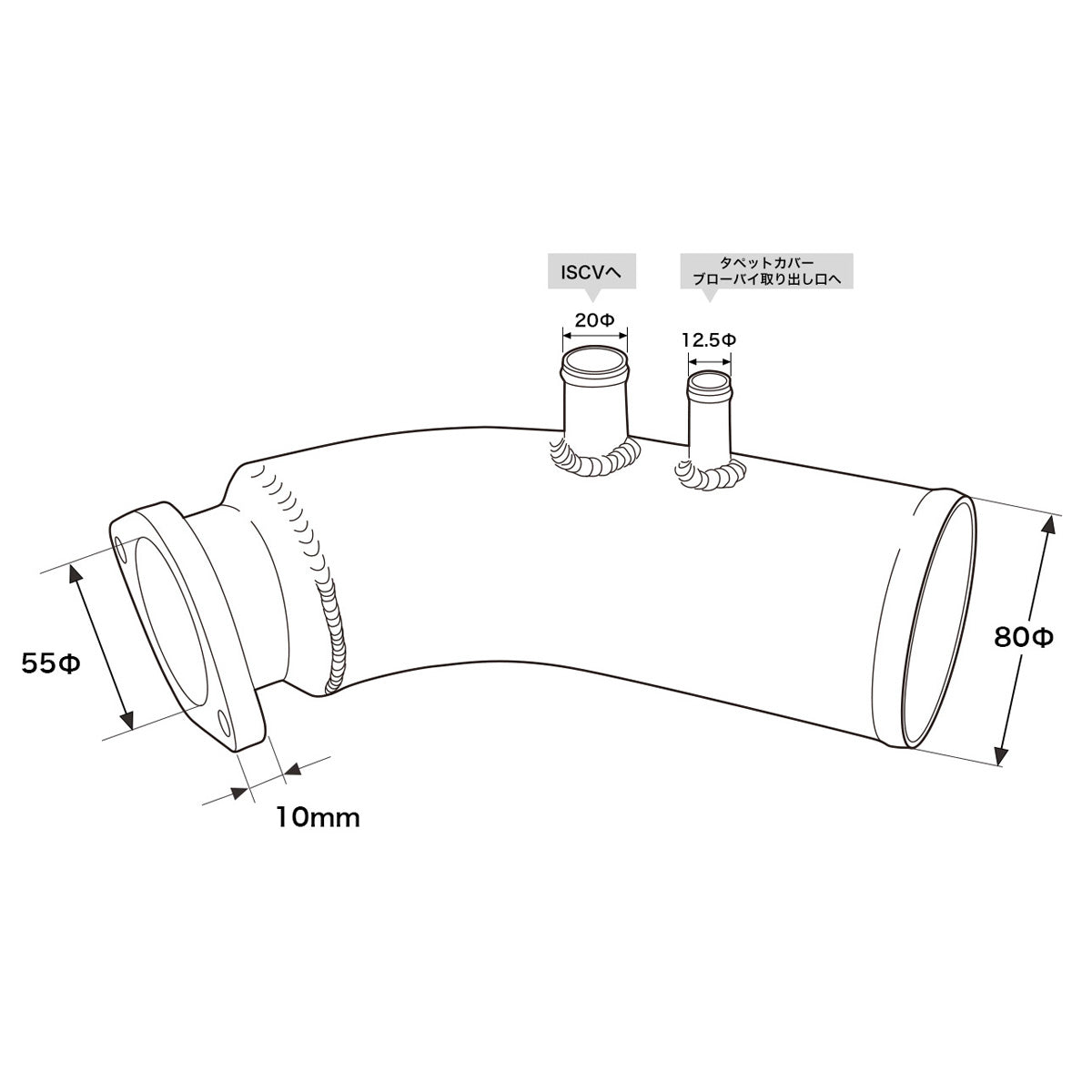

Direct suction pipe details
| Material | Aluminum |
|---|---|
| Size | 80Ф |
| Compatible chassis codes | JZX100/JZX110 |
| Compatible engines | 1JZ-GTE |
| Included accessories | None |
*JZX110 vehicles do not use the ISCV, so the port must be capped.
*The OEM blow-off valve can no longer be fitted.
