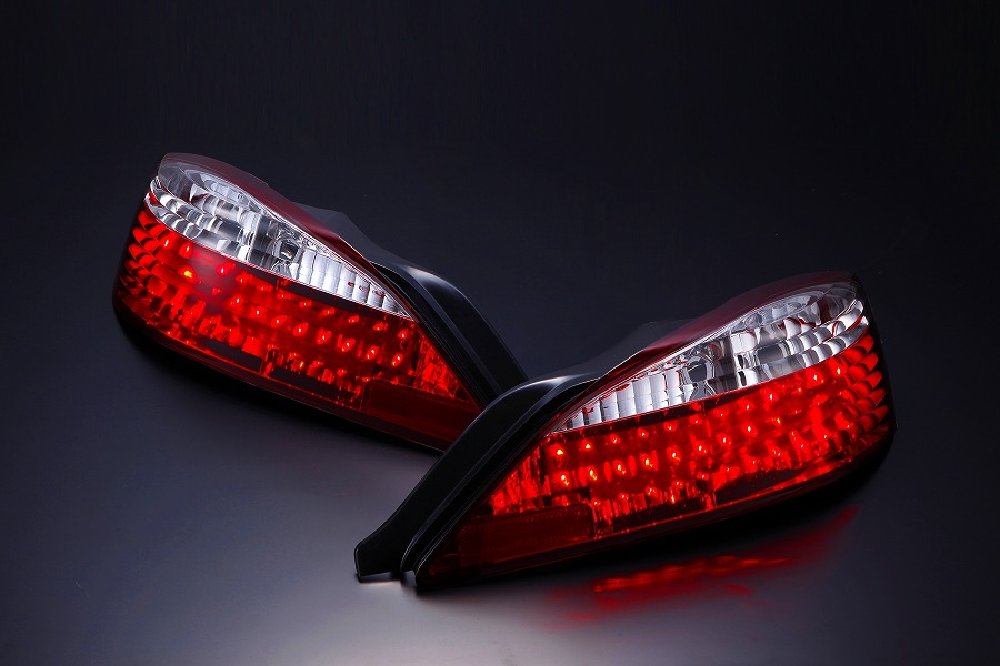

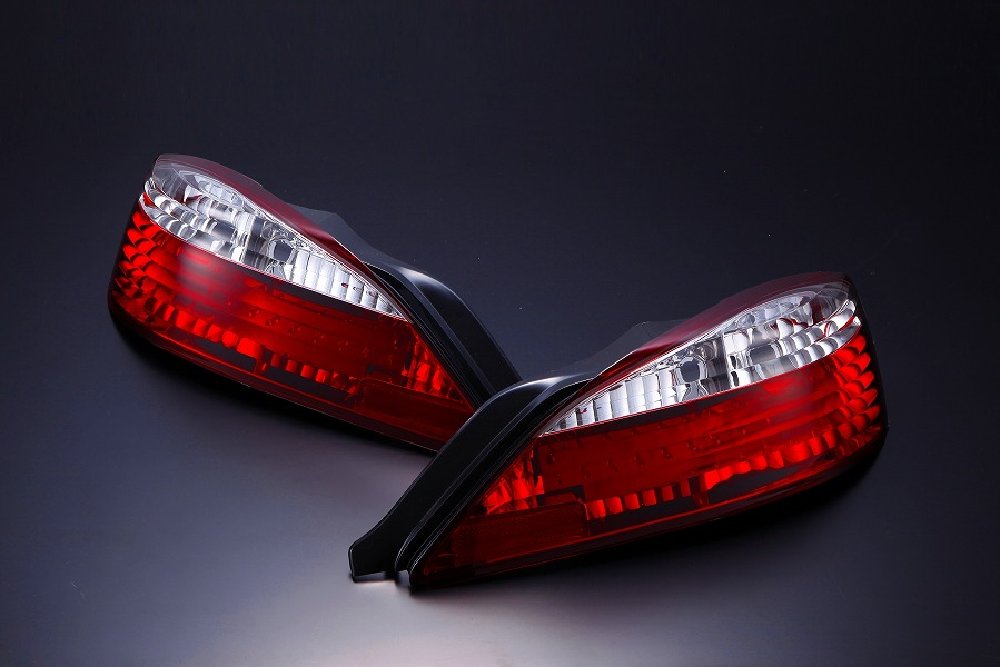

D-MAX LED Crystal Tail Lights (S15)
D-MAX LED Crystal Tail Lights (S15)
Couldn't load pickup availability
■ FitmentCompatible vehicles / chassis codes
| Silvia | S15 |
■ Material
| Acrylic resin |
*The lens scratches easily — do not wipe it with a dry cloth.
■ Specifications
| Design | Crystal |
| Turn signal section | Bulb type (please use OEM bulbs) |
| LED count (turn signal section) | T20 single / Rating: 12V 21W |
| Reverse section | Bulb type (please use OEM bulbs) |
| Reverse bulb type | T16 / Rating: 12V 16W (18W) |
| Tail & stop section | LED type |
| LED count (tail lamp section) | 35 per side / 70 total |
■ Installation
| Uses the OEM connectors. |
*Perform replacement according to the Nissan service manual.
*Lighting such as tail lamps is strictly regulated for color and brightness for safe vehicle operation.
Never modify the color or brightness of the lamps.
*Most water leaks are caused by an improperly installed or deteriorated seal between the body and lamp.
*Please install with a proper understanding of the role of the seal (caulking).
*Before driving, always confirm that all lights work properly.
*After installation, always confirm that all lights work properly. Keep the removed OEM lamps in a safe place.
*If the lens fogs: tail lamps are not sealed so that the air inside can ventilate. This releases heat generated by the lamp
keeps the interior of the lamp in optimal condition.
*The interior of this product is not sealed, so condensation may fog the lens during long periods of rain or high humidity. This is normal.
*Fogging will clear if left for a while. If it bothers you, disconnect the tail lamp connector on a sunny day and leave it for a while.
*The seal (caulking) between the body and lamp is a very important part for preventing water leaks.
If it shows wear or damage when removed, always replace it with a new one.
*A gap of a few millimeters between the body and this product after installation is due to body or installation tolerances and is not a defect.
