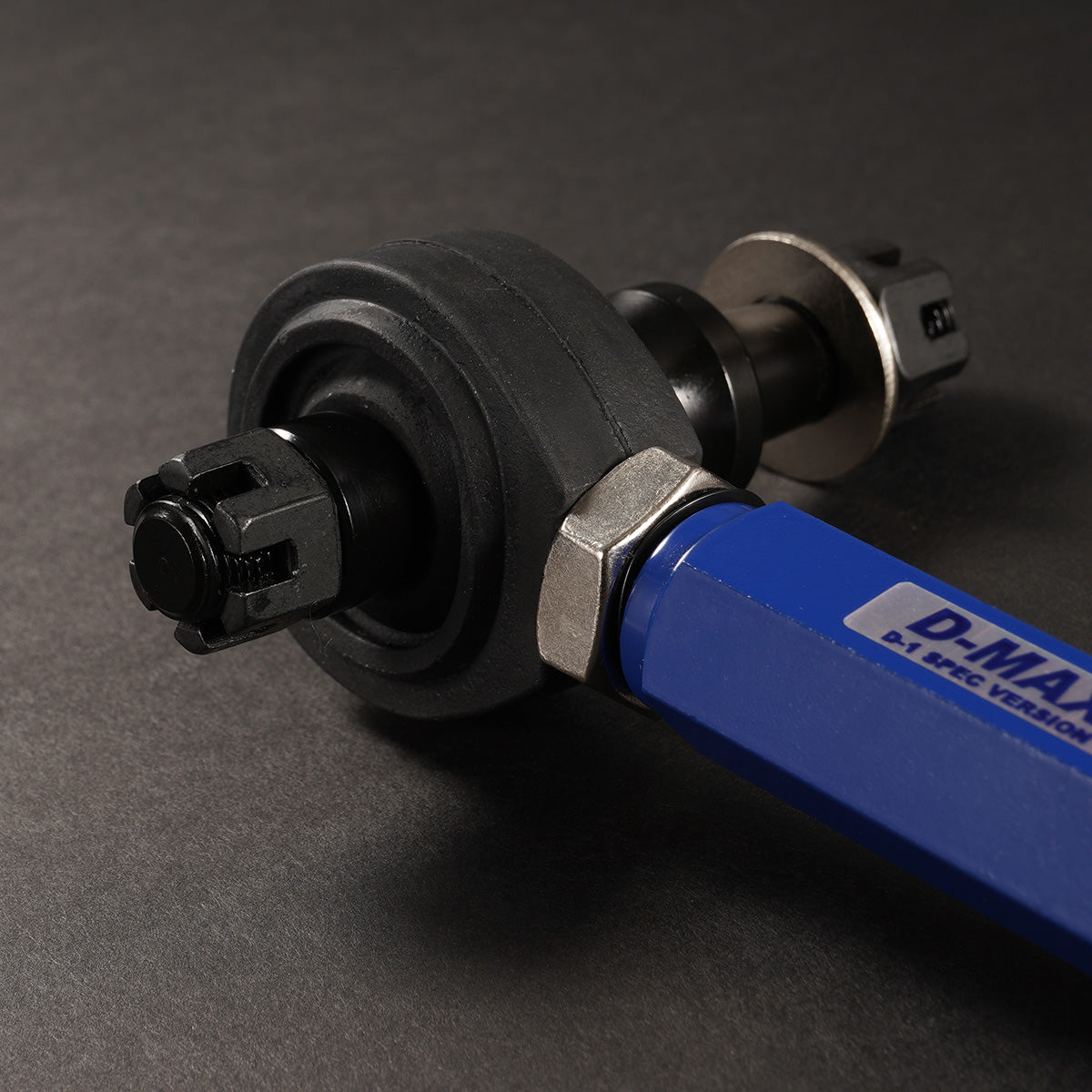

D-MAX D1SPEC Tie Rod End, Pillow Ball Type (Toyota 86/GR86/BRZ)

Improves steering response and front tire feel. Setting it correctly also reduces load on the tie rods. Since drift setups change to suit each course, converting to pillow balls adds strength and keeps geometry correct.

Co-developed with Kawabata, who drives an 86 as his personal car, does demo runs for TOYO Tires and competes in the D1 GRAND PRIX series in a GR86.

Product specifications

Pillow ball outer diameter	39Ф
Pillow ball inner diameter	14Ф
Rod diameter	21mm
Rod length	Same as OEM

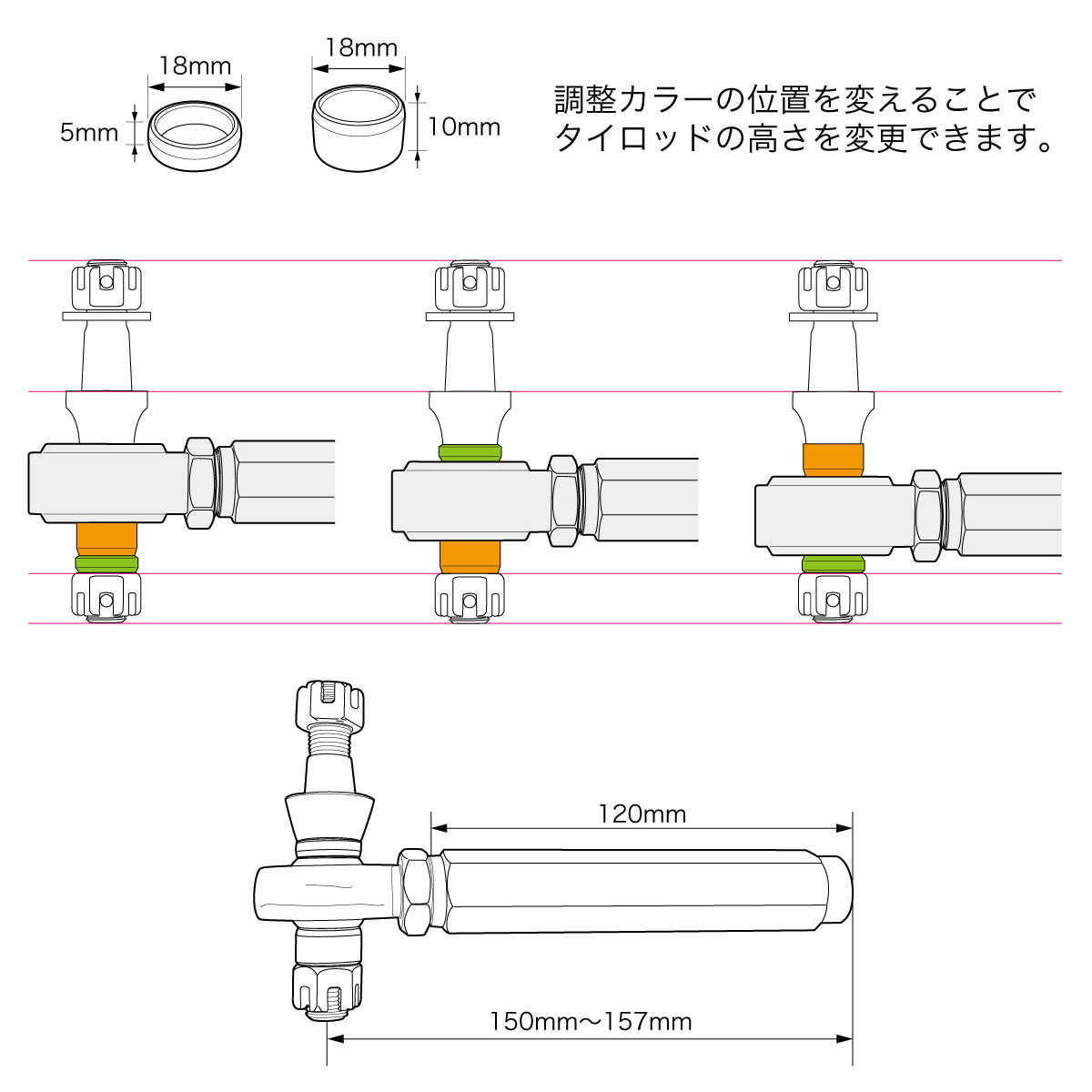

Roll center adjustment range	Height adjustable from 0mm to 15mm (using the included washers)
Adjustment method	Turnbuckle type
Adjustment thread pitch	1.5mm
Adjustment range	7mm
Adjustment pitch	1.5mm

Material

Rod section	Duralumin 6061-T6

Included accessories

Nut	4 pcs
Cotter pin	4 pcs
Roll center adjustment collar	2 large / 2 small
Pillow ball rubber cover	2 pcs (standard equipment)

Compatible chassis codes

86/GR86	ZN6/ZN8
BRZ	ZC6 / ZD8 *Does not fit ZD8 with aluminum knuckles

*Varies by vehicle, but can only be installed when used together with our tie rods.
*On vehicles with OEM knuckles, proper alignment may not be achievable.
