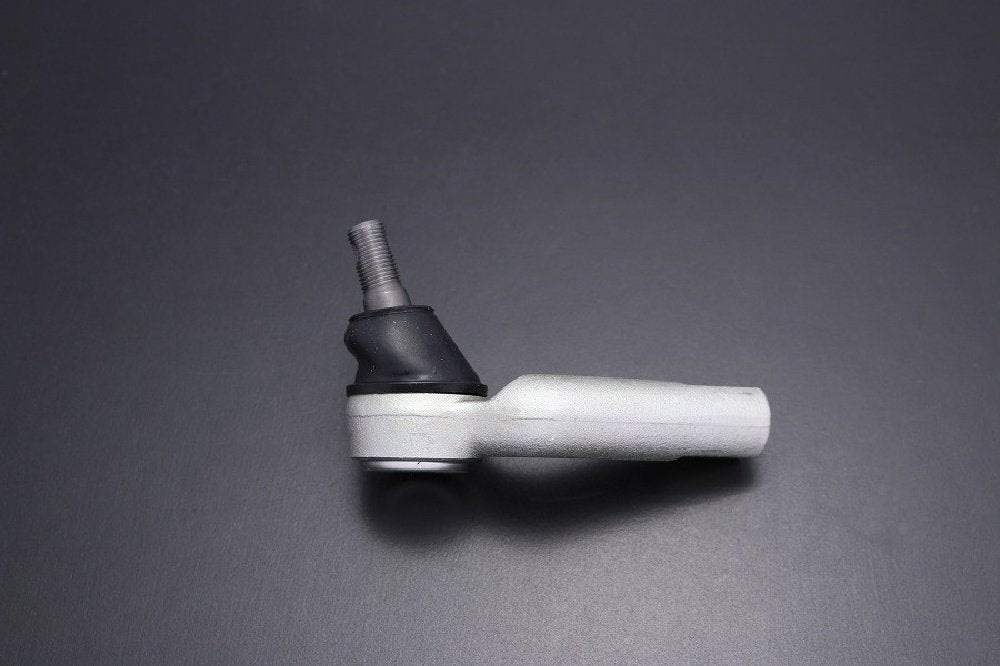

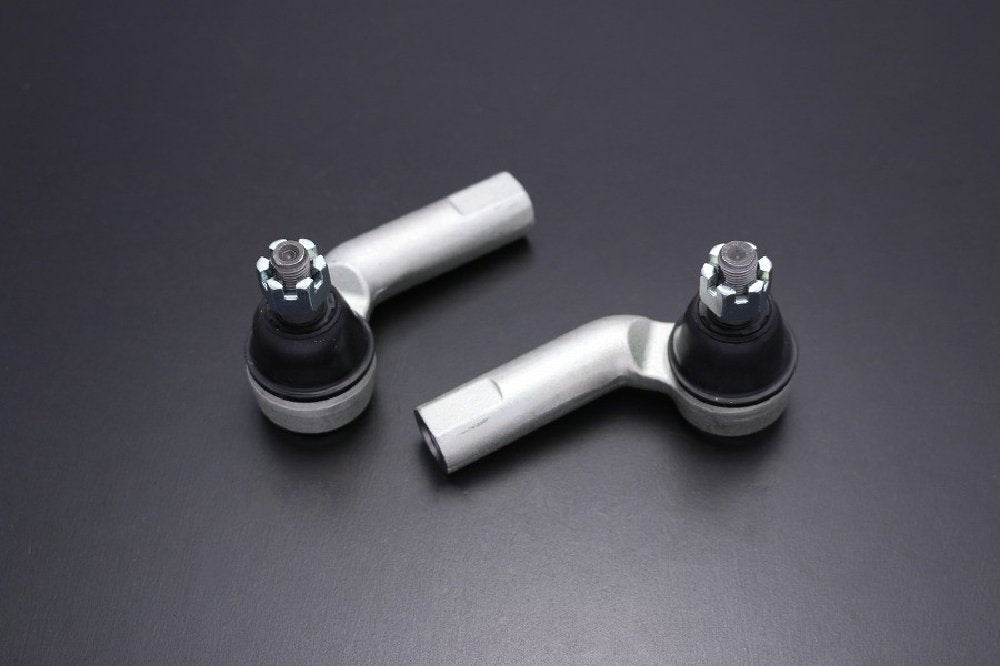

D-MAX D1SPEC Tie Rod End, Offset Version (S14 Chassis)

D-MAX D1SPEC Tie Rod End, Offset Version (S14 Chassis)

Regular price $108.99 USD
Regular price Sale price $108.99 USD
Sale Sold out
Shipping calculated at checkout.

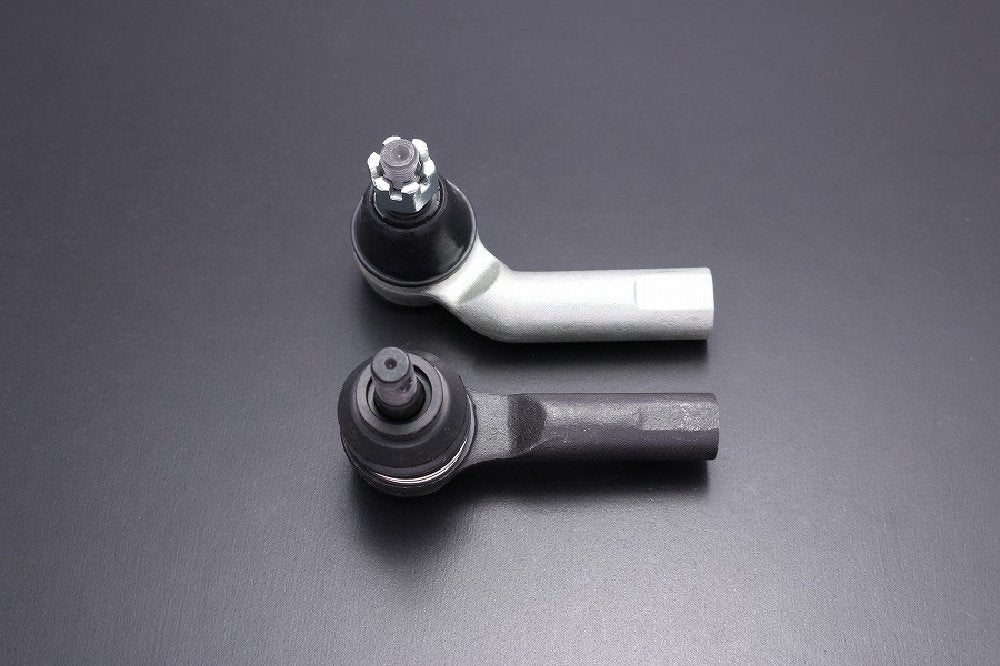

The maximum steering angle of drift cars keeps increasing. The offset tie rod end greatly reduces the problem of the steering not returning smoothly when you hit full lock while drifting.

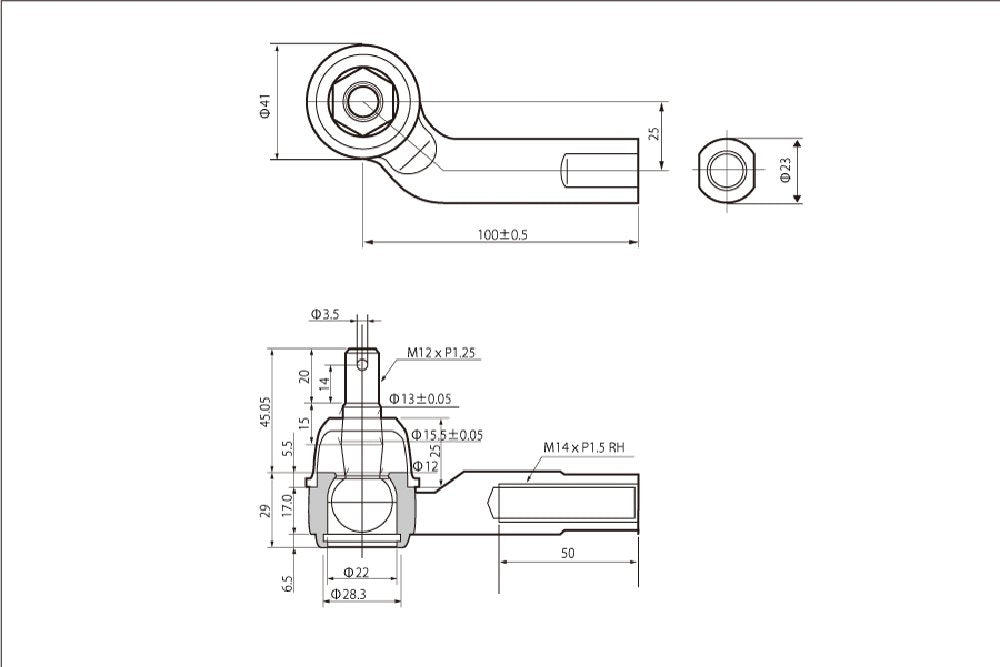

■Specifications


Rod diameter 23Ф
Adjustment pitch / S14 series 1.5mm

■ Material


Main body S45C

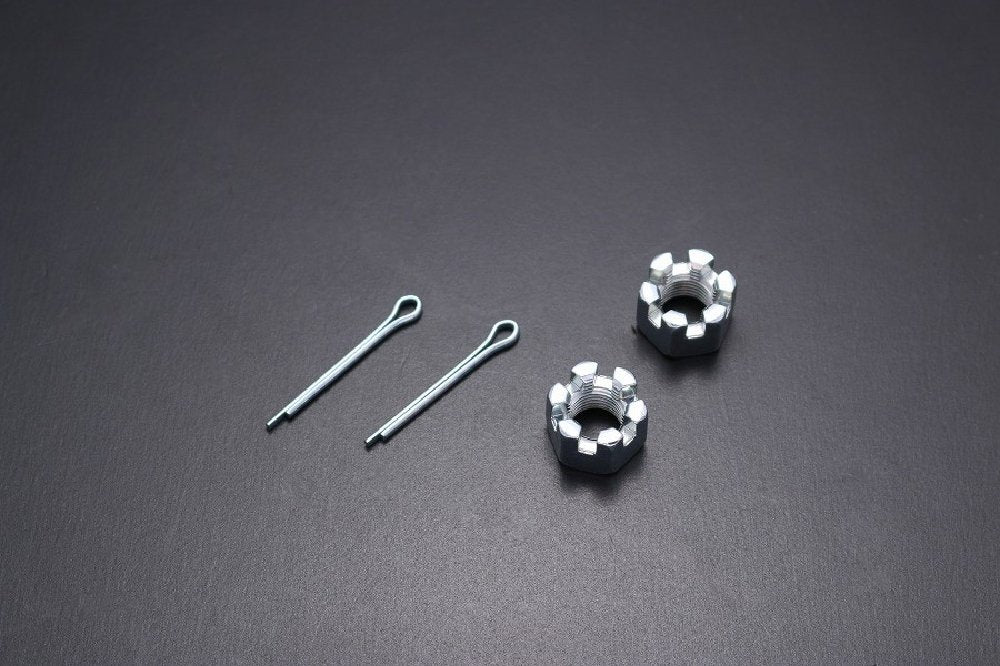

■ Included accessories


Nut 2 pcs
Cotter pin 2 pcs

■ Compatible chassis codes


Compatible (M14) S14 / S15 (with HICAS)
A31/C33/ECR33/ER34/C34/C35/HCR32
Not compatible (M12) S13 series (M12): (R)PS13 / S15 (without HICAS)

*Because it is offset, this product places greater load on the tie rods.
*Cannot be installed on OEM suspension; certain conditions are required for installation.
*Varies by vehicle, but can only be installed when used together with our tie rods.
*Required when the tie rod or tie rod end is too short, e.g. with short knuckles or extended lower arms.
*On vehicles with OEM knuckles and OEM front lower arms, proper alignment may not be achievable.
