D-MAX D1SPEC Tie Rod End, Ball Joint Type

D-MAX D1SPEC Tie Rod End, Ball Joint Type

$54.99 USD
$54.99 USD
Sale Sold out
Shipping calculated at checkout.
Vehicle

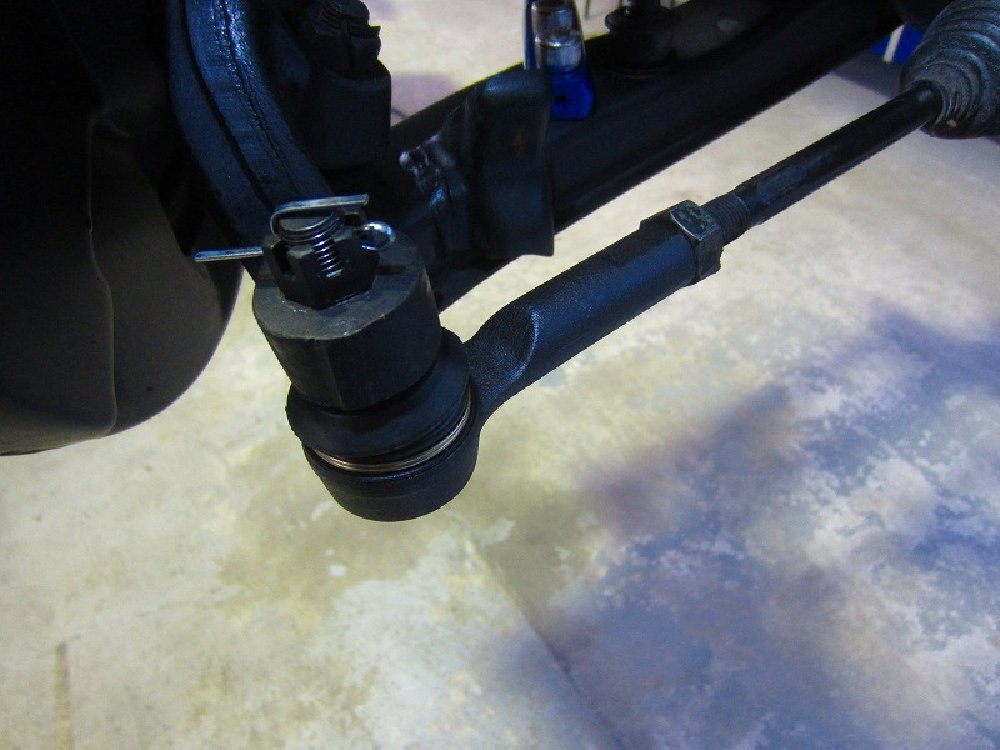

The tie rod end plays the critical role of connecting the knuckle to the steering gearbox. Ball joints rely on grease inside the boot for smooth movement and protection. This Ball Joint Type tie rod end uses a reinforced boot, refreshing the steering while keeping a neutral, stock-like feel.

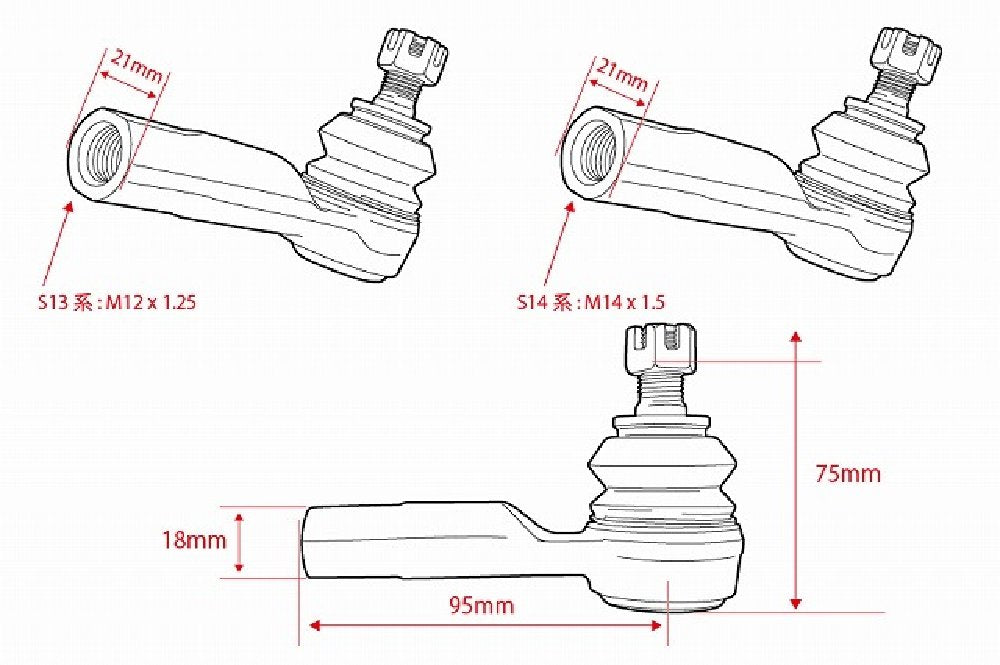

■ Specifications


Rod diameter 22Ф
Rod length Same as OEM
Adjustment pitch / S13 series 1.25mm
Adjustment pitch / S14 series 1.5mm

■ Material


Main body S45C

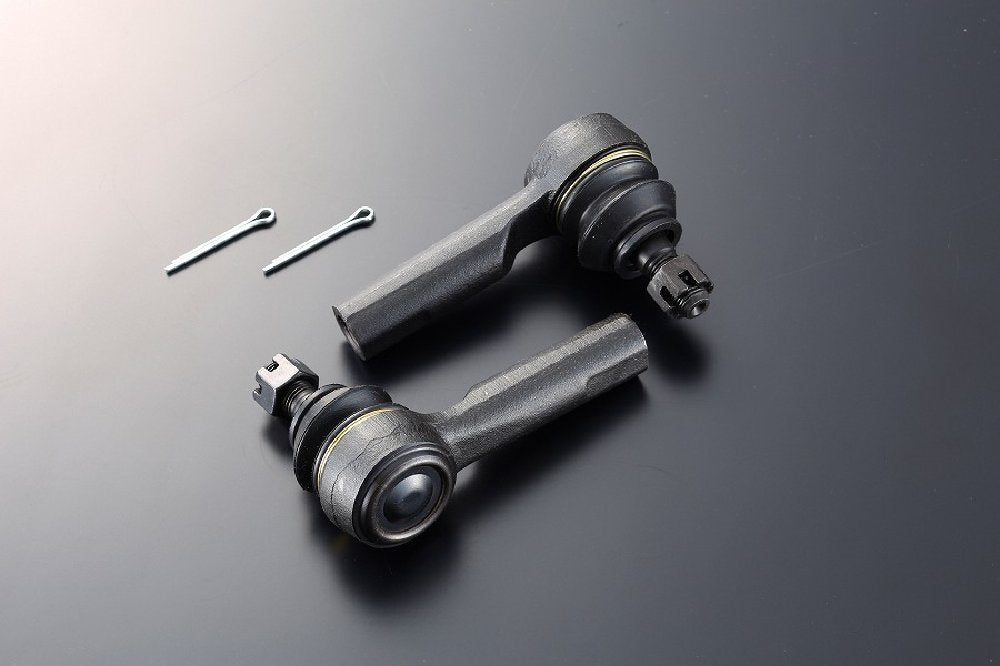

■Included accessories


Nut 2 pcs
Cotter pin 2 pcs

■Compatible chassis codes


S13 series (M12) (R)PS13 / S15 (without HICAS)
S14 series (M14) S14 / S15 (with HICAS) / A31 / C33 / ECR33 / ER34 / C34 / C35 / HCR32

*Please check the thread diameter.
*Uses reinforced bellows bushings.
*Depending on the knuckle used, it may interfere with the folded edge of the OEM lower arm.
*Interfering areas must be modified. When fitting to A31/C33/C34/C35/HCR32/ECR33/ER34, pay attention to the tie rod combination.
