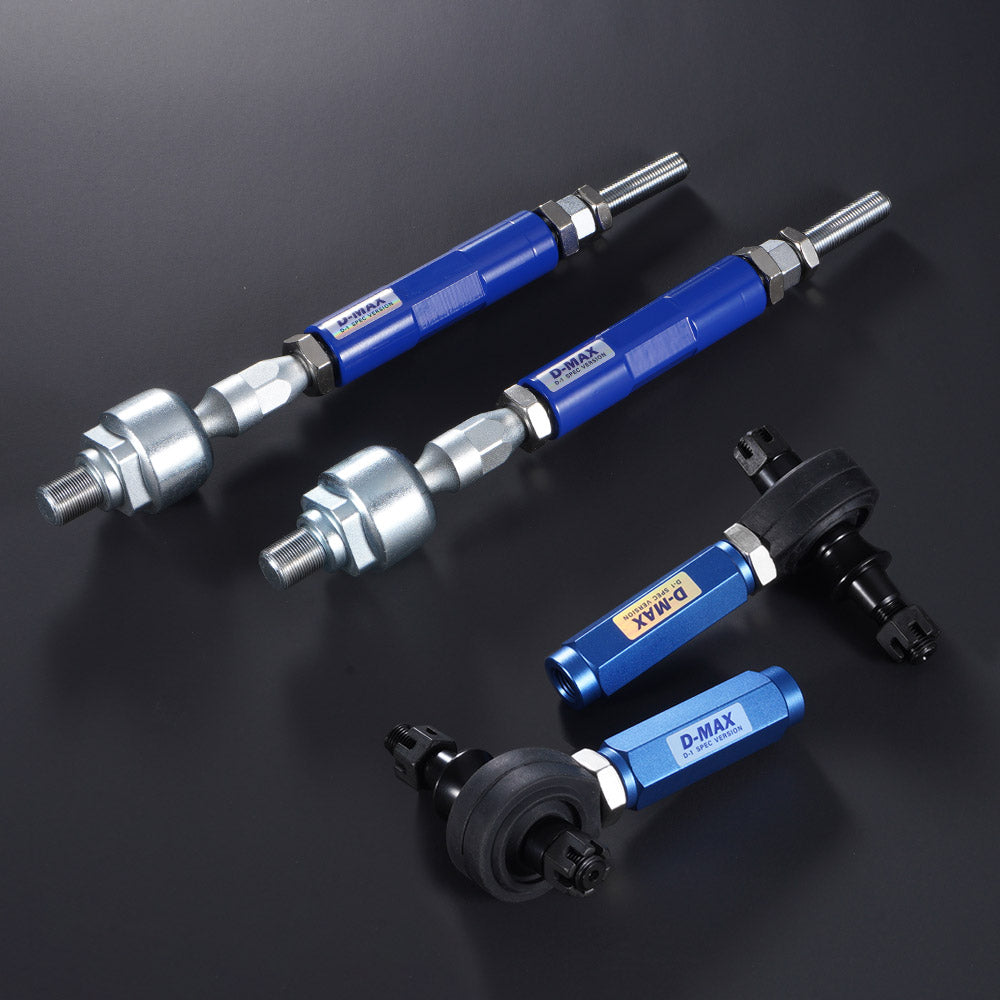

The D1SPEC Reinforced Tie Rod Type R offers a much wider adjustment range than our previous reinforced tie rod, so it works with extended lower arms or short knuckles without any additional parts. It also fits vehicles with OEM knuckles. Many reinforced tie rods increase steering angle by adding a spacer, but the D-MAX part is machined as a single piece, increasing both strength and steering angle.

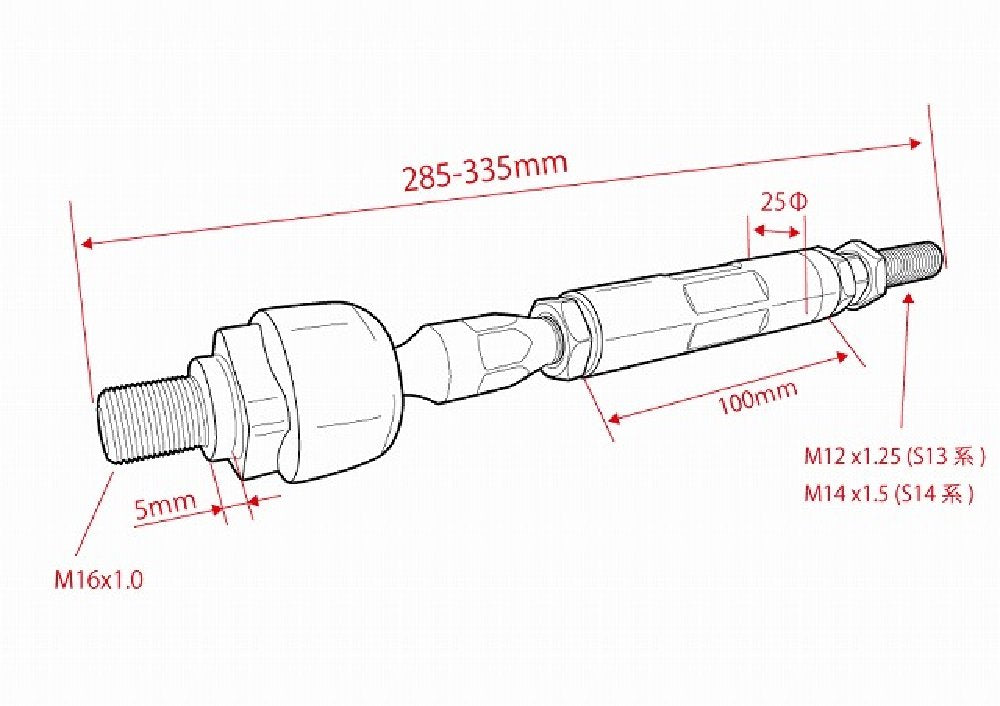

Specifications
Rod diameter
25Ф
Thread pitch
1.5mm
*Greatly increased steering angle vs. OEM — equivalent to a 5mm washer *When installing this product, make adjustments on the rack side.
Improves steering response and front tire feel. Setting it correctly also reduces load on the tie rods. Since drift setups change to suit each course, converting to pillow balls adds strength and keeps geometry correct.
Specifications
Pillow ball outer diameter
39Ф
Pillow ball inner diameter
14Ф
Rod diameter
24Ф
Rod length
Same as OEM

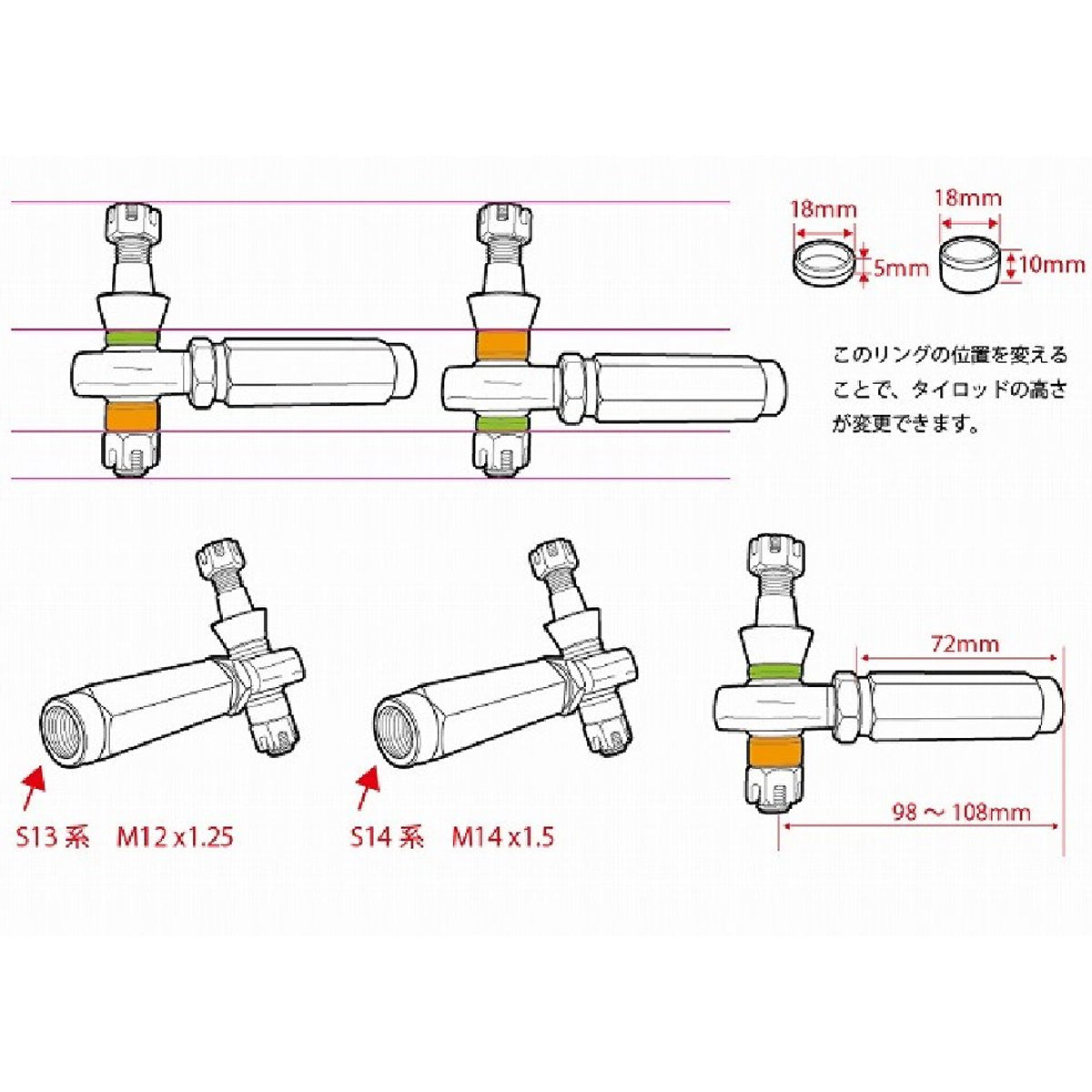

Roll center adjustment range
Height adjustable from 0mm to 15mm (using the included washers)
*Varies by vehicle, but can only be installed when used together with our tie rods. *On vehicles with OEM knuckles, proper alignment may not be achievable.
