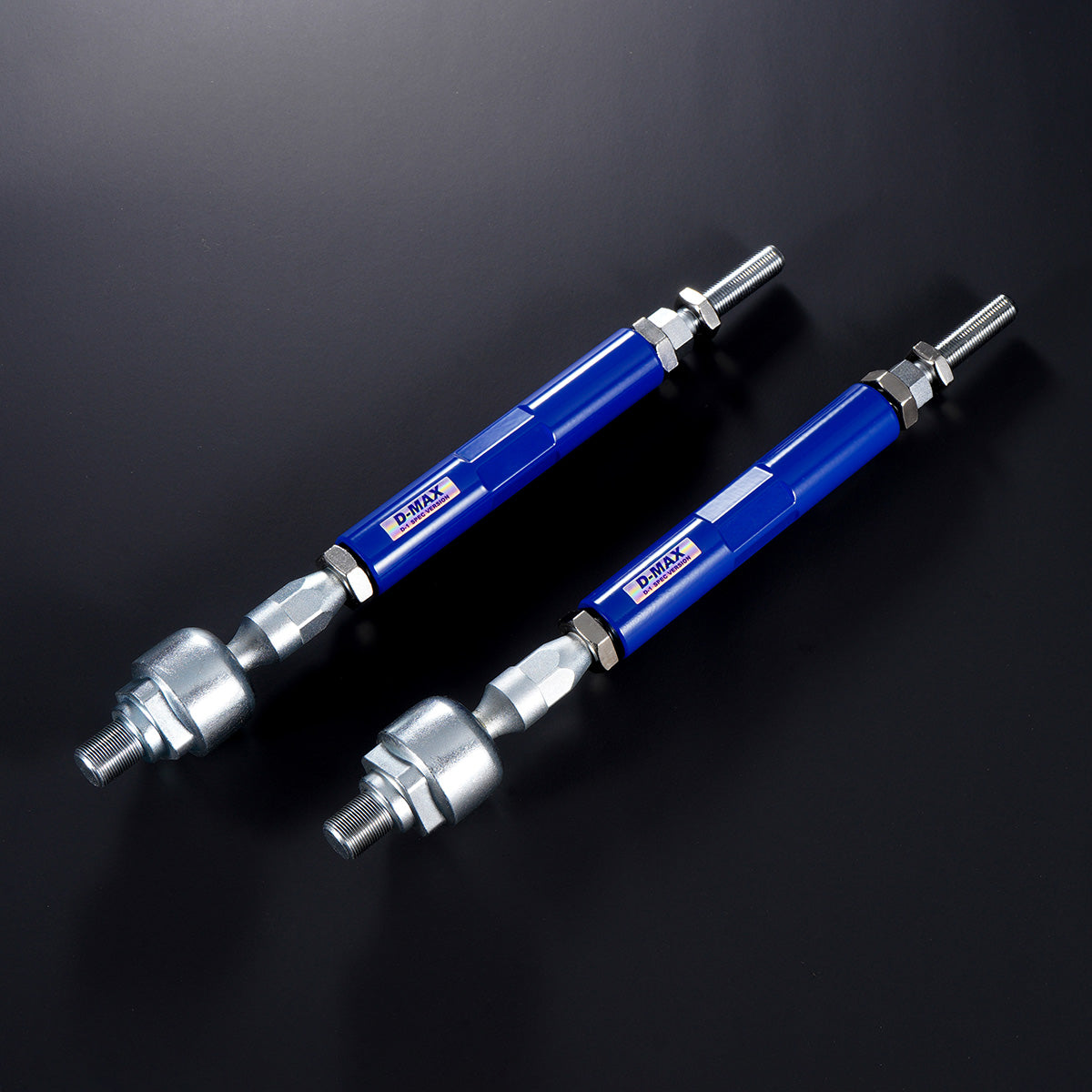

D-MAX D1SPEC Reinforced Tie Rod Type R (SR Chassis), +35mm Extended

The D1SPEC Reinforced Tie Rod Type R offers a much wider adjustment range than our previous reinforced tie rod.

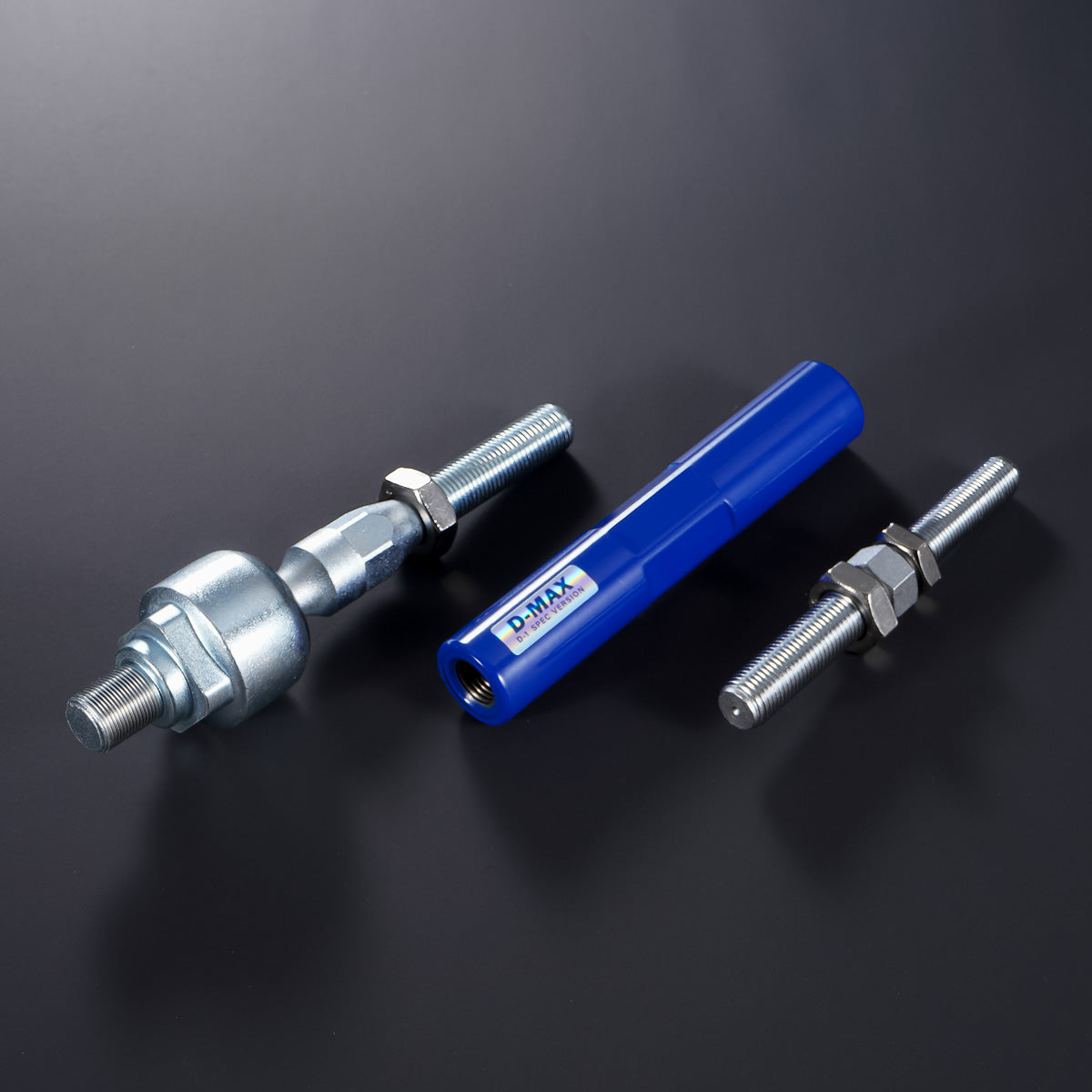

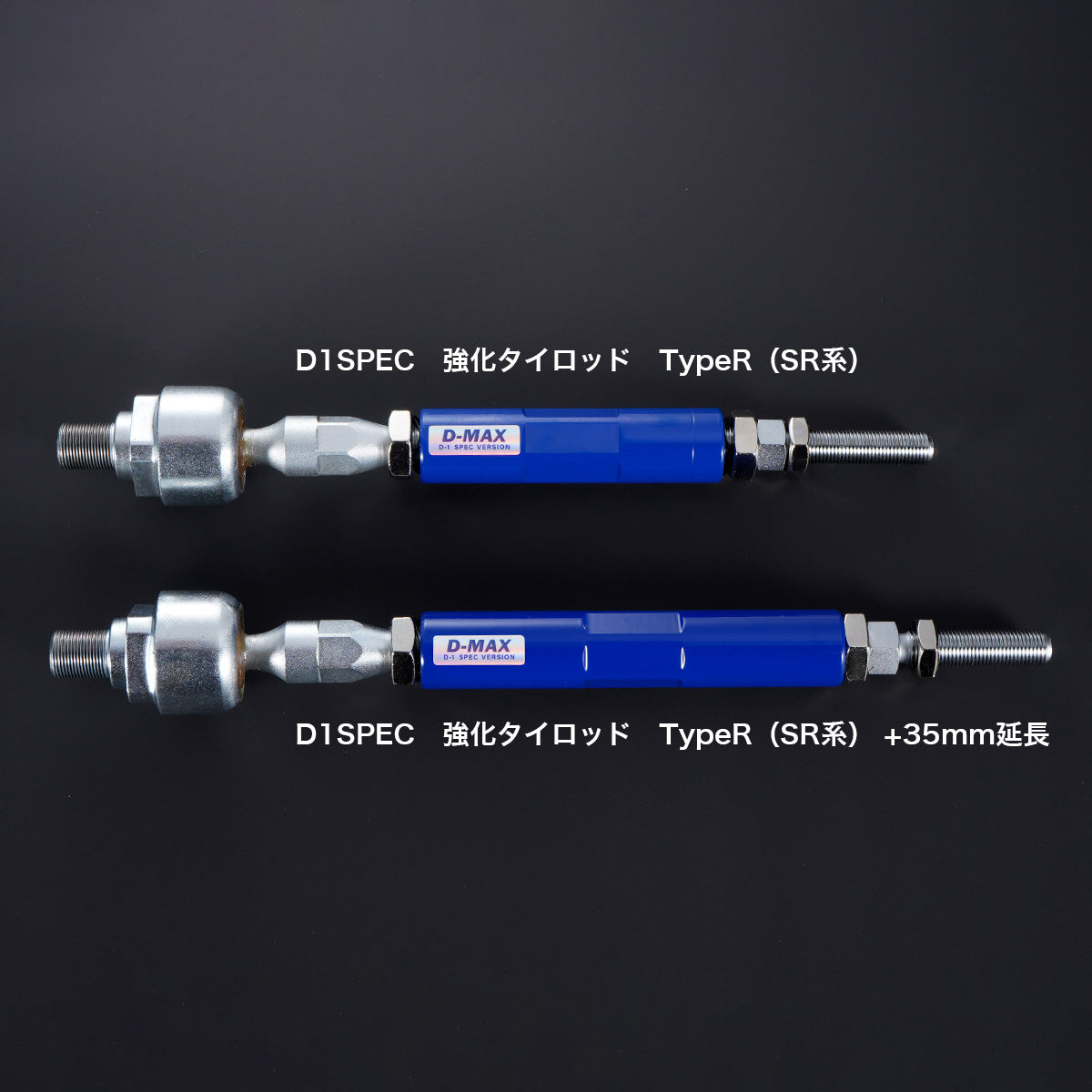

As front suspension keeps evolving, tie rod ends and tie rods are being extended, so we developed the D1SPEC Reinforced Tie Rod Type R (SR) +35mm Extended. Our existing D1SPEC Reinforced Tie Rod Type R can already extend up to 45mm more than our standard reinforced tie rod; swapping in this rod section adds another 35mm, for a maximum length of 370mm and a much wider range of front suspension setups.
In addition, many reinforced tie rods increase steering angle by adding a spacer, but the D-MAX part is machined as a single piece, increasing both strength and steering angle.

Specifications

*Greatly increased steering angle vs. OEM — equivalent to a 5mm washer

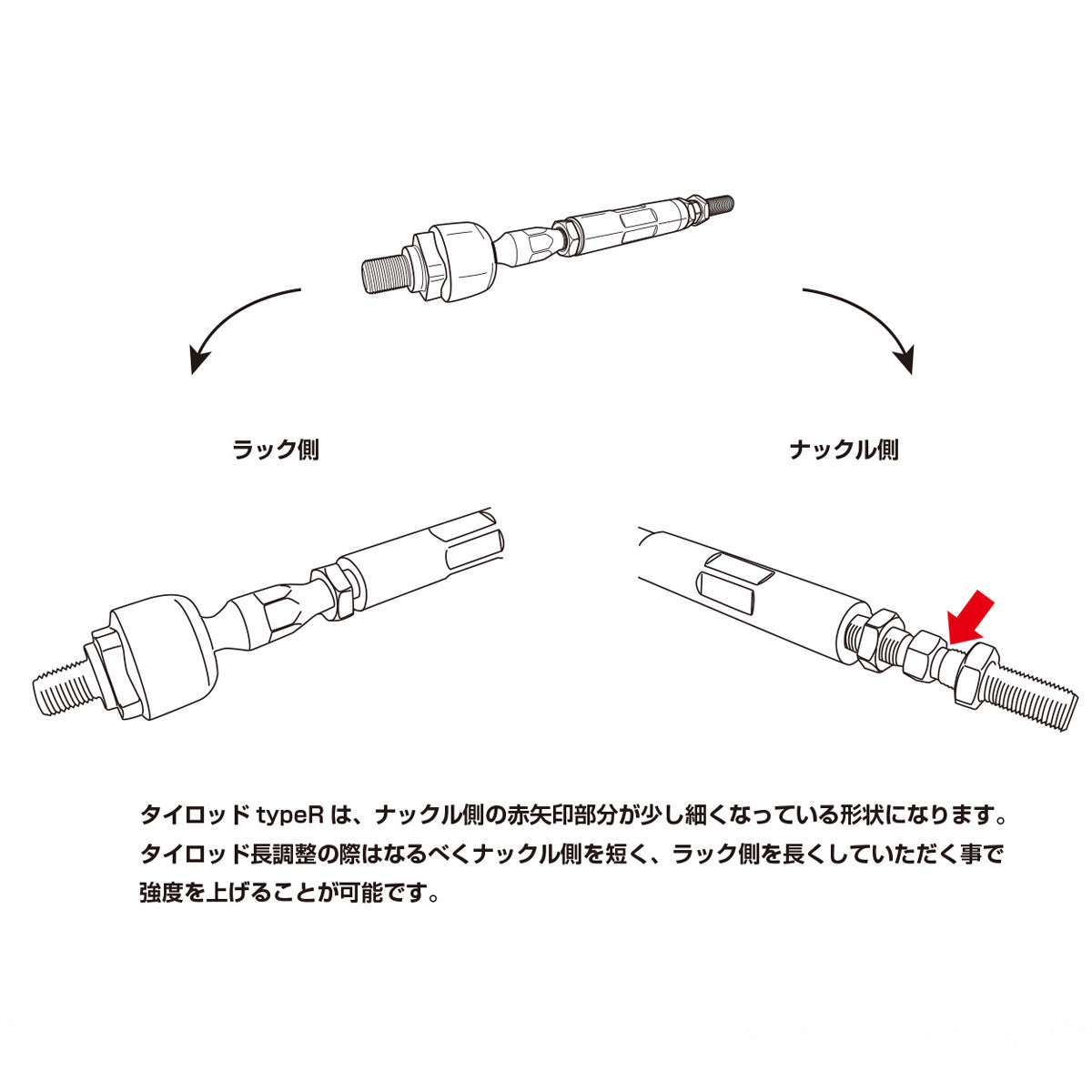

*When installing this product, make adjustments on the rack side.

Contents

Compatible chassis codes
