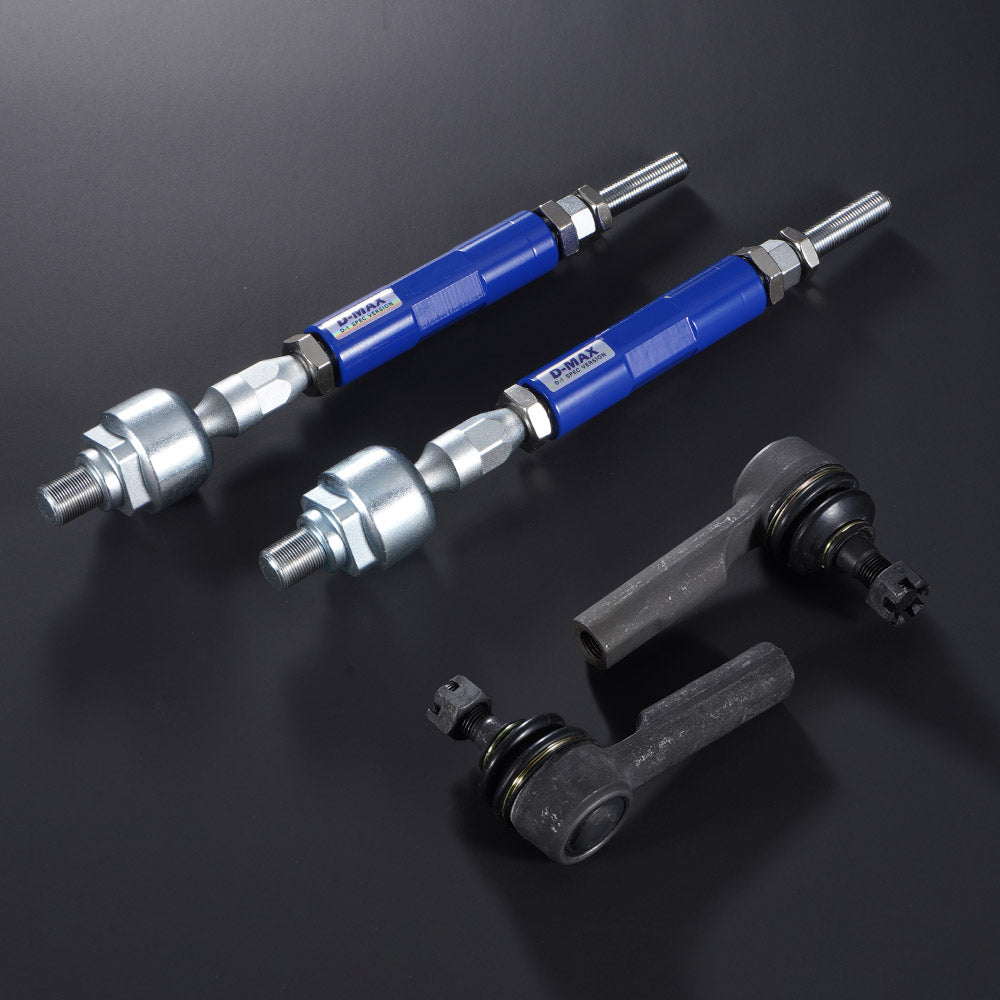

The D1SPEC Reinforced Tie Rod Type R offers a much wider adjustment range than our previous reinforced tie rod, so it works with extended lower arms or short knuckles without any additional parts. It also fits vehicles with OEM knuckles. Many reinforced tie rods increase steering angle by adding a spacer, but the D-MAX part is machined as a single piece, increasing both strength and steering angle.

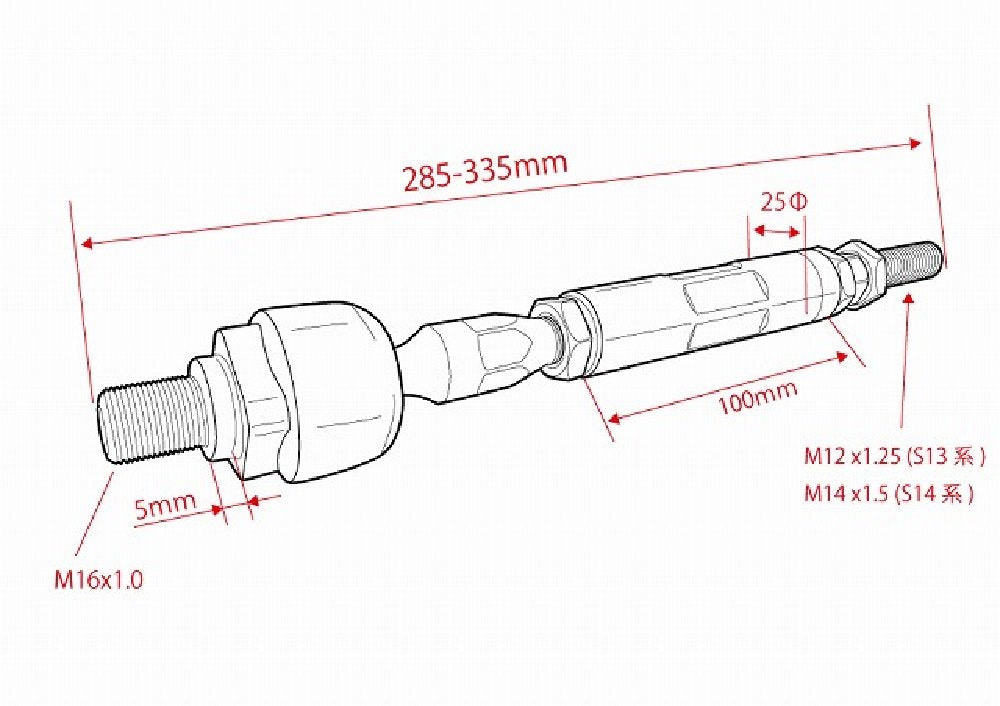

Specifications
Rod diameter
25Ф
Thread pitch
1.5mm
*Greatly increased steering angle vs. OEM — equivalent to a 5mm washer *When installing this product, make adjustments on the rack side.
The tie rod end plays the critical role of connecting the knuckle to the steering gearbox. Ball joints rely on grease inside the boot for smooth movement and protection. This Ball Joint Type tie rod end uses a reinforced boot, refreshing the steering while keeping a neutral, stock-like feel.
*Please check the thread diameter. *Uses reinforced bellows bushings. *Depending on the knuckle used, it may interfere with the folded edge of the OEM lower arm. *Interfering areas must be modified. When fitting to A31/C33/C34/C35/HCR32/ECR33/ER34, pay attention to the tie rod combination.
