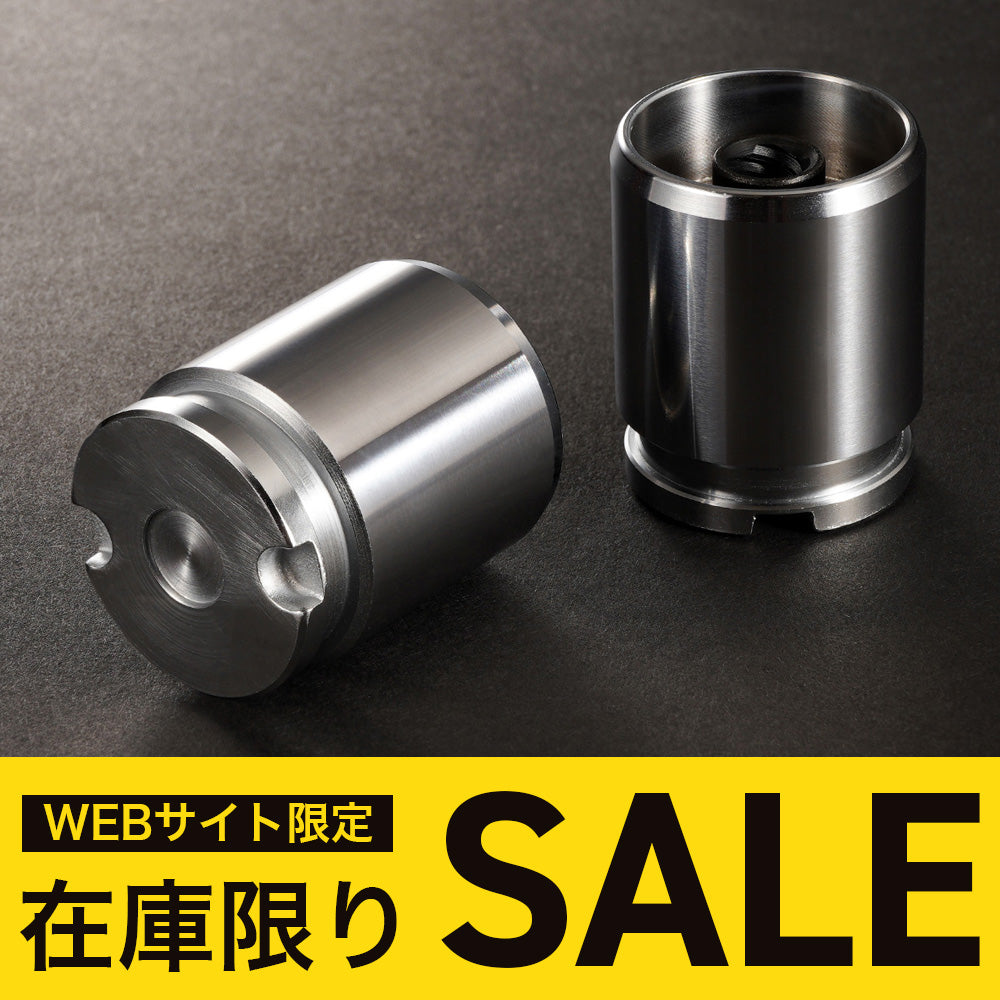

D-MAX D1SPEC Rear Brake Piston
D-MAX D1SPEC Rear Brake Piston
Couldn't load pickup availability
*This is long-term stock sold as an outlet item. It is not eligible for claims, returns or exchanges.
With the OEM part discontinued, they now cost tens of thousands of yen each, troubling many owners. After repeated testing on our test car, it's finally complete.
Many old brake pistons are seized or have peeling plating. Continuing to use them can lead to brakes that don't work or brake fluid leaks. Use these during an overhaul to restore your brakes to their best condition.
The D1SPEC Rear Brake Piston is a fully original product, so a dedicated tool is included — please install it using that tool.
Product specifications
| Overall length | 47mm (S13 / 180SX early & mid) 47mm (180SX late / S14 / S15) |
|---|---|
| Outer diameter | 32mm / 34mm (S13 / 180SX early & mid) 36mm / 38mm (180SX late / S14 / S15) |
Contents
| Left & right set | Rear brake pistons, 2 pcs Dedicated tool, 1 pc |
|---|---|
| Single (1 pc) | Rear brake piston, 1 pc Dedicated tool, 1 pc |
The dedicated tool is for installing the D1SPEC Rear Brake Piston.
The center accepts a 3/8" (9.5mm) drive socket wrench.
*Not compatible with impact wrenches.
*For the 180SX late model, use the S14/S15 version.
