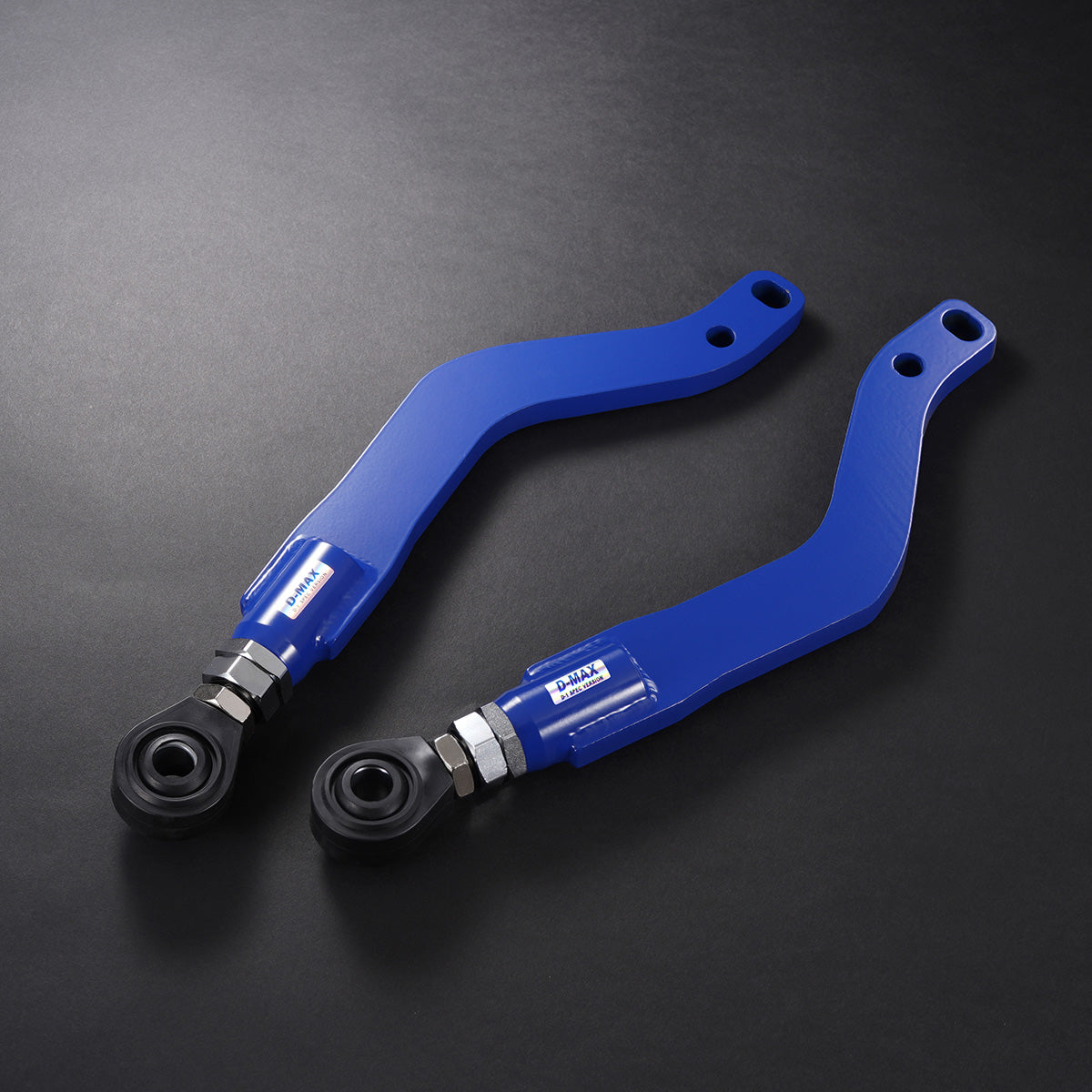

D-MAX D1SPEC Pillow Ball Tension Rod, Offset Type Ver.3
D-MAX D1SPEC Pillow Ball Tension Rod, Offset Type Ver.3
Regular price
$216.99 USD
Regular price
Sale price
$216.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

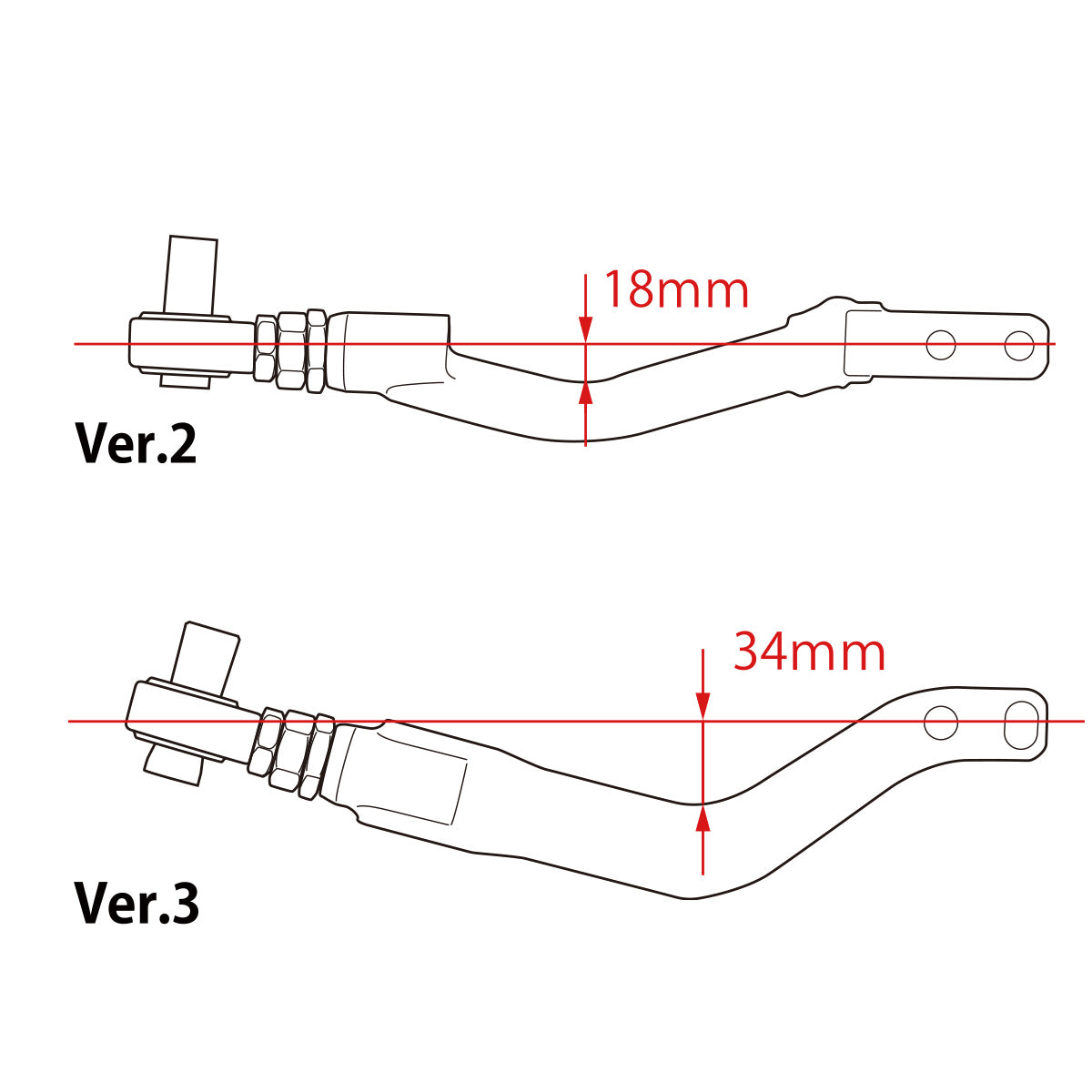

Ver.3 is designed with a shape that allows more maximum steering angle than the Ver.2 we previously sold. Ver.2 was improved many times, but with recent high-grip tires, extended lower arms and unprecedented steering angles, we developed Ver.3.
The structure itself was redesigned, increasing maximum clearance. A reinforced structure also makes it significantly stronger than Ver.2, improving durability under high loads for more stable driving.
The improved Ver.3 expands setup range beyond previous limits.
■ Specifications
| Rod diameter | 28Ф (35Ф at the widest point) |
|---|---|
| Rod thickness | ― |
| Pillow ball outer diameter | 45Ф |
| Pillow ball inner diameter | 18Ф |
| Adjustment method | Turnbuckle type |
| Adjustment thread pitch | 1.5mm |
| Adjustment range | 35mm |
*Note that the inner side of the tire (wheel) will contact the OEM sway bar before this product does.

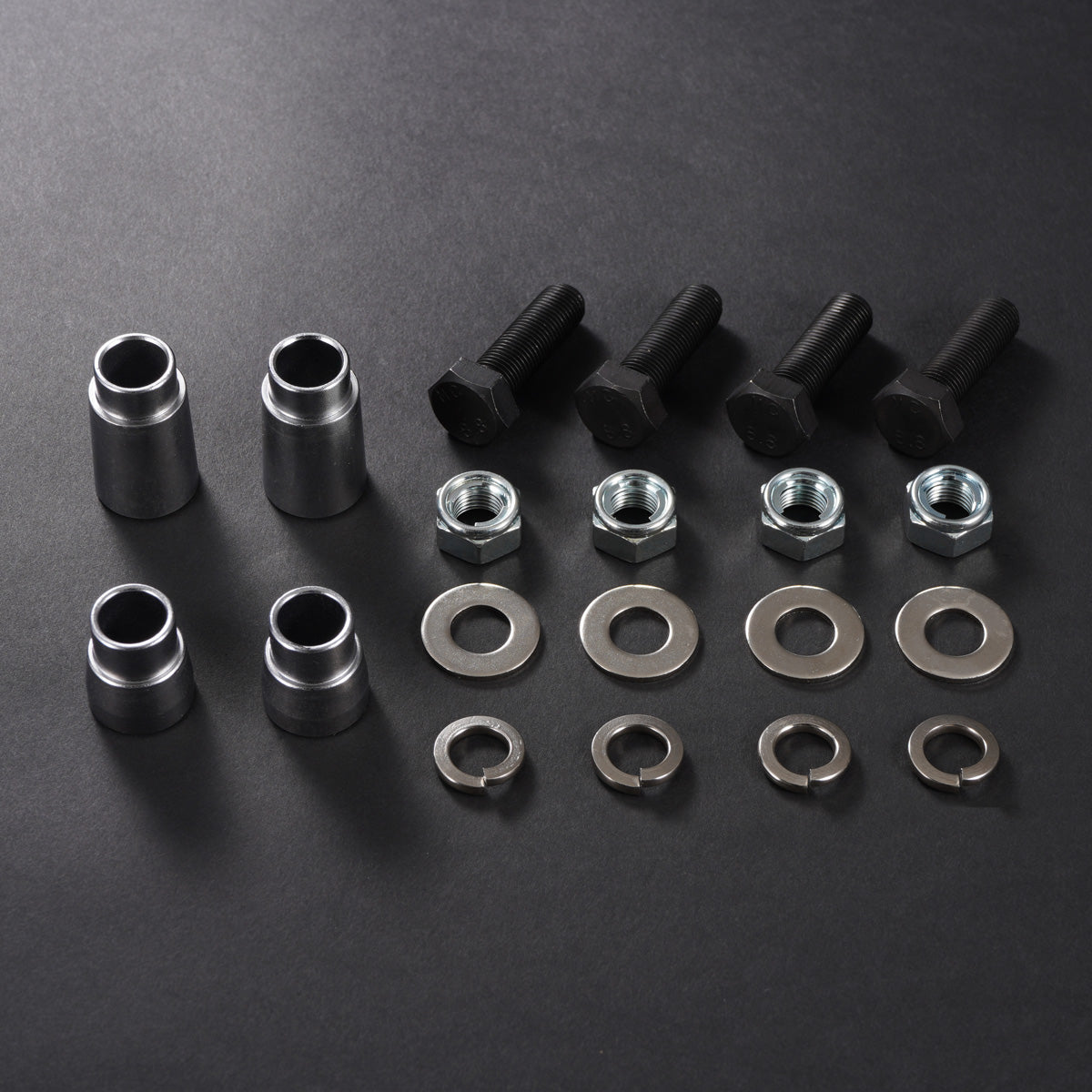

■ Included accessories
| Bolt | 4 pcs |
|---|---|
| Nut | 4 pcs |
| Collar (large) | 2 pcs |
| Collar (small) | 2 pcs |
| Pillow ball rubber collar | 2 pcs / standard equipment |
■ Compatible chassis codes
| S14 series | S14/S15/C34/C35/WGC34 |
|---|---|
| Not compatible | Not compatible with 4WD / not compatible with R33/R34 (interferes with sway bar) |
*The turnbuckle design lets you adjust length with the rod installed on the car.
