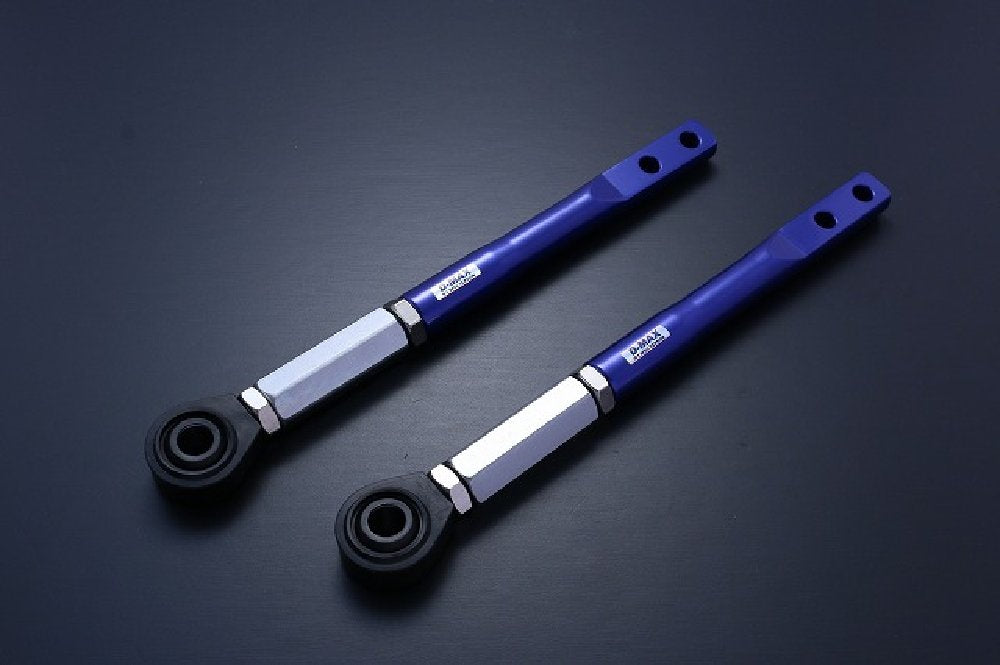

D-MAX D1SPEC Pillow Ball Tension Rod
D-MAX D1SPEC Pillow Ball Tension Rod
Regular price
$158.99 USD
Regular price
Sale price
$158.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Converting the OEM rubber bushings to pillow balls greatly improves handling. Pillow balls eliminate wasted movement from flex under braking and while drifting, increasing stability. The turnbuckle adjustment allows finer setup and helps when you need to adjust quickly. Pillow ball rubber covers come standard, greatly reducing the intrusion of gravel and debris.
■ Specifications
| Rod diameter | 28Ф |
| Pillow ball outer diameter | 45Ф |
| Pillow ball inner diameter | 18Ф |
| Adjustment range | 30mm |
| Adjustment method | Turnbuckle type |
| Thread pitch | 1.5mm |
■Included accessories
| Bolt | 4 pcs |
| Nut | 4 pcs |
| Spring washer | 4 pcs |
| Collar (large) | 2 pcs |
| Collar (small) | 2 pcs |
| Pillow ball rubber cover | 2 pcs / standard equipment |
■Compatible chassis codes
| S13 series | (R)PS13/A31/C33/HCR32/Z32/Y32/Y33 |
| S14 series | S14/S15/C34/C35/ECR33/ER34/WGC34 |
| Not compatible | HNR32 / BNR32 / BCNR33 / WGNC34 *Not compatible with 4WD |
*Applicable chassis codes are listed based on OEM lower arms.
※.
*About the included bolts
For the S13 series, bolts are a bare black finish.
For the S14 series, bolts are plated.
