D-MAX D1SPEC Pillow Ball Rear Toe Control Rod (Ver.1)
D-MAX D1SPEC Pillow Ball Rear Toe Control Rod (Ver.1)
Regular price
$158.99 USD
Regular price
Sale price
$158.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Switching to adjustable pillow ball arms corrects unstable rear suspension behavior. Adjusting toe angle lets you change the rear understeer/oversteer balance. The rod body is a turnbuckle design, so it can be adjusted after installation. Because the member side and knuckle side can be adjusted to equal length, load on the threads — the most stressed area — is reduced. Tune the car to your liking and respond quickly to sudden changes in track conditions.

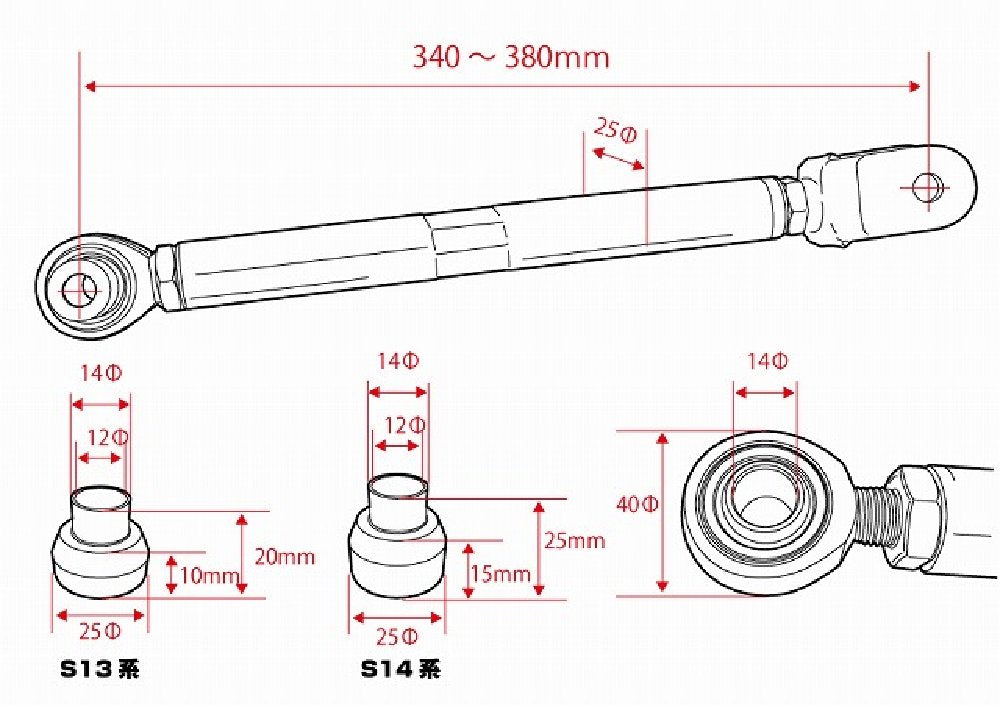

Specifications
| Rod diameter | 25Ф |
|---|---|
| Rod thickness | 6mm |

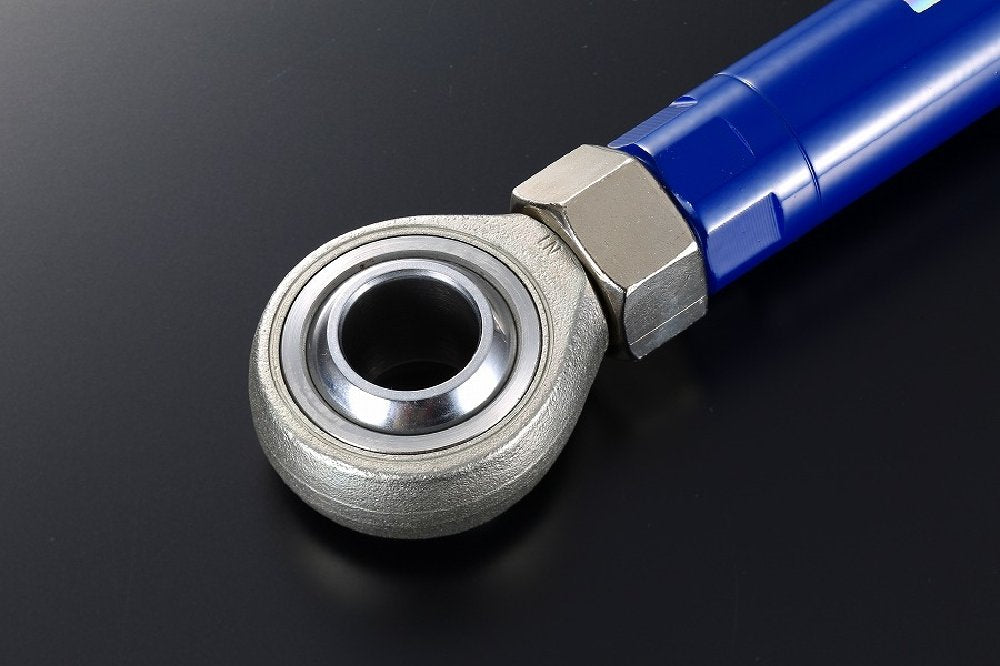

| Pillow ball outer diameter | 40Ф |
| Pillow ball inner diameter | 14Ф |
| Adjustment method | Turnbuckle type |
| Adjustment pitch | 1.25mm |
| Adjustment range | 40mm |

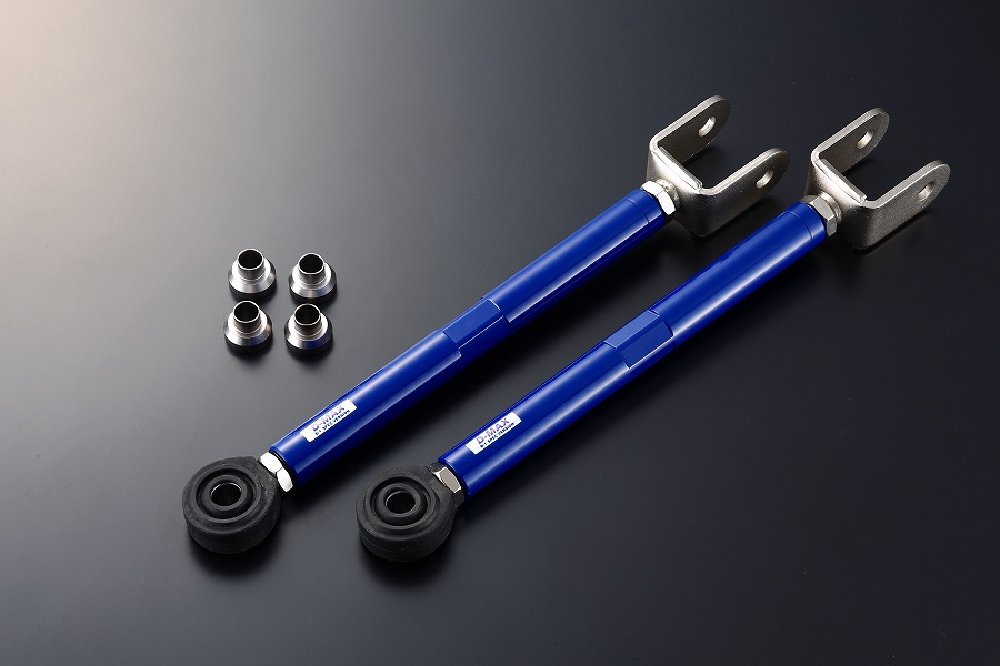

Included accessories
| Collar | 4 pcs |
|---|---|
| Pillow ball rubber cover | 2 pcs / standard equipment |
Compatible chassis codes
| S13 series | (R)PS13/A31/C33/HCR32/HNR32/Z32 |
|---|---|
| S14 series | S14 / S15 / ECR33 / ER34 / C34 / C35 / WGC34 / WGNC34 / C34 Laurel / Y32 / Y33 |
| Not compatible | HCR32 with ABS / with HICAS |
*A set price is available when purchasing the D1SPEC Pillow Ball Rear Upper Arm, D1SPEC Pillow Ball Traction Rod and D1SPEC Pillow Ball Rear Toe Control Rod together.
