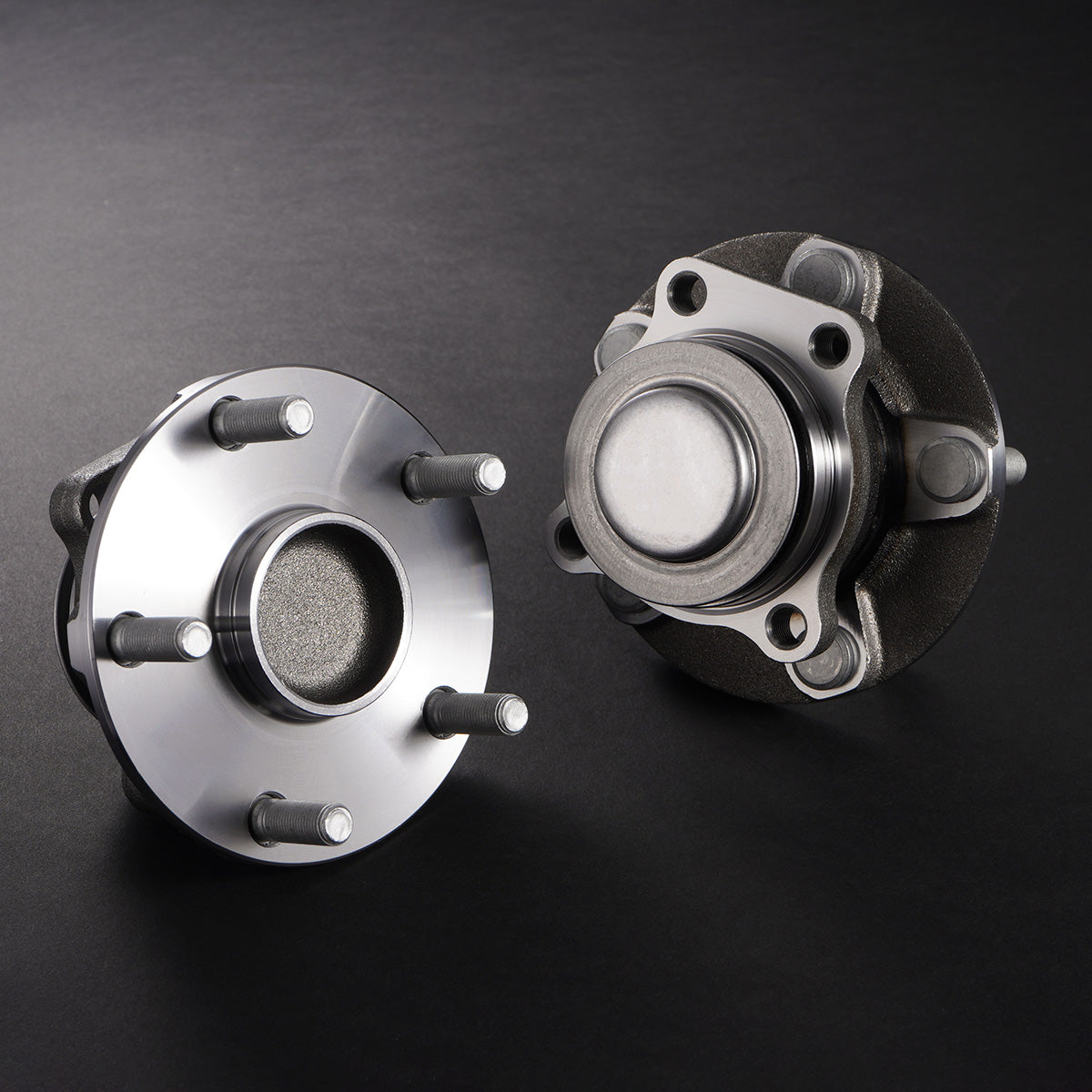

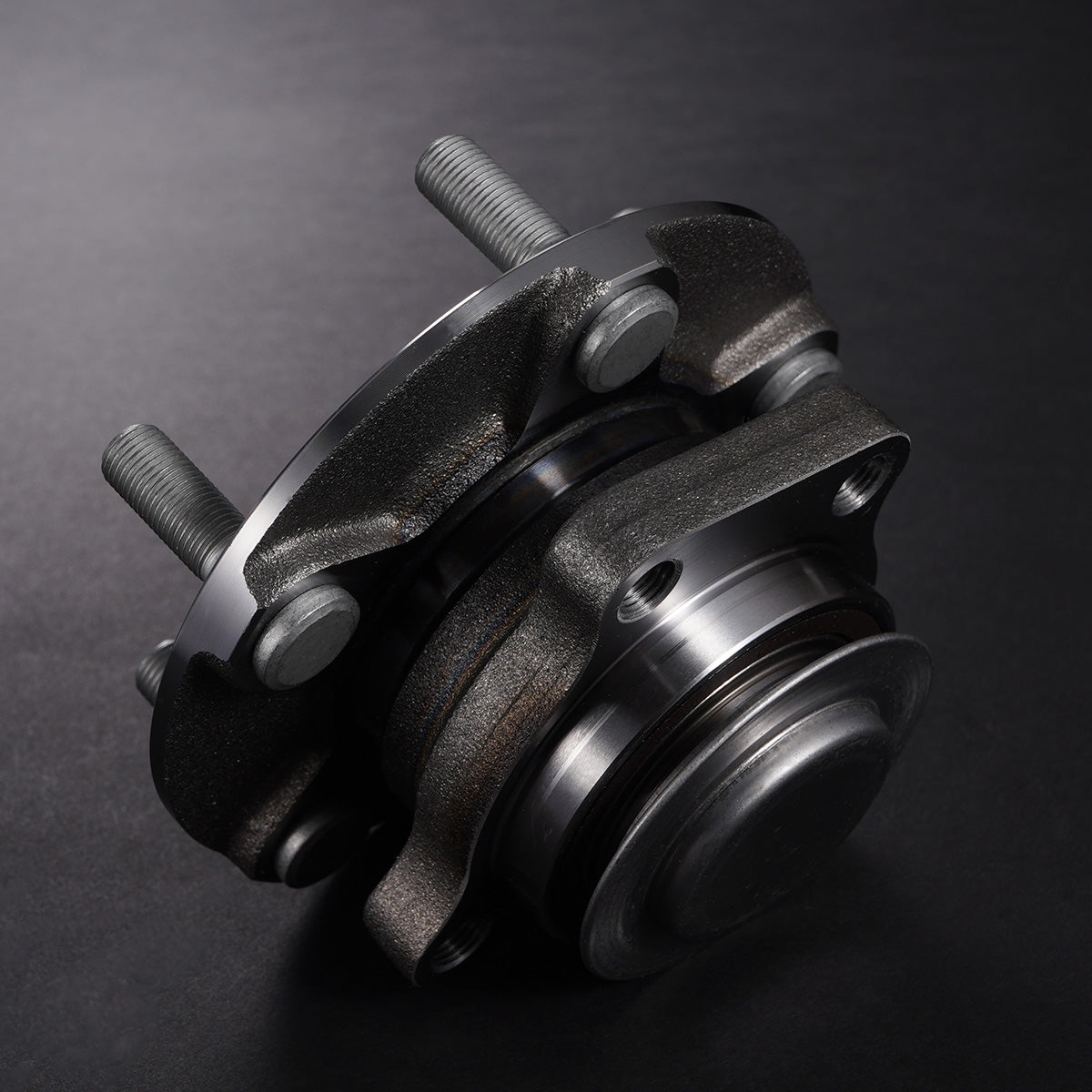

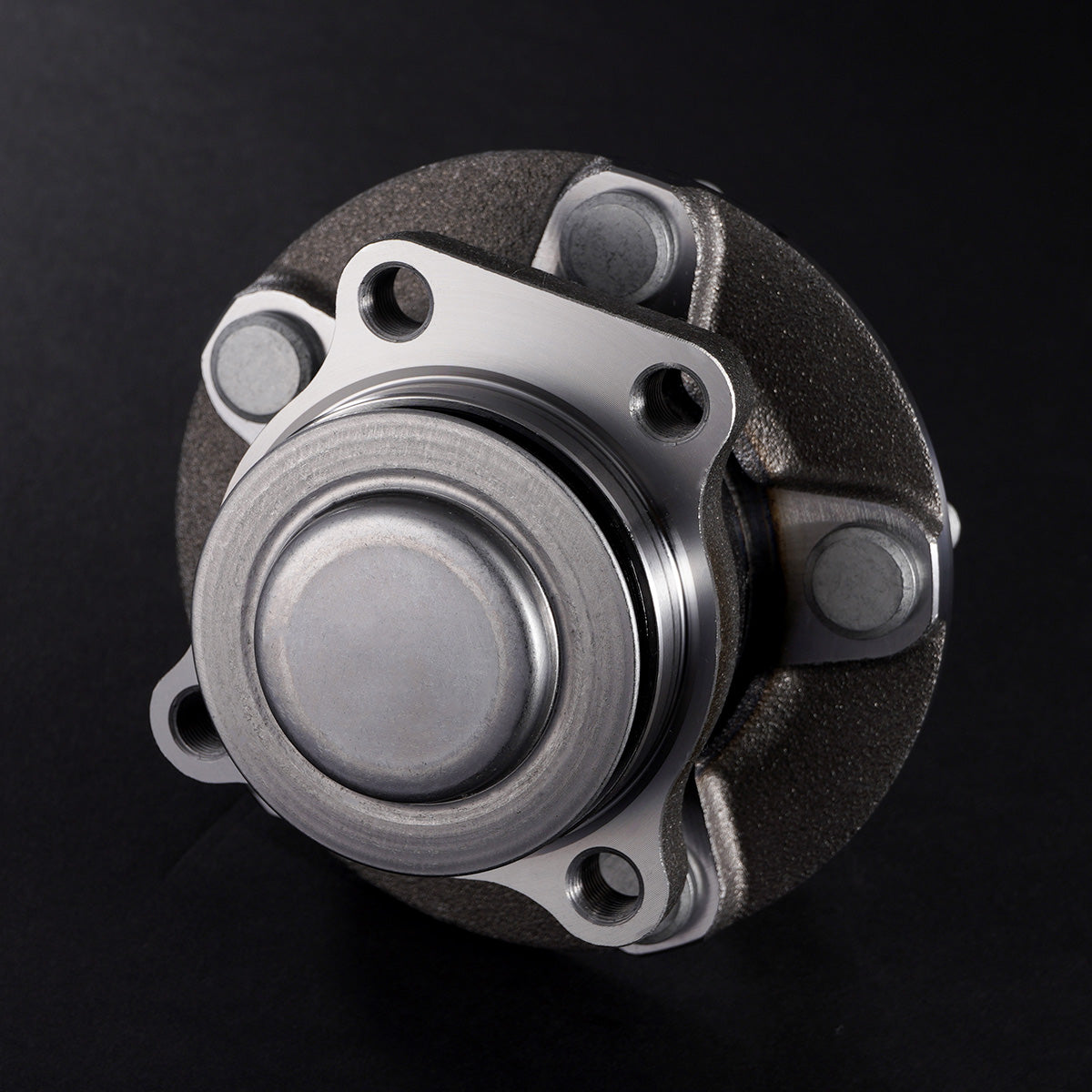

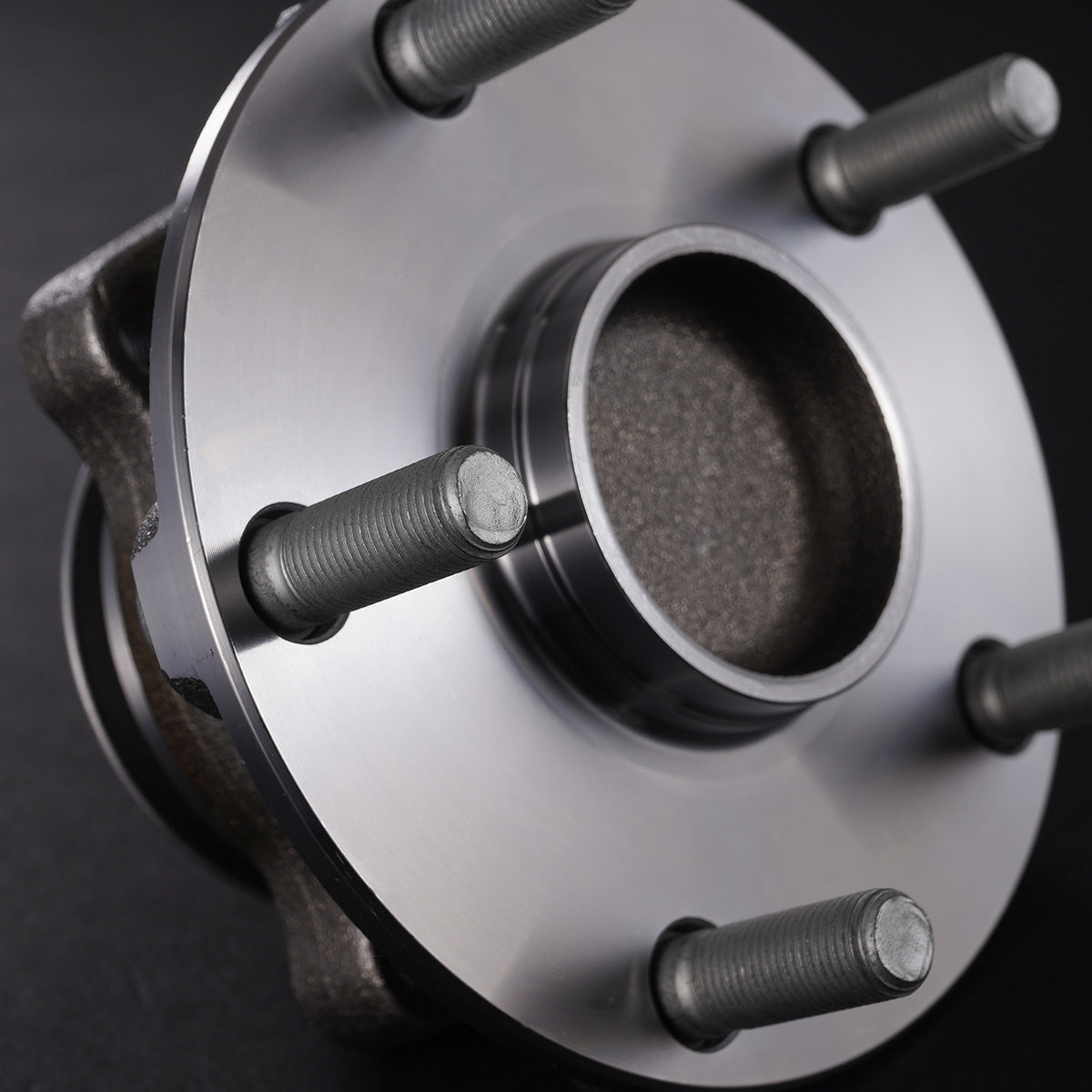

D-MAX D1SPEC Front Hub Unit 5x114.3 (86/GR86/BRZ)
D-MAX D1SPEC Front Hub Unit 5x114.3 (86/GR86/BRZ)
Couldn't load pickup availability
A hub unit for anyone struggling to find wheels. The D1SPEC Front Hub Unit was created to solve the problem of limited wheel choices with the 5x100 PCD.
Switching from 100 PCD to 114.3 PCD dramatically expands your wheel choices — ideal if you care about design, light weight or brand.
Built with high-precision machining, maintaining OEM quality while ensuring strength and durability. Suitable for everything from daily driving to the circuit.
Specifications
| P.C.D | Converts 5x100 to 5x114.3 |
|---|---|
| Hub bolt effective thread length | 26.0mm |
| Hub bolt thread pitch | M12×1.25mm |
| Hub bolt serration diameter | 14.3mm |
Compatible vehicles / chassis codes
| 86/GR86 | ZN6/ZN8 |
|---|---|
| BRZ | ZC6 (ZD8 unconfirmed) |
*ABS operation confirmed
*Installing this product requires changing to 114.3 PCD brake rotors. 114.3 rotors from the GDB Impreza Spec C (E-type onward) can be used, but the rotor hat interferes with the caliper, so either grind the caliper or use the Impreza caliper as well.
Notes
Competition use only. This product is a competition part intended for closed courses such as race tracks, or for display. Use on public roads may not comply with vehicle safety and emissions regulations. If used on public roads, it is the purchaser's responsibility to ensure the vehicle complies with all applicable laws. The purchaser assumes full responsibility for the use, installation and maintenance of this product, and for any damage resulting directly or indirectly from its use.
