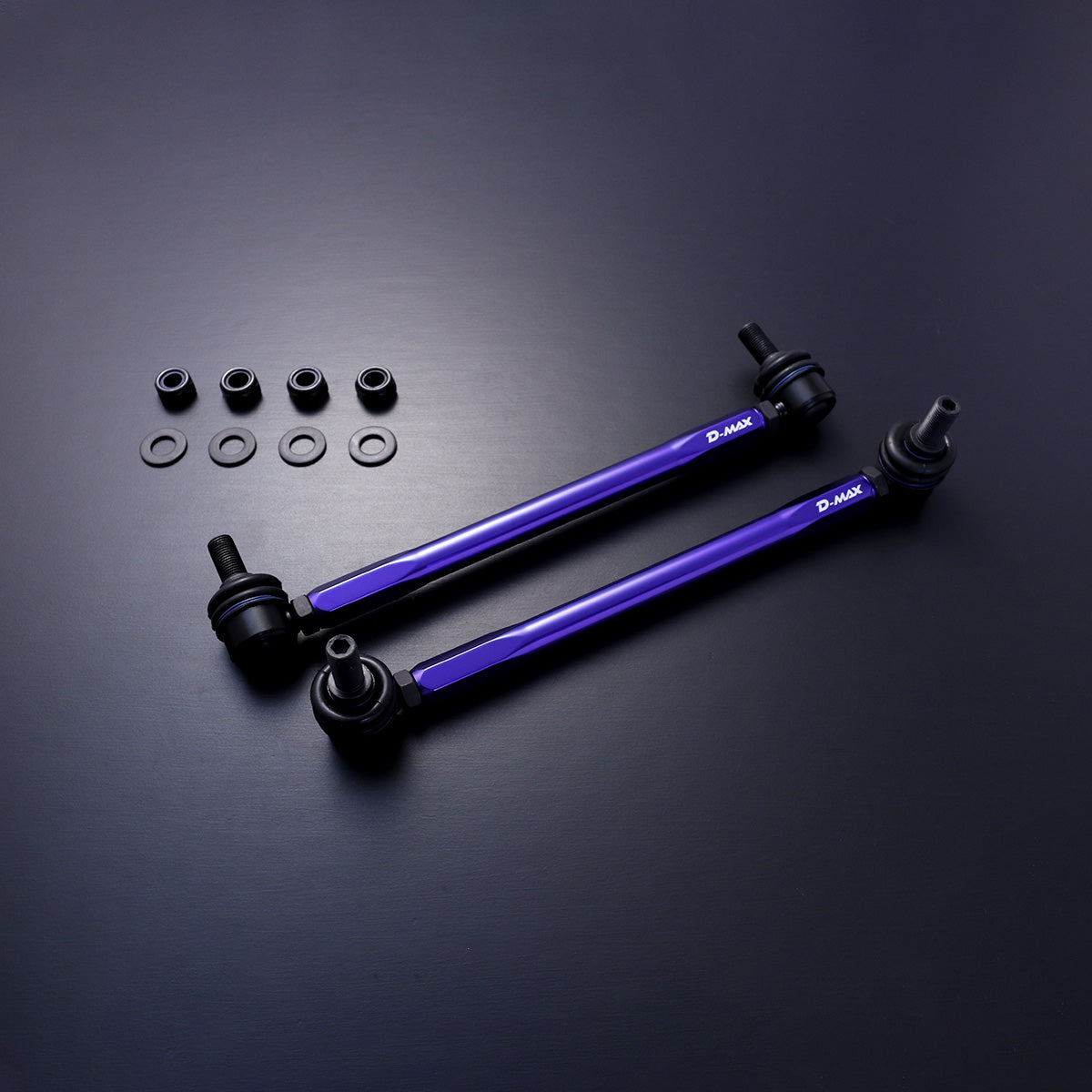

D-MAX Adjustable Sway Bar Links (195/230/280/315mm)
D-MAX Adjustable Sway Bar Links (195/230/280/315mm)
Couldn't load pickup availability

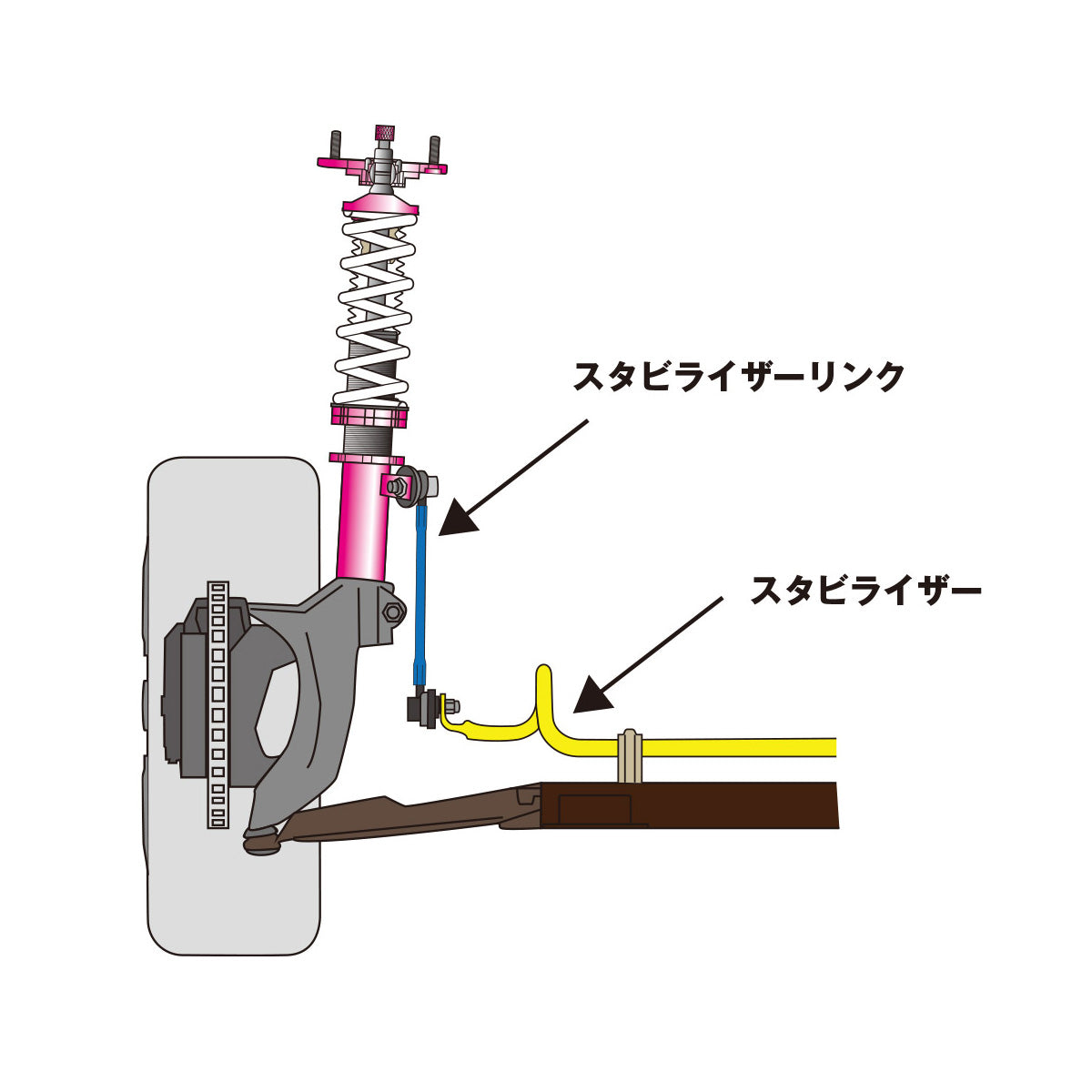

An adjustable sway bar link (stabilizer link) is the rod that connects the sway bar to the suspension. At stock ride height, the angle between the sway bar and link is close to 90 degrees on nearly every vehicle, but lowering the car changes that angle, so the sway bar no longer works as designed — left/right stroke changes, roll control decreases and ride quality suffers. On a lowered car, adjustable links let you restore the stock angle so the sway bar performs as intended.
| Adjustment range | 195mm:250mm~320mm 230mm:285mm~355mm 280mm:335mm~405mm 315mm:370mm~440mm |
| Adjustment method | Turnbuckle type |
| Rod length | 195mm 230mm 280mm 315mm |
| Rod diameter (widest point) | 17Ф |

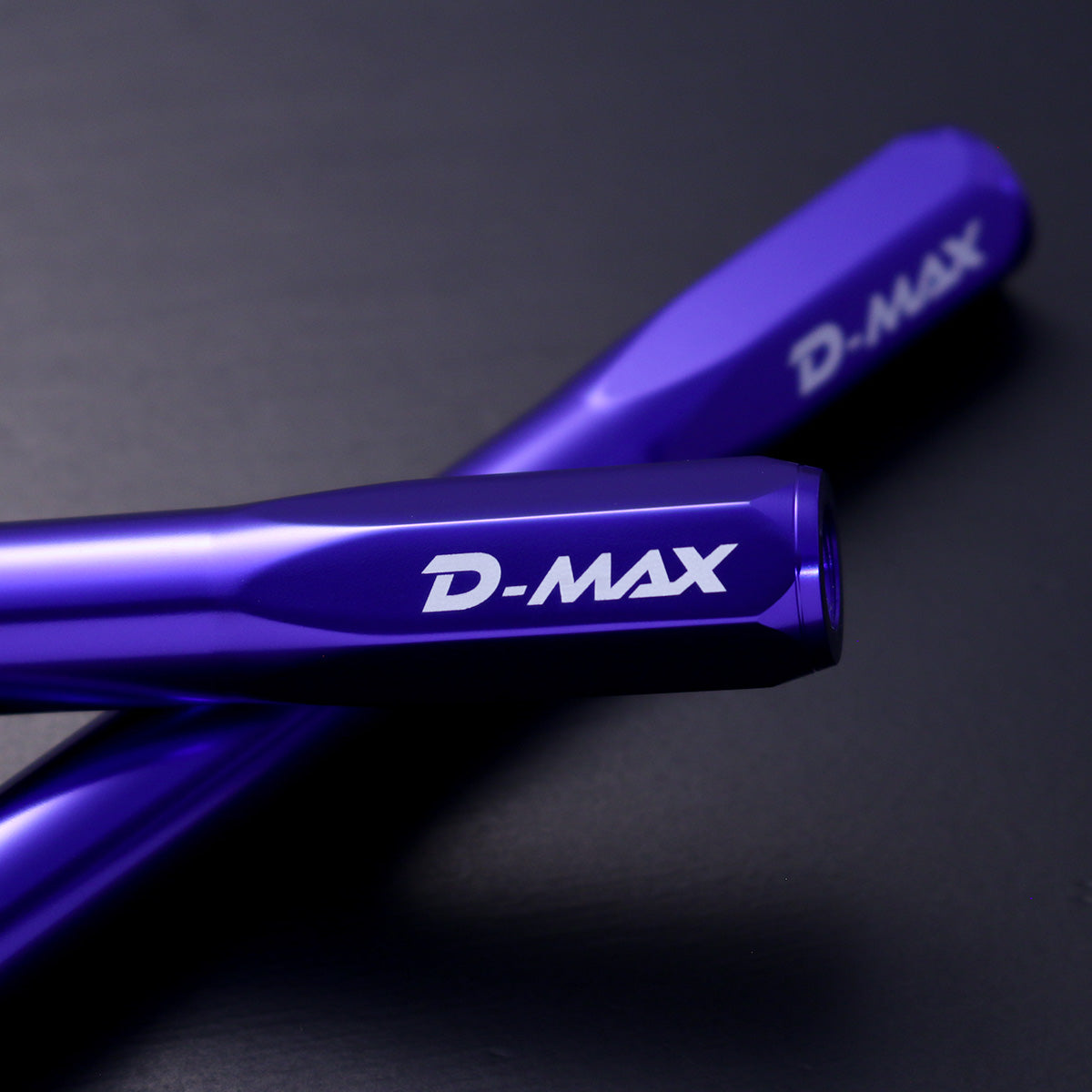

| Rod material | Aluminum A6063 |
| End thread diameter | M10 M12 |
| Warranty period | 1-year warranty from purchase *Note 1 |
Notes
・When replacing sway bar links, lift the vehicle and adjust left and right with the sway bar unloaded.
・Fitment has been confirmed on OEM suspension; all vehicle fitment data is relative to OEM. For non-OEM shocks or sway bars, measure on the actual vehicle
Always take actual measurements to confirm fitment.
*Note 1: Covered by warranty only if the ball joint bushing tears.
*Sold as a set of 2.
