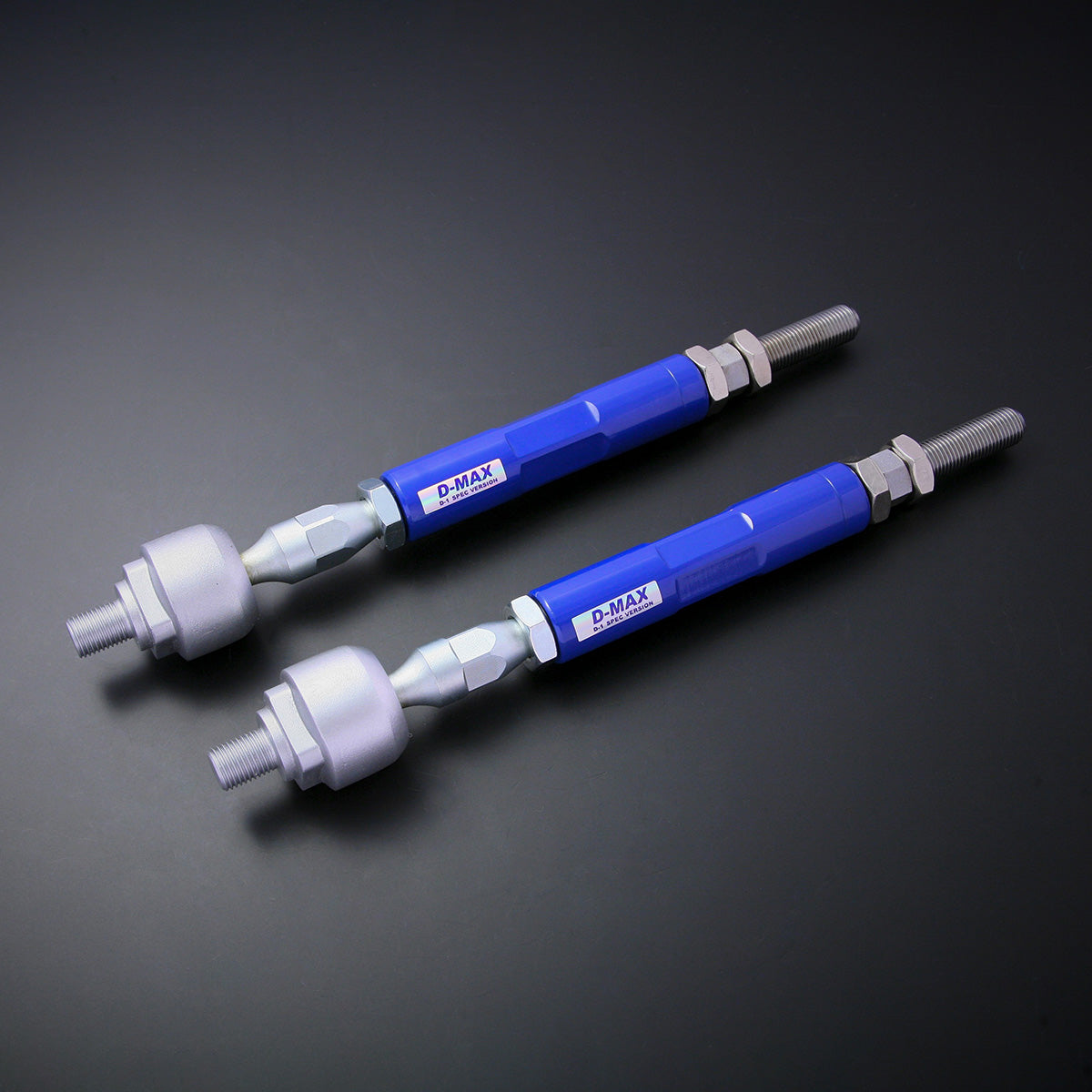

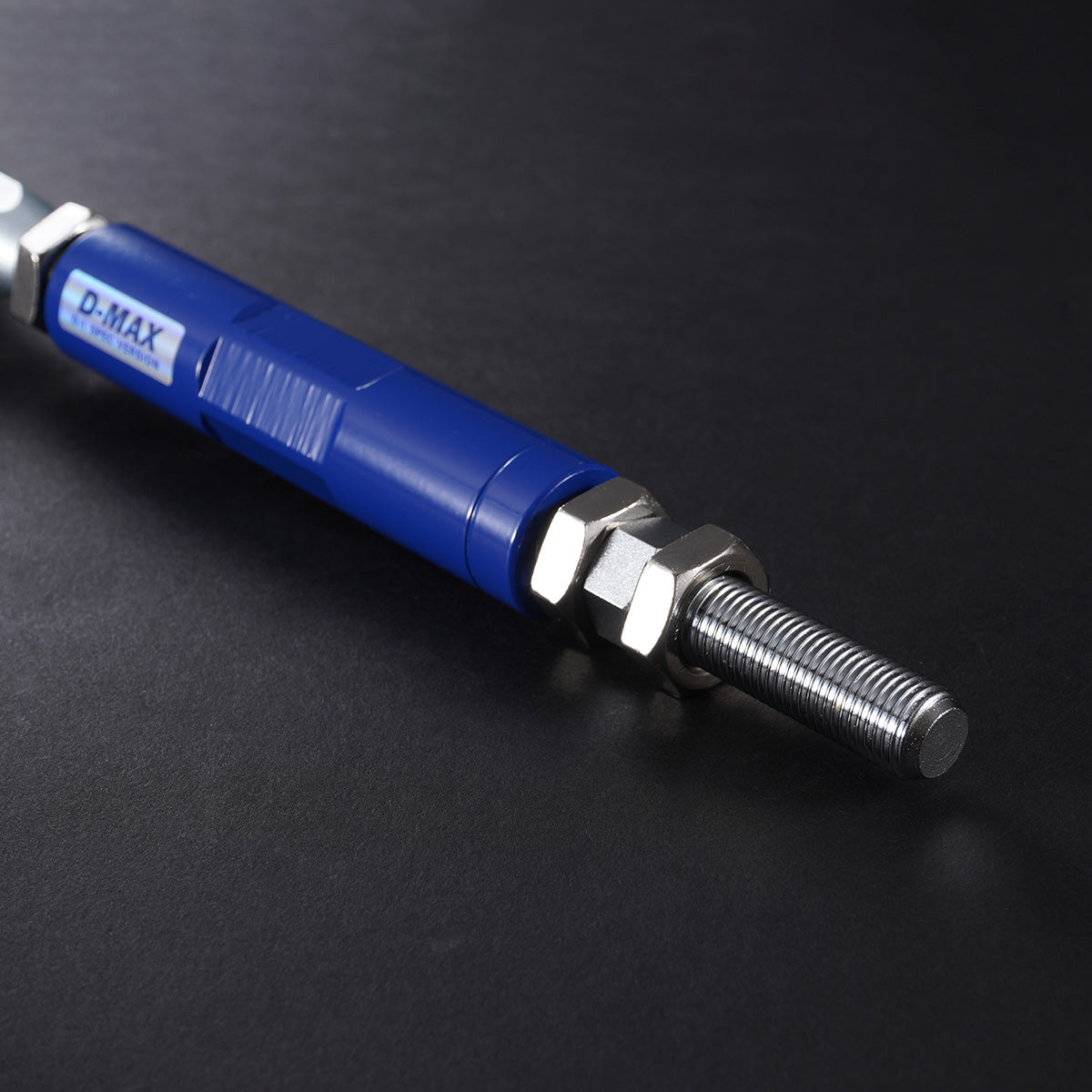

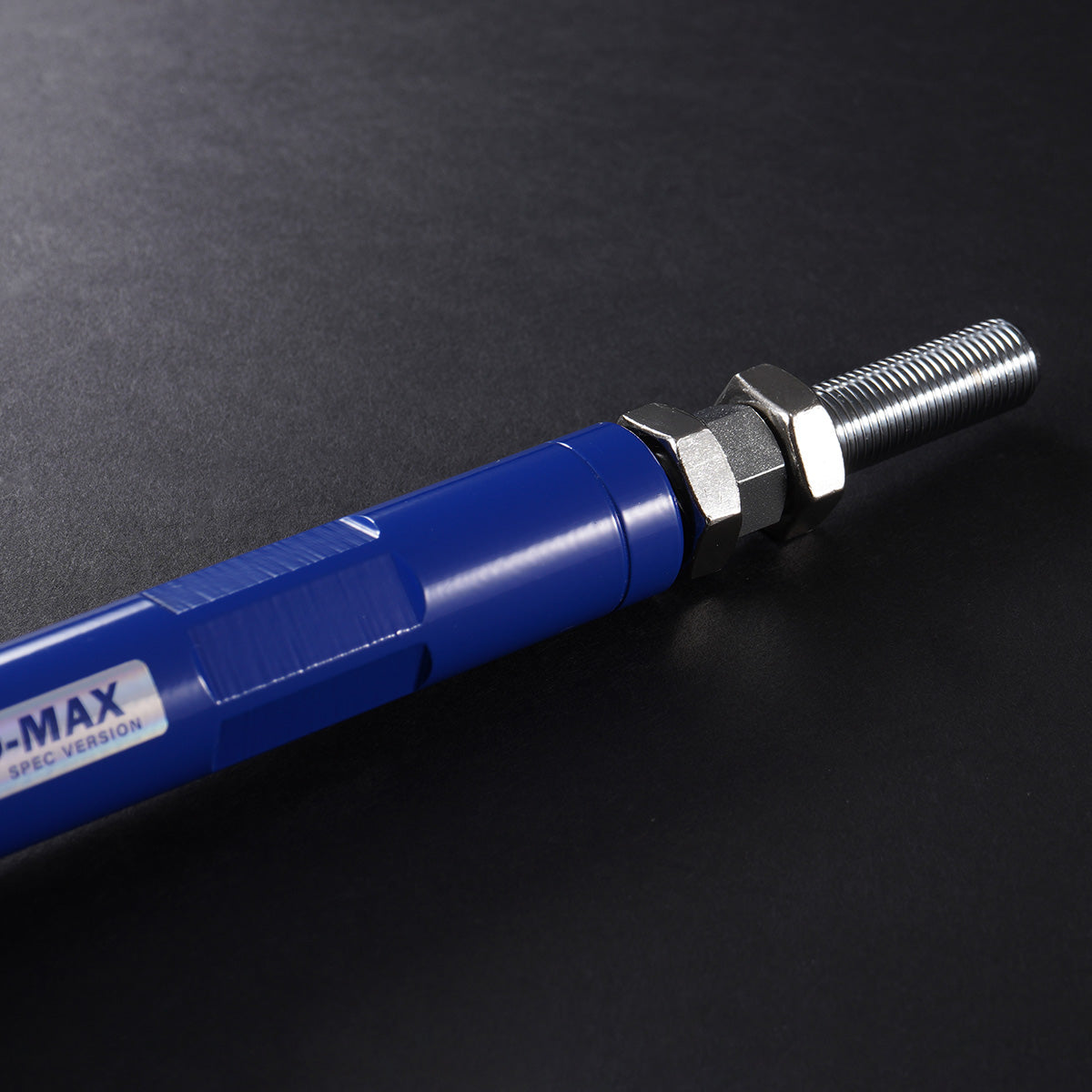

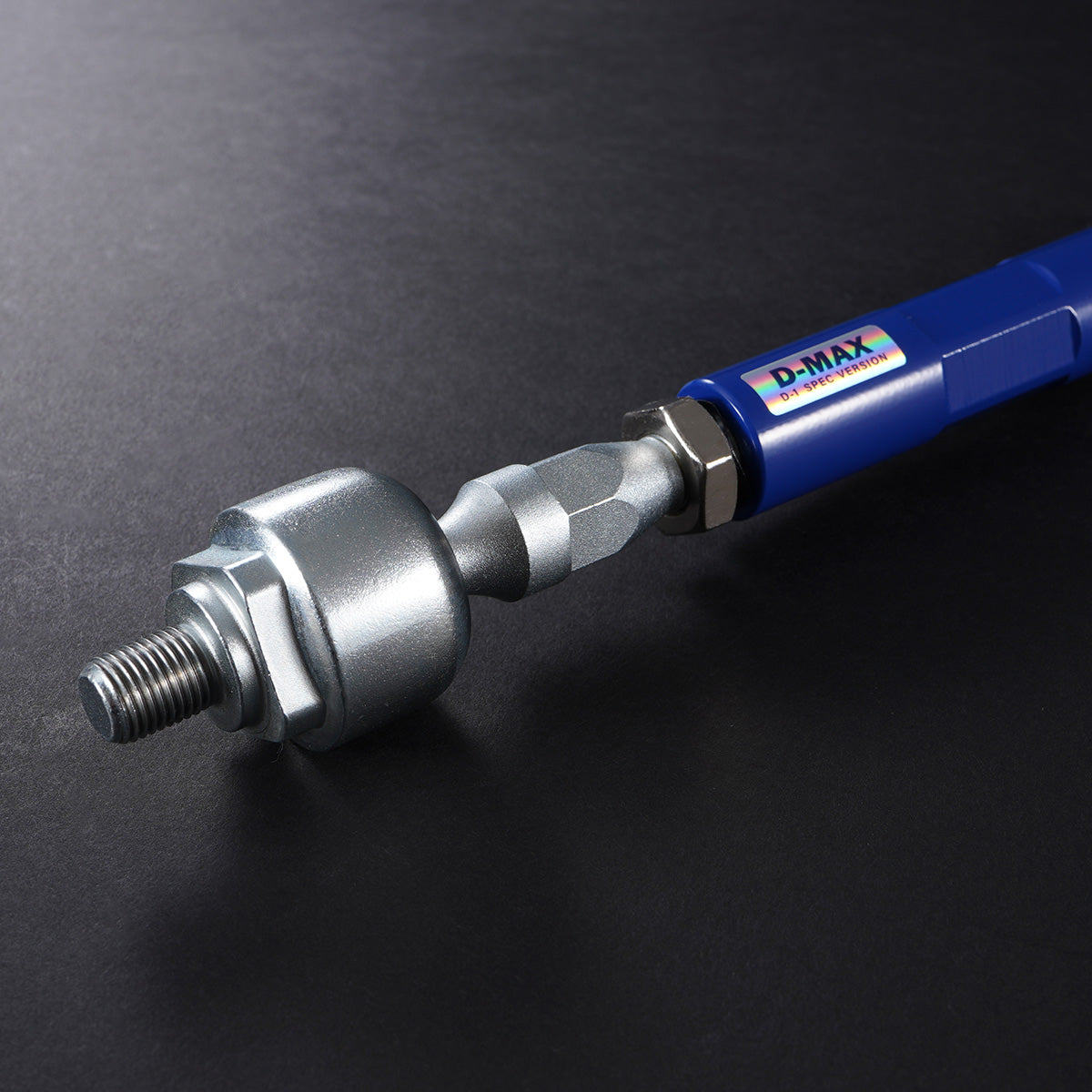

D-MAX D1SPEC Reinforced Tie Rod Type R (86/GR86/BRZ)

The D1SPEC Reinforced Tie Rod Type R offers a much wider length adjustment range, so it works with extended lower arms or short knuckles without any additional parts. It also fits vehicles with OEM knuckles. Many reinforced tie rods increase steering angle by adding a spacer, but the D-MAX part is machined as a single piece, increasing both strength and steering angle.

Co-developed with Kawabata, who drives an 86 as his personal car, does demo runs for TOYO Tires and competes in the D1 GRAND PRIX series in a GR86.

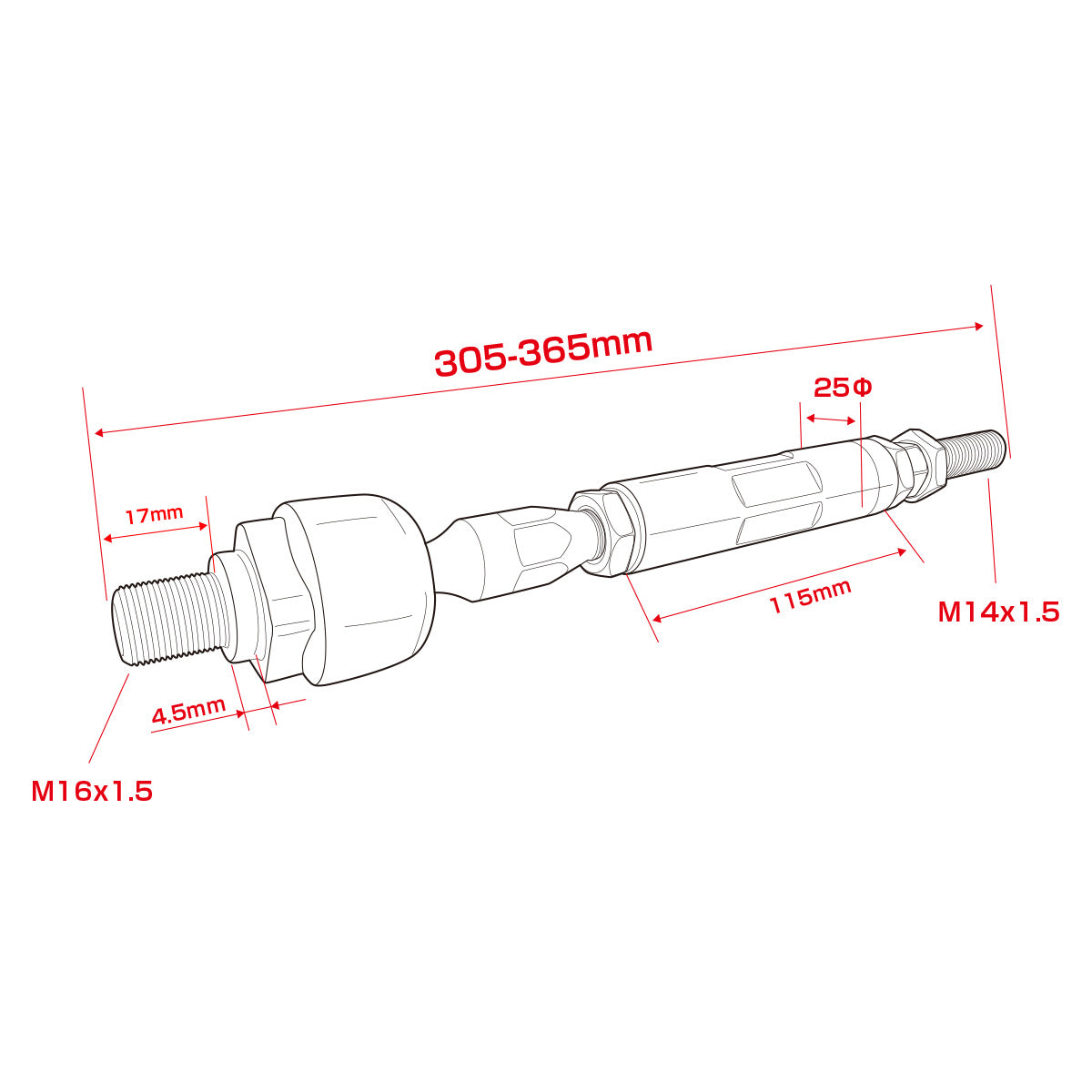

Product specifications

Rod diameter	25Ф
Rod thickness	6mm
Adjustment method	Turnbuckle type
Adjustment thread pitch	1.5mm
Adjustment range	60mm

*Greatly increased steering angle vs. OEM — equivalent to a 4.5mm washer / compatible with extended lower arms and short knuckles
*Recommended for vehicles with lower arms extended by 20mm or more.
*If your lower arms are OEM, use the Reinforced Tie Rod (DMSU86AT10).

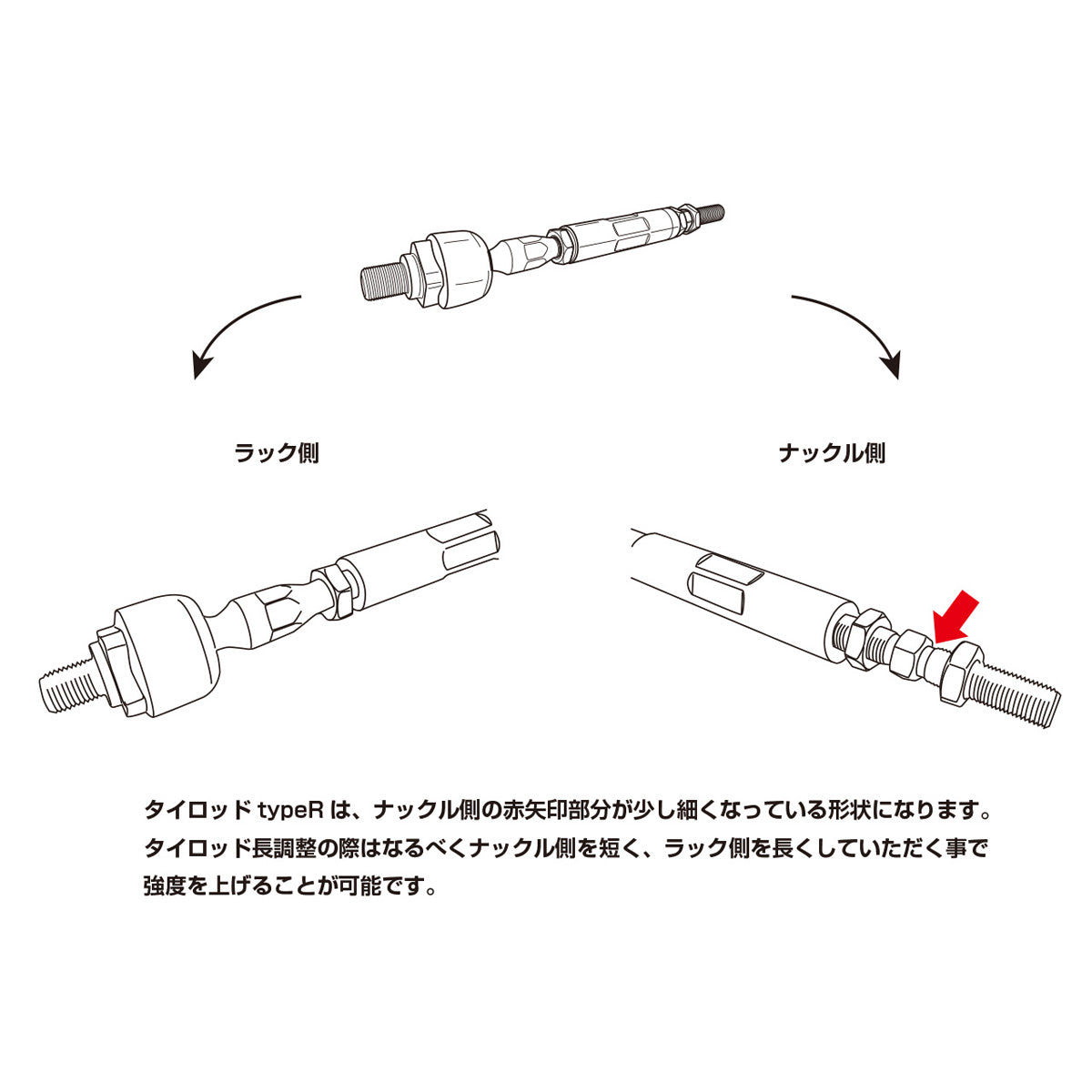

*When installing this product, make adjustments on the rack side.
*When using this product, control steering angle appropriately with steering stoppers or similar. Using it without doing so may damage the steering rack.

Compatible chassis codes

86	ZN6/ZN8
BRZ	ZC6/ZD8
