D-MAX D1SPEC Pillow Ball Tension Rod, Offset Type Ver.2
D-MAX D1SPEC Pillow Ball Tension Rod, Offset Type Ver.2
Regular price
$201.99 USD
Regular price
Sale price
$201.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

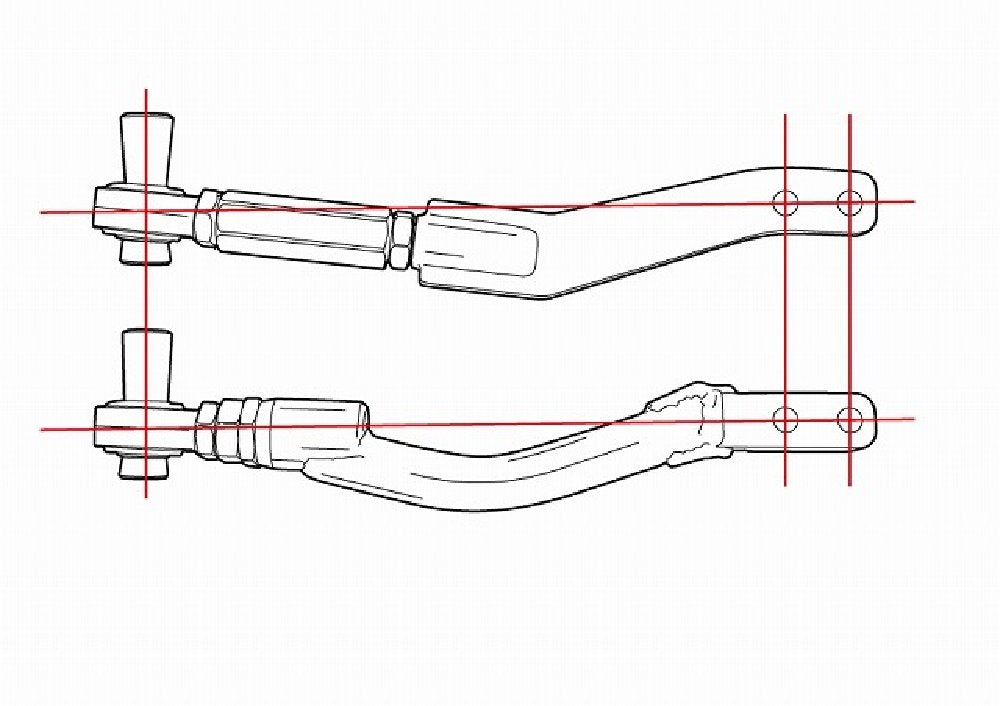

Ver.2 is designed with a completely different shape from the Ver.1 we previously sold. Ver.1 was improved for strength several times, but with recent high-grip tires, extended lower arms and new high-angle knuckles, loads on the tension rod began exceeding our data, which led to the development of Ver.2. To eliminate any lack of strength, the structure itself was redesigned and maximum clearance was also increased. Ver.2 expands setup range beyond previous limits.

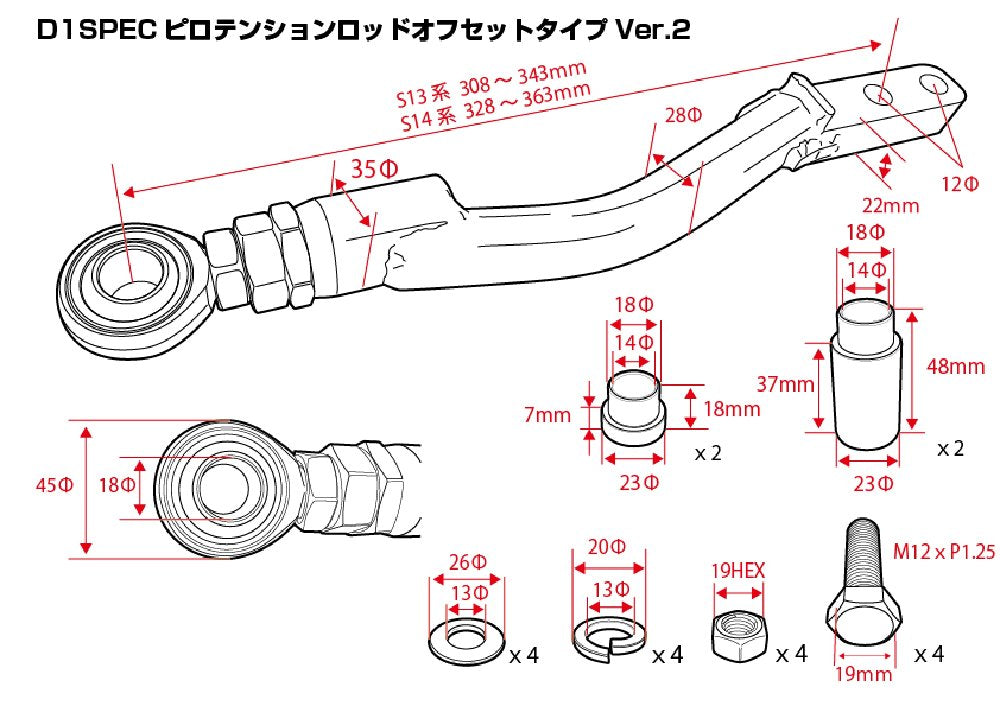

■Specifications
| Rod diameter | 28Ф (35Ф at the widest point) |
| Rod thickness | ― |
| Pillow ball outer diameter | 45Ф |
| Pillow ball inner diameter | 18Ф |
| Adjustment method | Turnbuckle type |
| Adjustment thread pitch | 1.5mm |
| Adjustment range | 35mm, for both 13 and 14 series |
*Note that the inner side of the tire (wheel) will contact the OEM sway bar before this product does.
■Included accessories
| Bolt | 4 pcs |
| Nut | 4 pcs |
| Collar (large) | 2 pcs |
| Collar (small) | 2 pcs |
| Pillow ball rubber collar | 2 pcs / standard equipment |
■Compatible chassis codes
| S13 series | (R)PS13/A31/C33/HCR32/Z32/Y32/Y33 |
| S14 series | S14/S15/C34/C35/WGC34 |
| Not compatible | Not compatible with 4WD / not compatible with R33/R34 (interferes with sway bar) |
*The turnbuckle design lets you adjust length with the rod installed on the car.
