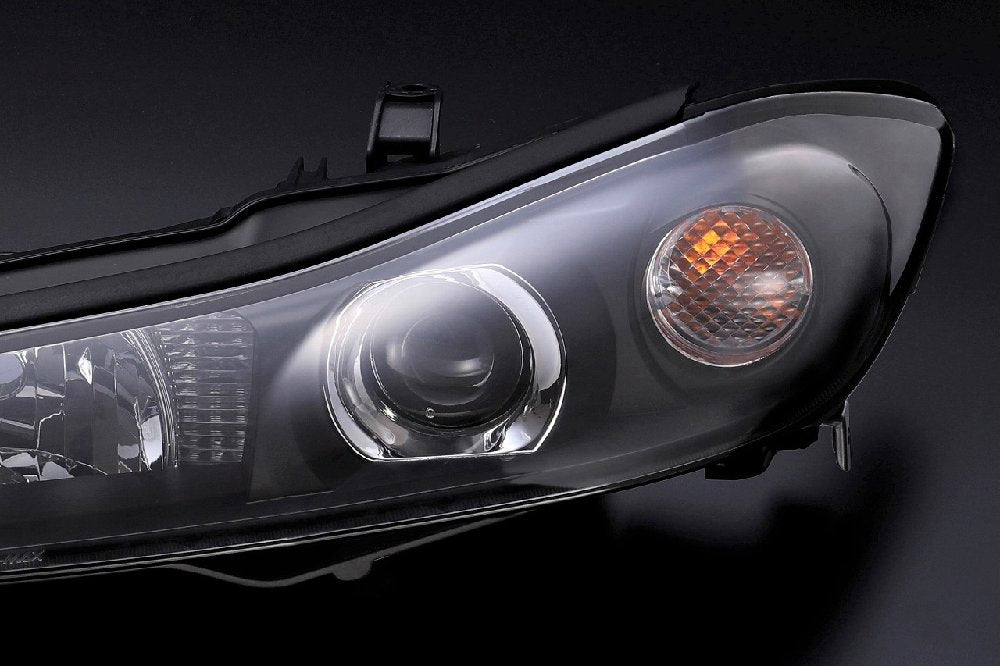

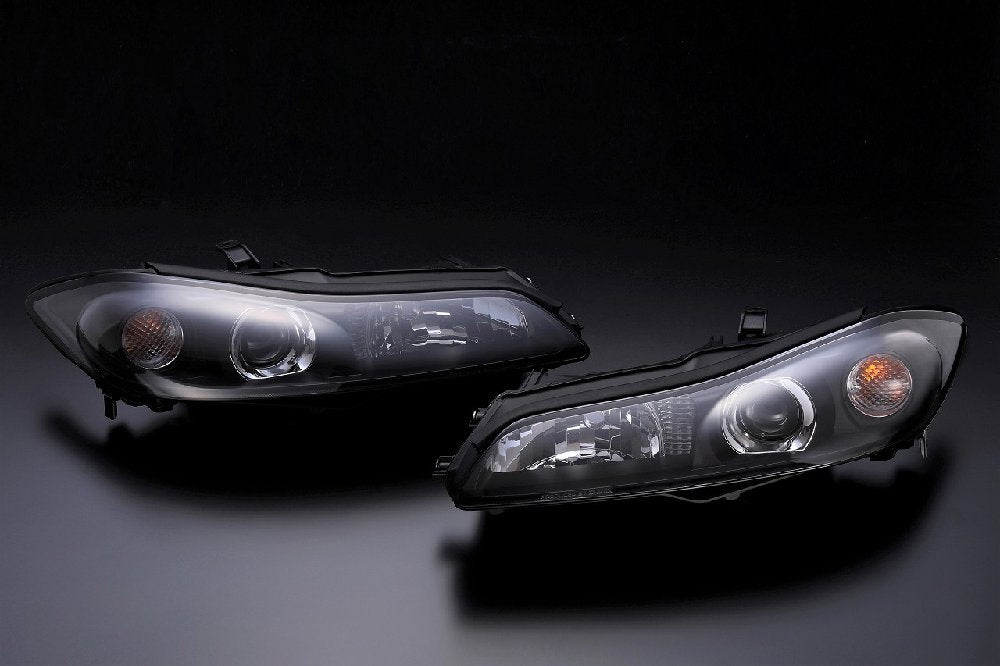

D-MAX Crystal Headlight Set (S15)

■ Material

Acrylic resin

*The lens scratches easily — do not wipe it with a dry cloth.

■ Specifications / Bulb

*Bulbs not included.

Headlight aim adjustment	Yes (for right-hand drive) *Headlight aim is not set at shipping — always adjust with a tester or similar before use.
Inner collar	Black
Low beam bulb type	H1 / Rating: 12V 55W
High beam bulb type	HB3 / Rating: 12V 65W
Position lamp (clearance lamp)	T10 / Rating: 12V 5W
Turn signal	S25 offset-pin / Rating: 12V 21W amber *Lots from August 2022 onward use S25 (BA15s).

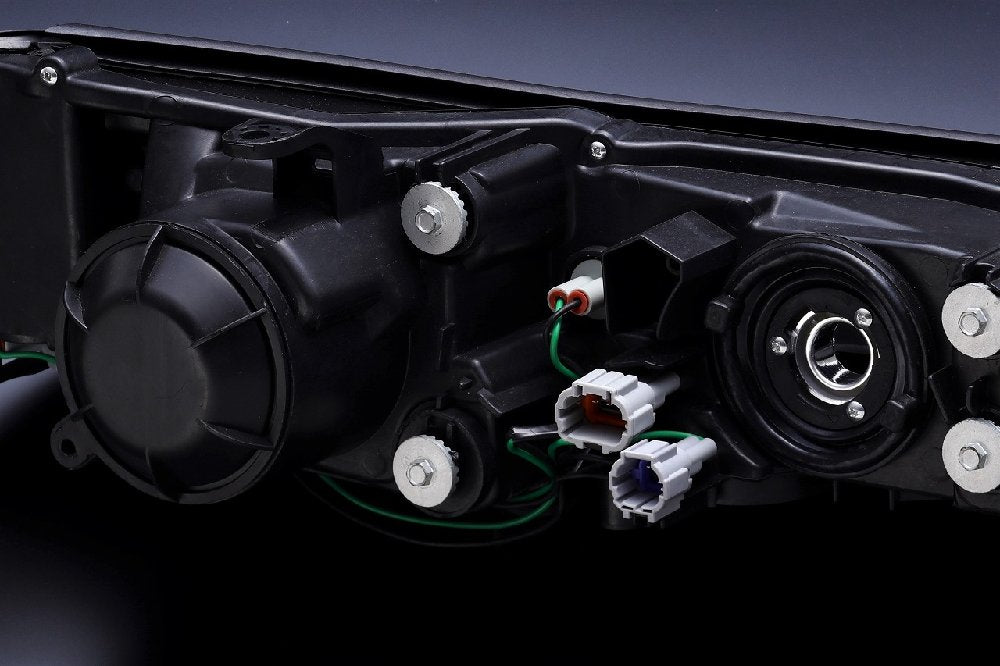

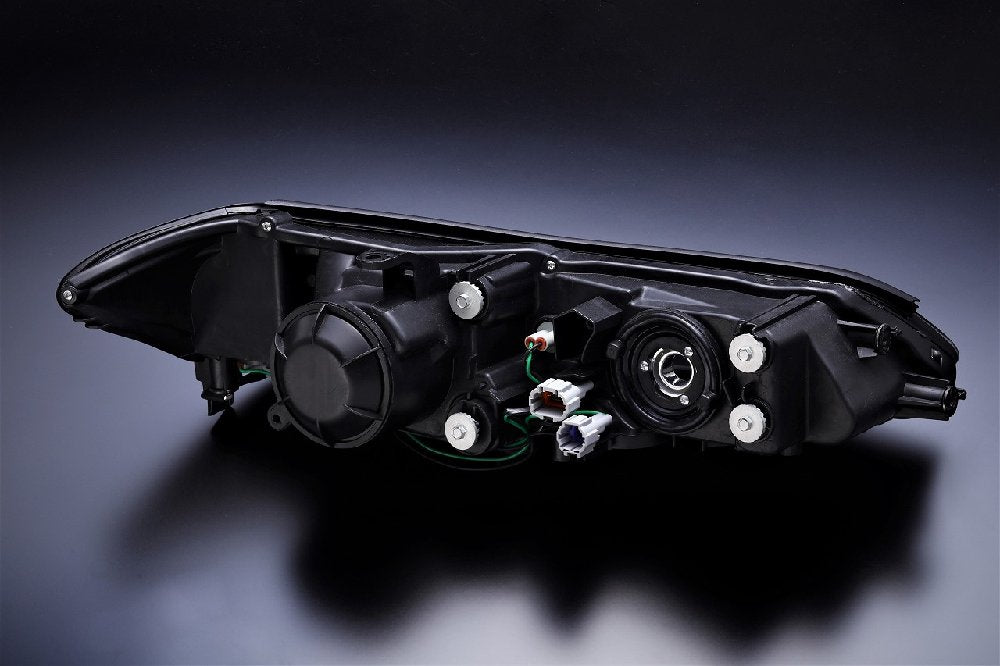

Installation	OEM connector compatible

*Inspection-compliant model (Japan)

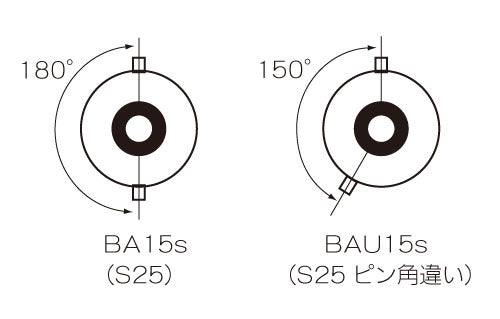

■ About the difference between S25 and S25 offset-pin

■ Compatible vehicles / chassis codes

Silvia	S15 ※1

*Note 1: Made for halogen vehicles, so it cannot be installed on HID vehicles. To install on an HID vehicle, a separate conversion harness kit is required.
*Note 1: Because the connector shape differs between HID and halogen vehicles.

■ Included accessories

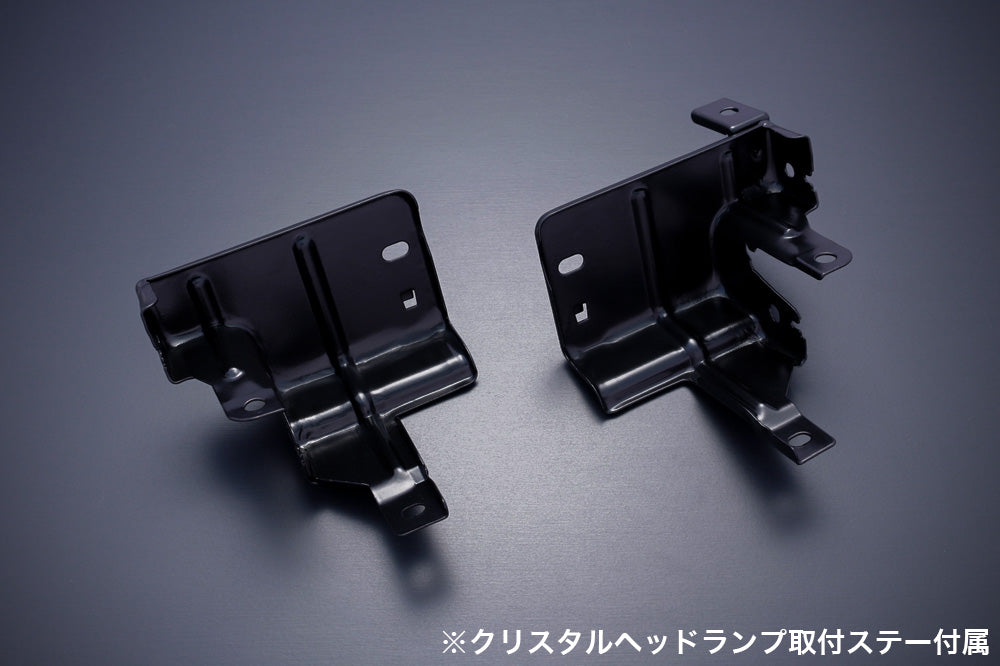

Included accessories	Crystal headlight mounting brackets

■ Warranty coverage and period

Lens	The clear coat on the surface is covered by the warranty, but modified items or damage from stone chips or impacts are not covered.
Warranty period	1 year from delivery.

*Lighting such as tail lamps is strictly regulated for color and brightness for safe vehicle operation.
Never modify the color or brightness of the lamps.
*Most water leaks are caused by an improperly installed or deteriorated seal between the body and lamp.
*Please install with a proper understanding of the role of the seal (caulking).
*Before driving, always confirm that all lights work properly.
*After installation, always confirm that all lights work properly. Keep the removed OEM lamps in a safe place.
*If the lens fogs: tail lamps are not sealed so that the air inside can ventilate. This releases heat generated by the lamp
keeps the interior of the lamp in optimal condition.
*The tail lamp interior is not sealed, so condensation may fog the lens during long periods of rain or high humidity. This is normal.
*Fogging will clear if left for a while. If it bothers you, disconnect the tail lamp connector on a sunny day and leave it for a while.
*The seal (caulking) between the body and lamp is a very important part for preventing water leaks. If it shows wear or damage when removed,
Always replace with a new one.
*A gap of a few millimeters between the body and this product after installation is due to body or installation tolerances and is not a defect.
