D-MAX SUPER STREET Suspension Kit (R32 Skyline)
D-MAX SUPER STREET Suspension Kit (R32 Skyline)
通常価格
$1,060.99 USD
通常価格
セール価格
$1,060.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした

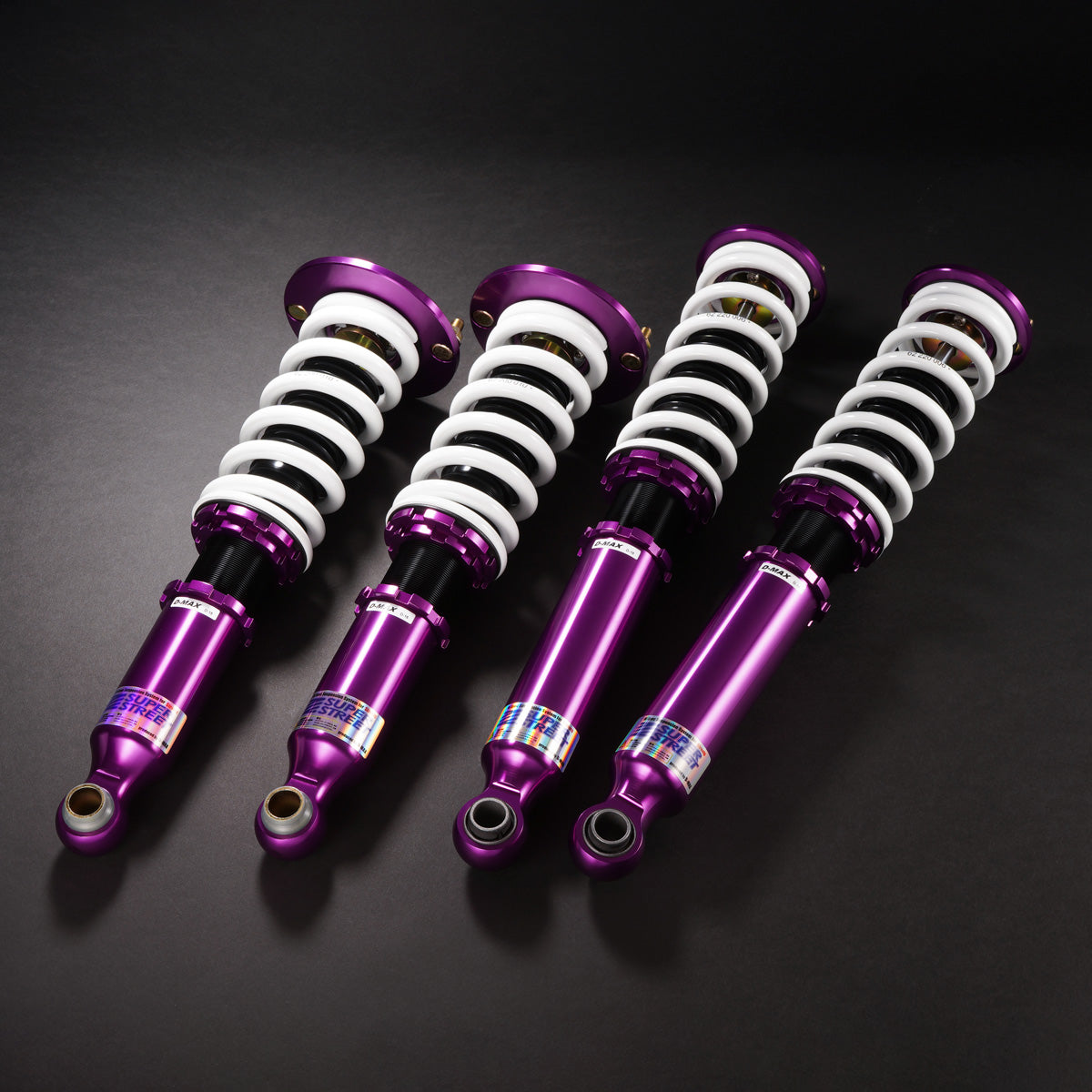

D-MAX SUPER STREET SUSPENSION is a coilover developed together with drivers competing in Japan's top series, pursuing high spec at a low cost.
Stroke, damping and spring rates were finely tuned through repeated testing from purpose-built courses to international circuits, pursuing traction, handling and controllability. The development car took the overall win in only its second event after installation.
A suspension for the R32 Skyline that delivers the performance and ease of use to handle everything from circuit driving to the street.
Compatible chassis codes
| Chassis code | HR32 / HCR32 / ER32 / ECR32 |
|---|
Specifications

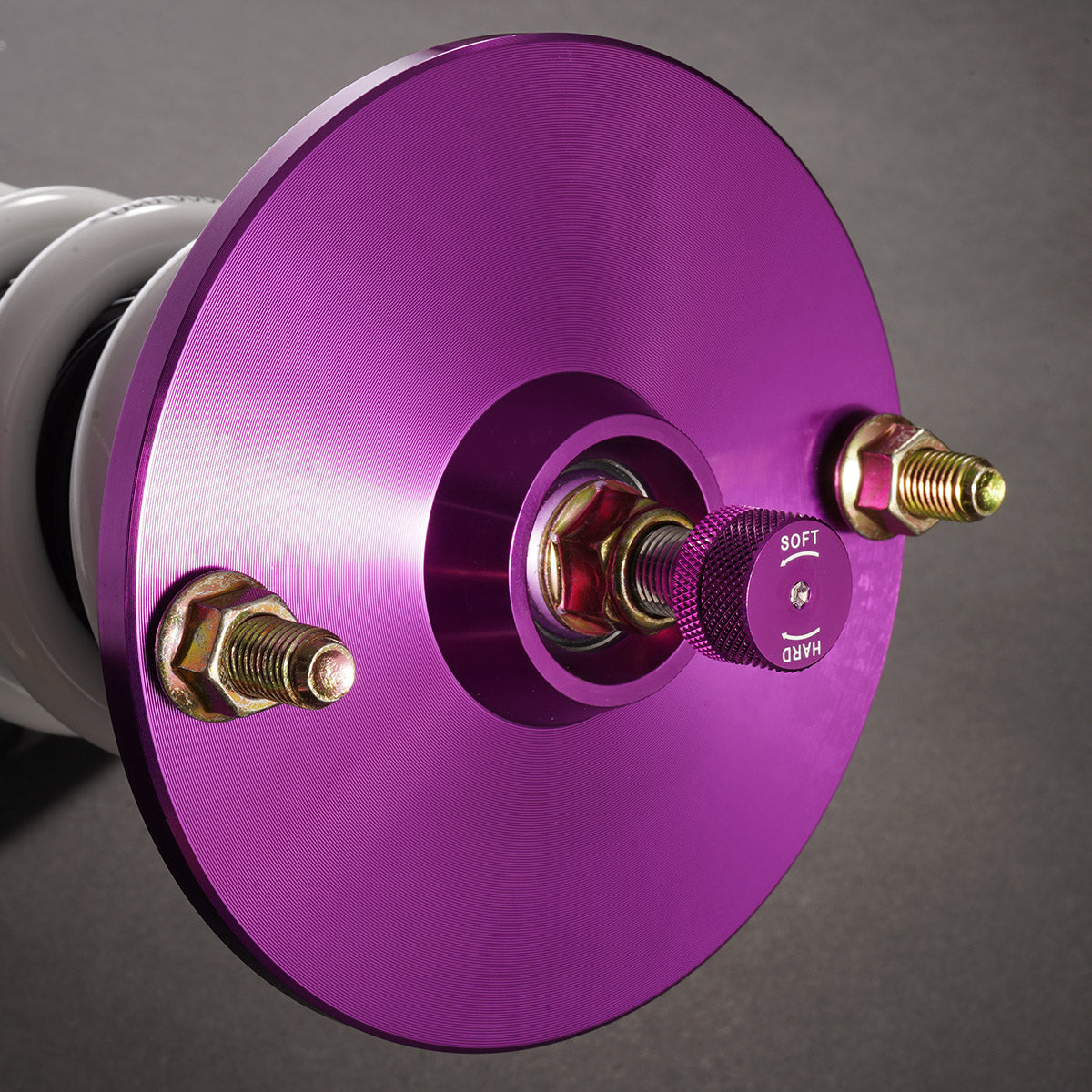

| Front | Conventional / free length 200mm / 10 kgf/mm / linear / 62Φ ID / pillow ball upper mount / full-thread / 30-click dial damping adjustment |
|---|---|
| Rear | Conventional / free length 220mm / 6 kgf/mm / linear / 62Φ ID / pillow ball upper mount / full-thread / 30-click dial damping adjustment |

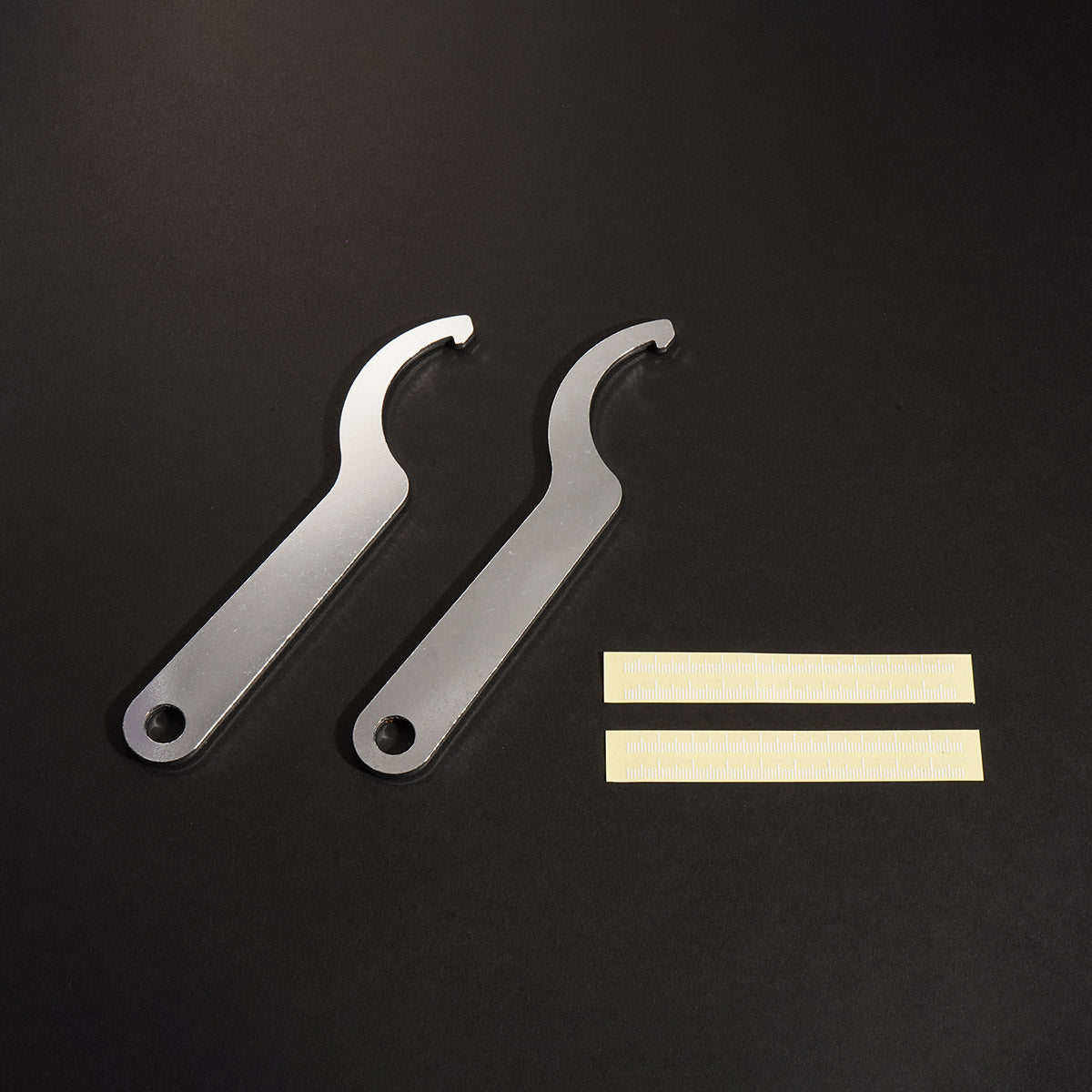

Included accessories
| Coilover wrench | 2 pcs |
|---|---|
| Setting stickers | 4 pcs |
Spring rate change
| Position | Free length | Available spring rates |
|---|---|---|
| Front | 200mm | 8Kgf/mm / 12Kgf/mm |
| Rear | 220mm | 8Kgf/mm / 9Kgf/mm |
*Custom spring rates available (additional cost)
