D-MAX SUPER STREET Suspension Kit (JZX90/100)
D-MAX SUPER STREET Suspension Kit (JZX90/100)
通常価格
$1,060.99 USD
通常価格
セール価格
$1,060.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした

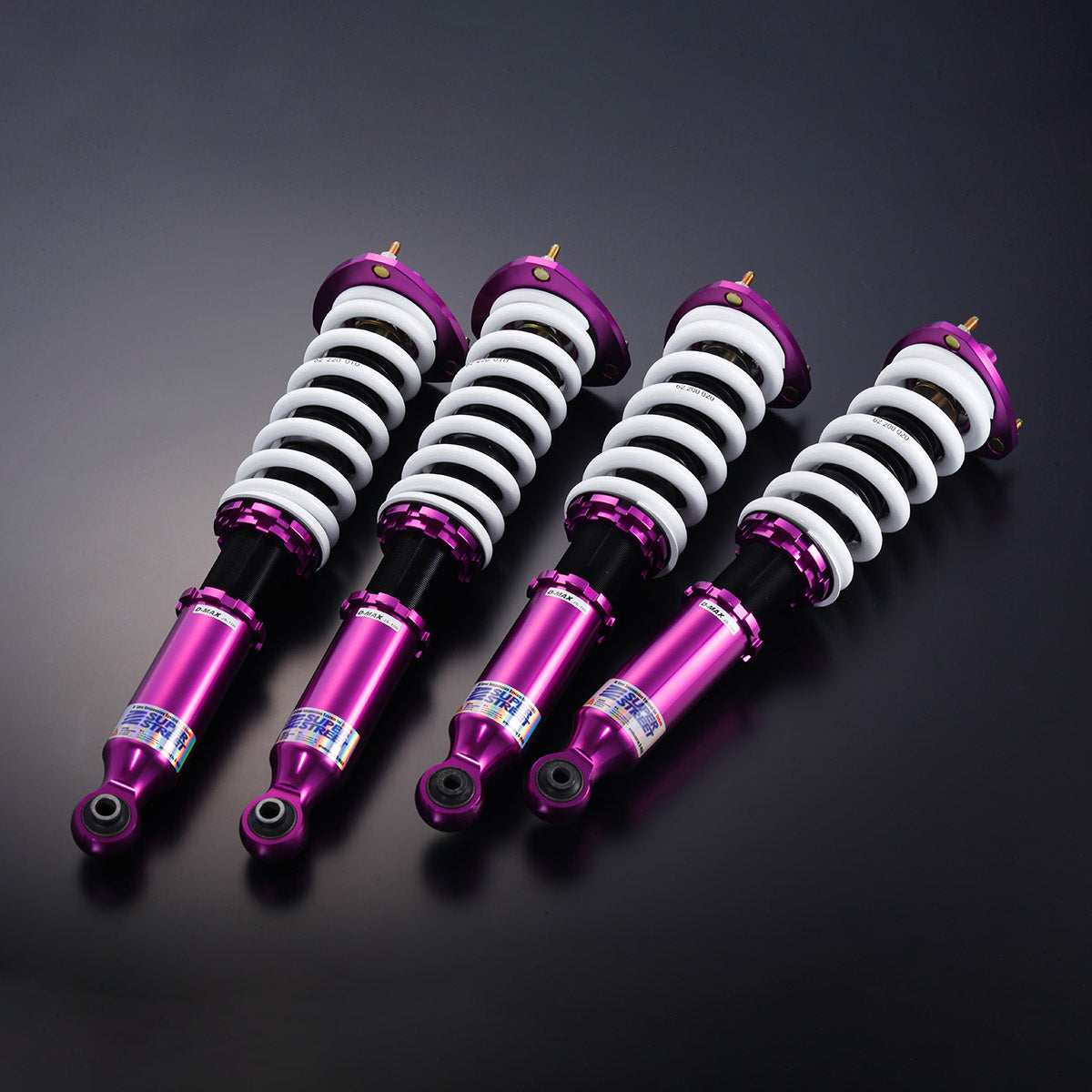

D-MAX SUPER STREET is a coilover developed to cover everything from circuit driving to the street. Shock valving and spring rates were refined through real-world testing with a focus on traction, handling and controllability — a suspension built with attention to core performance, damping adjustment, spring rates and components.
Compatible chassis codes
GX90/JZX90/GX100/JZX100
Specifications
| Item | Front | Rear |
|---|---|---|
| Type | Conventional | Conventional |
| Free length | 200mm | 220mm |
| Spring rate | 20Kgf/mm | 10Kgf/mm |

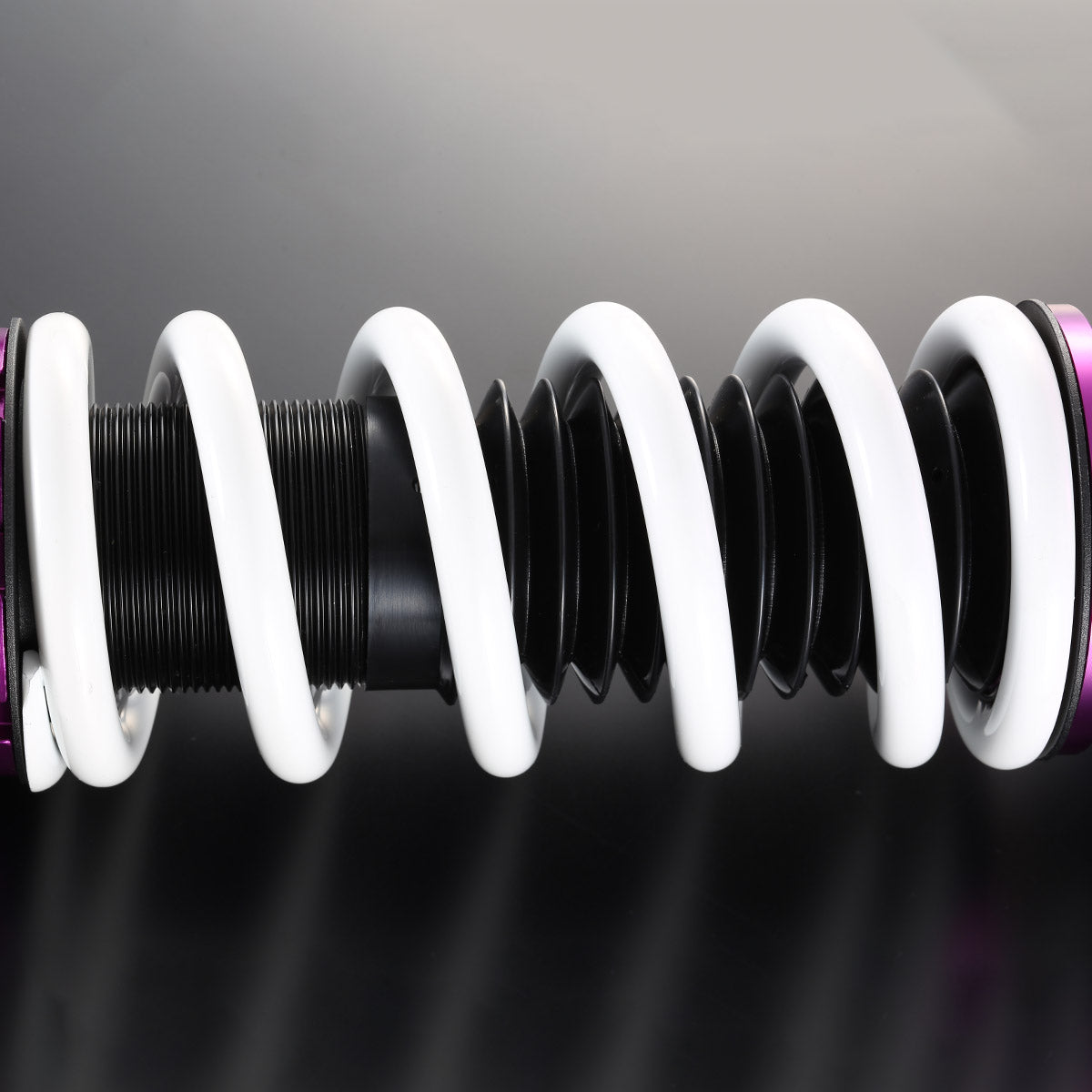

| Spring | Linear | Linear |
| Inner diameter | 62Ф | 62Ф |

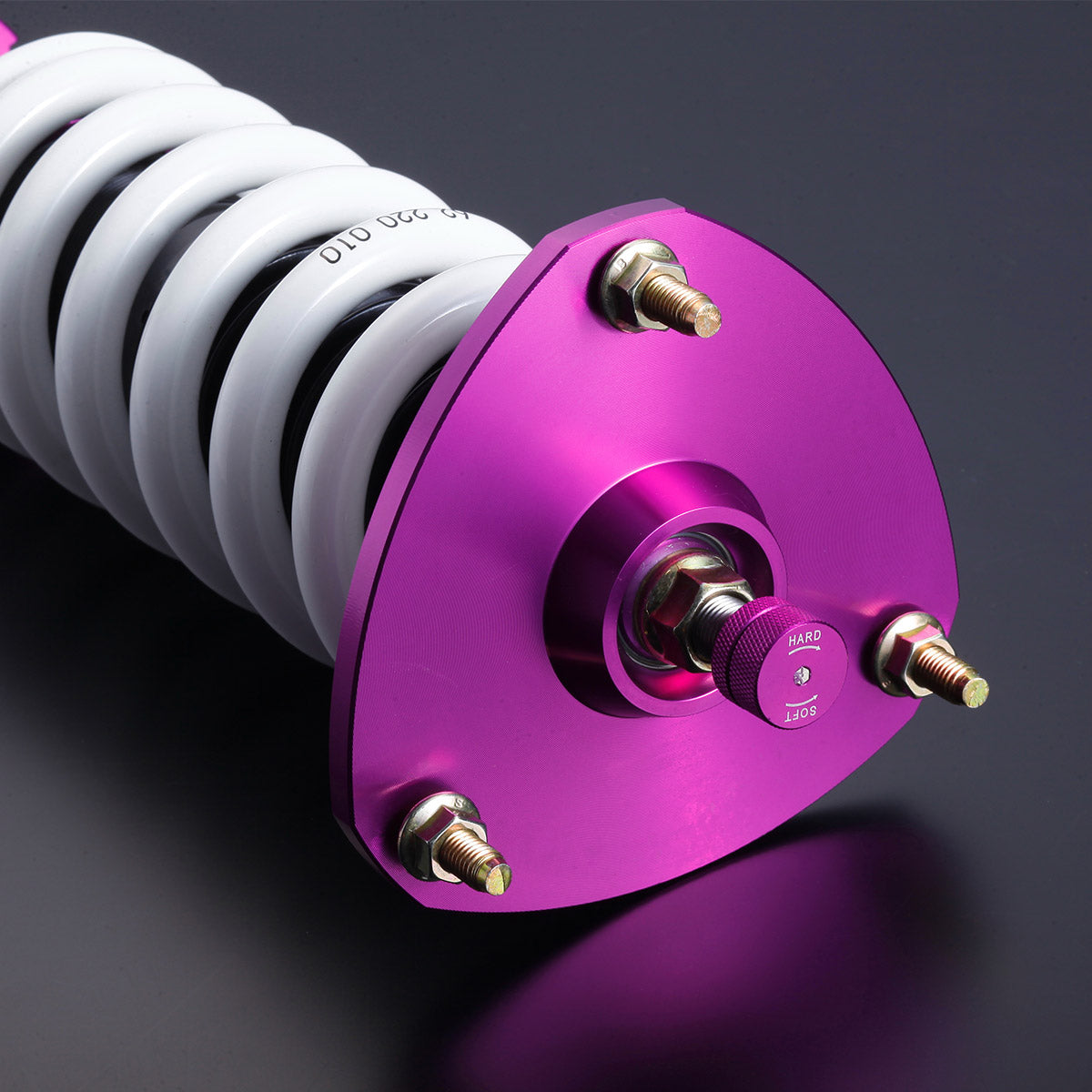

| Upper mount | Pillow ball | Pillow ball |

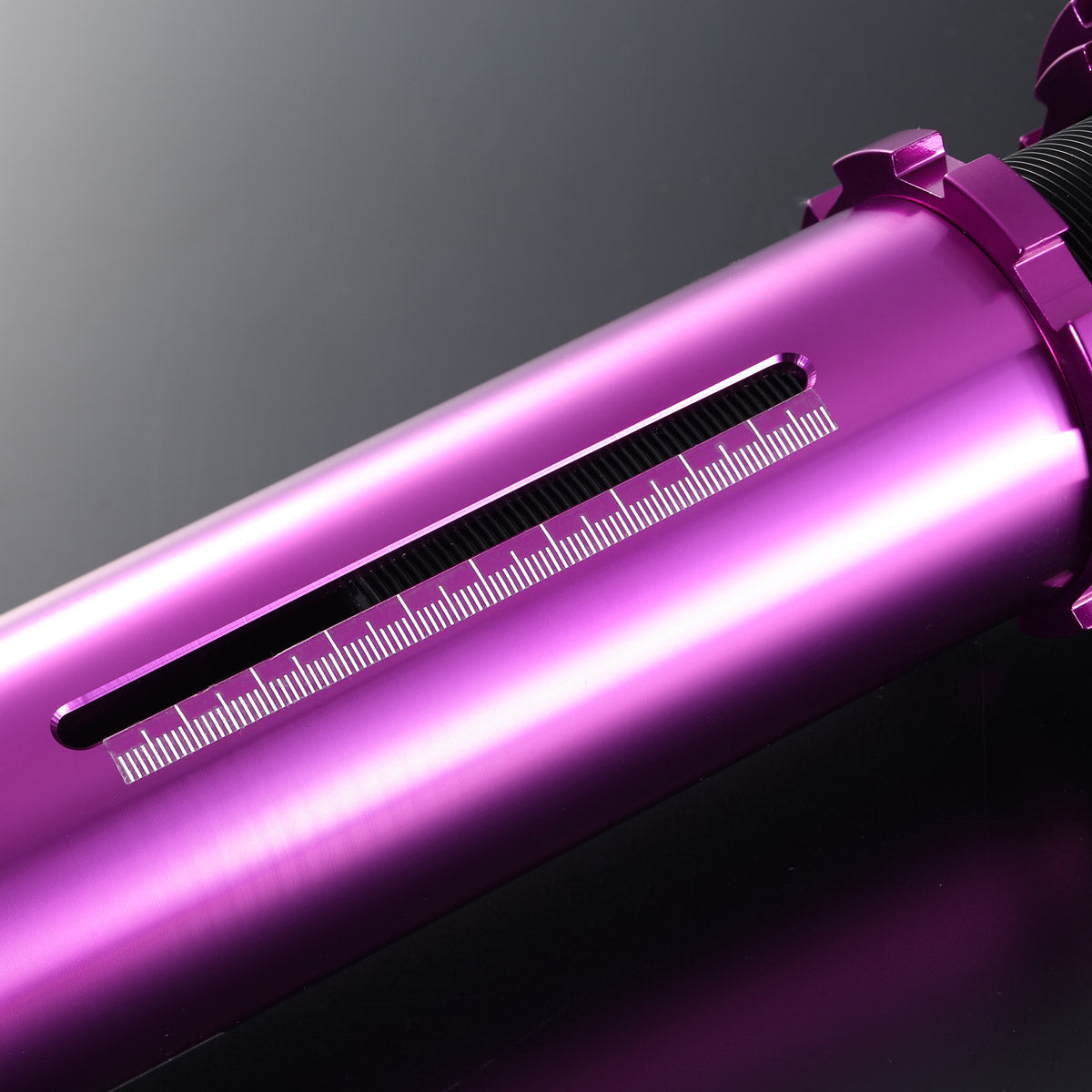

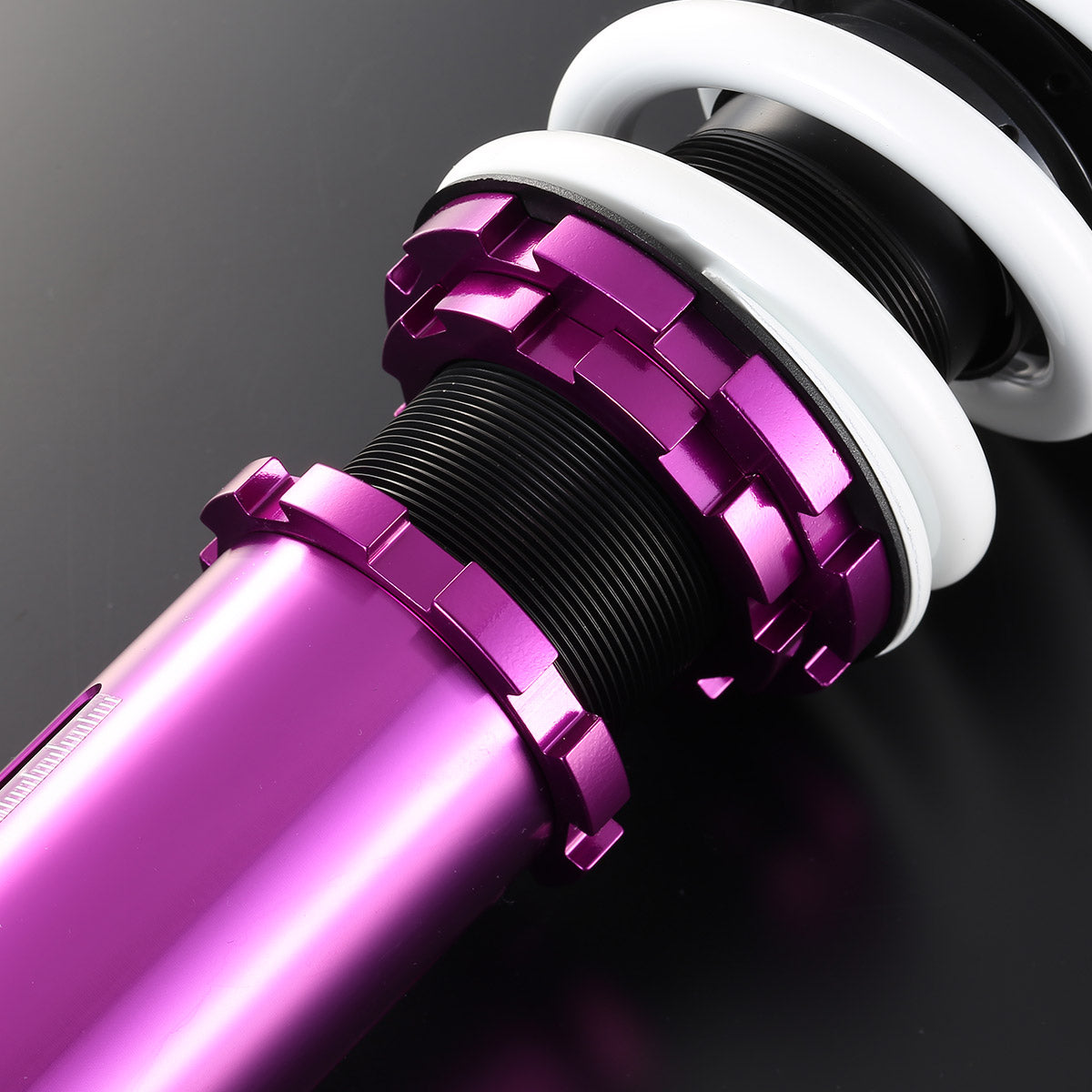

| Overall length adjustment | Fully threaded | Fully threaded |

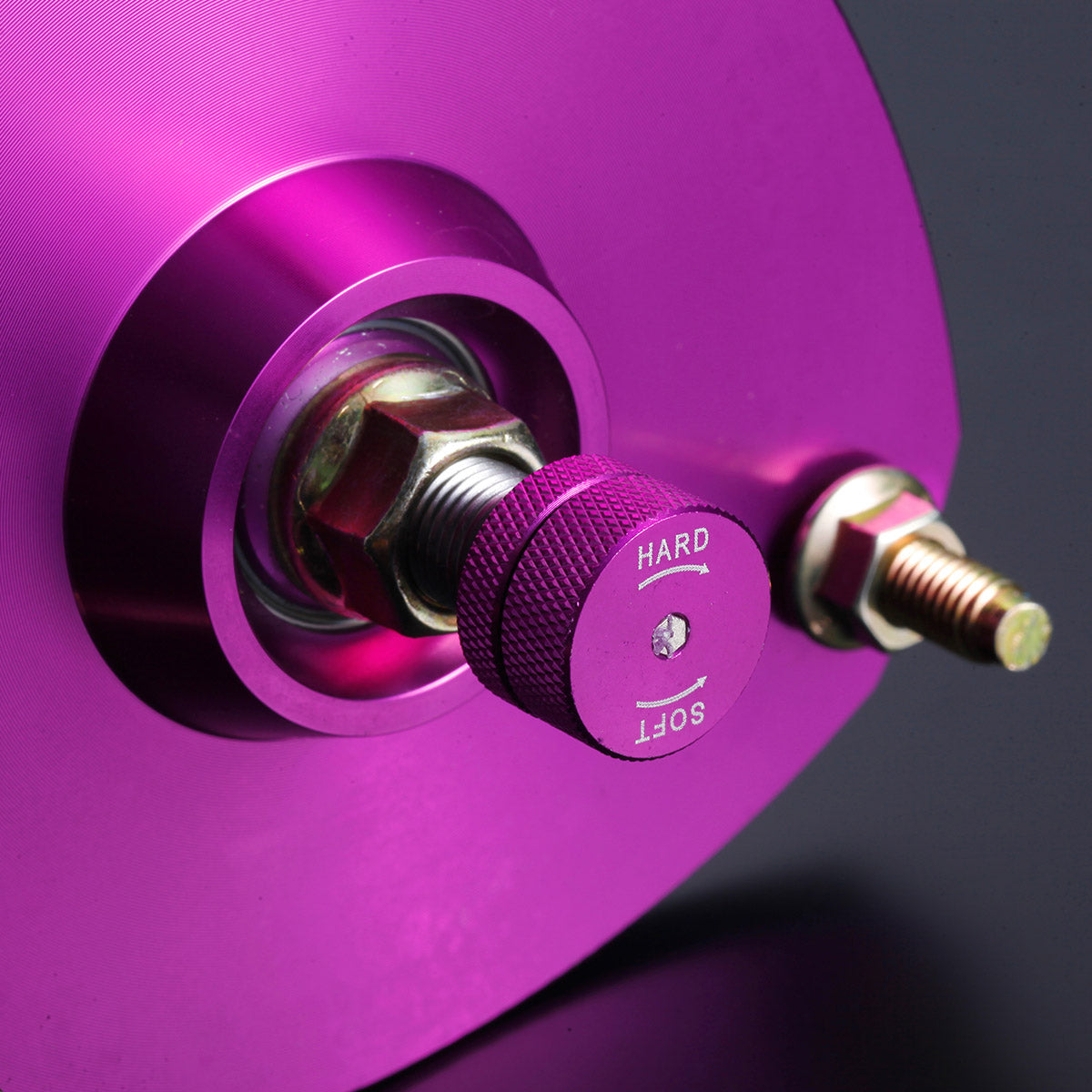

| Damping adjustment | 30-click dial | 30-click dial |
Included accessories

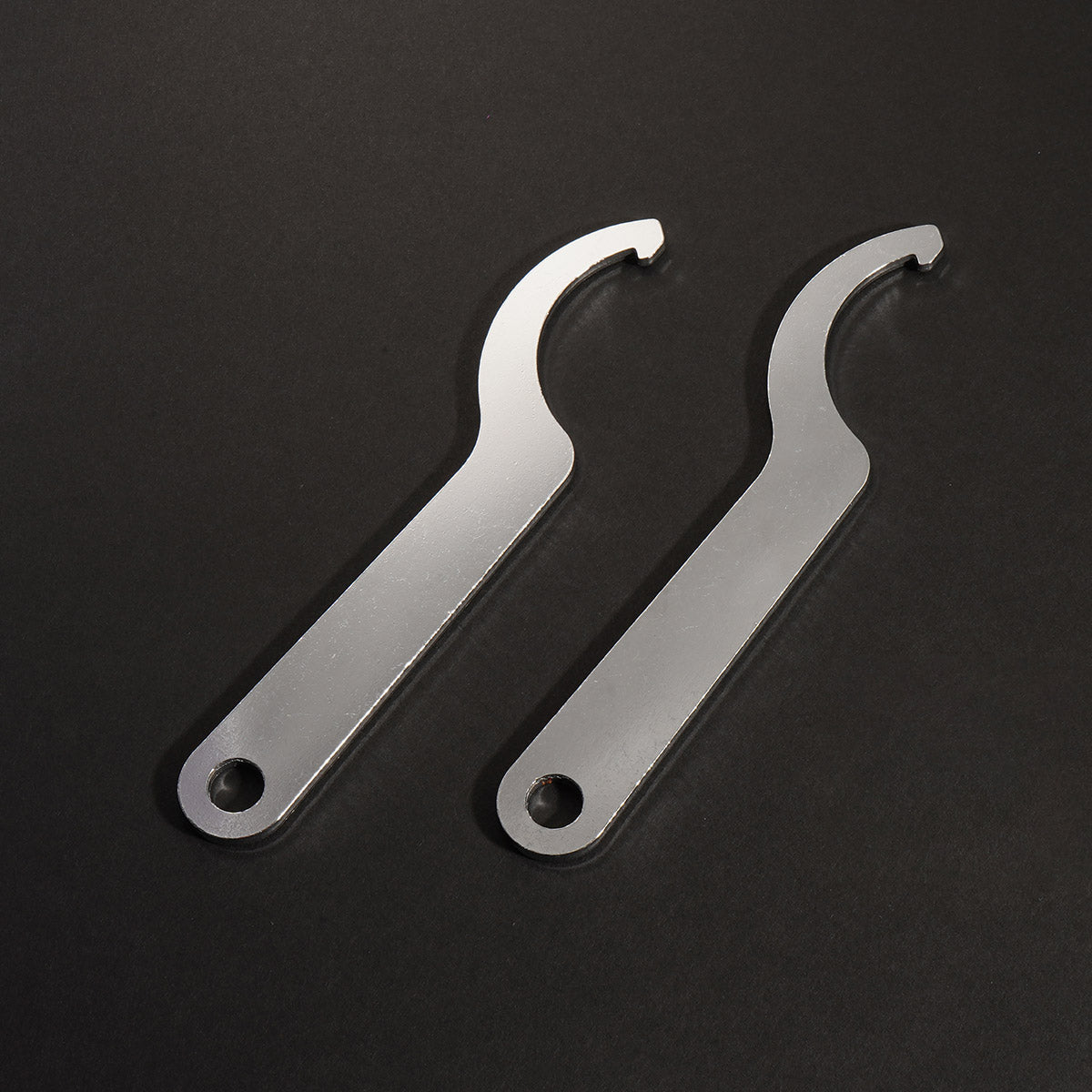

Coilover wrench ×2
Spring rate change
| Position | Free length | Available spring rates | Inner diameter |
|---|---|---|---|
| Front | 200mm | 18/22/24Kgf/mm | 62Ф |
| Rear | 220mm | 8/12Kgf/mm | 62Ф |
*Custom spring rates available (additional cost)
