D-MAX Reinforced Driveshaft (5/6-Bolt Multi)
D-MAX Reinforced Driveshaft (5/6-Bolt Multi)
受取状況を読み込めませんでした
With high-grip tires and traction-enhancing parts appearing one after another in drifting, many people convert to GT-R suspension — but that requires replacing many parts such as knuckles, hubs, driveshafts and the differential, and these parts are becoming scarce and expensive. After several years of strength and grease testing, we are finally releasing the Reinforced Driveshaft for SR. Above all, its 5/6-bolt multi design bolts straight onto both 5-bolt and 6-bolt R200 differentials. The main shaft uses stronger steel and is thickened from the OEM 28Ф to 31.5Ф, delivering approx. 1.48 times the strength of OEM. A reinforced driveshaft developed specifically for the R200 differential.

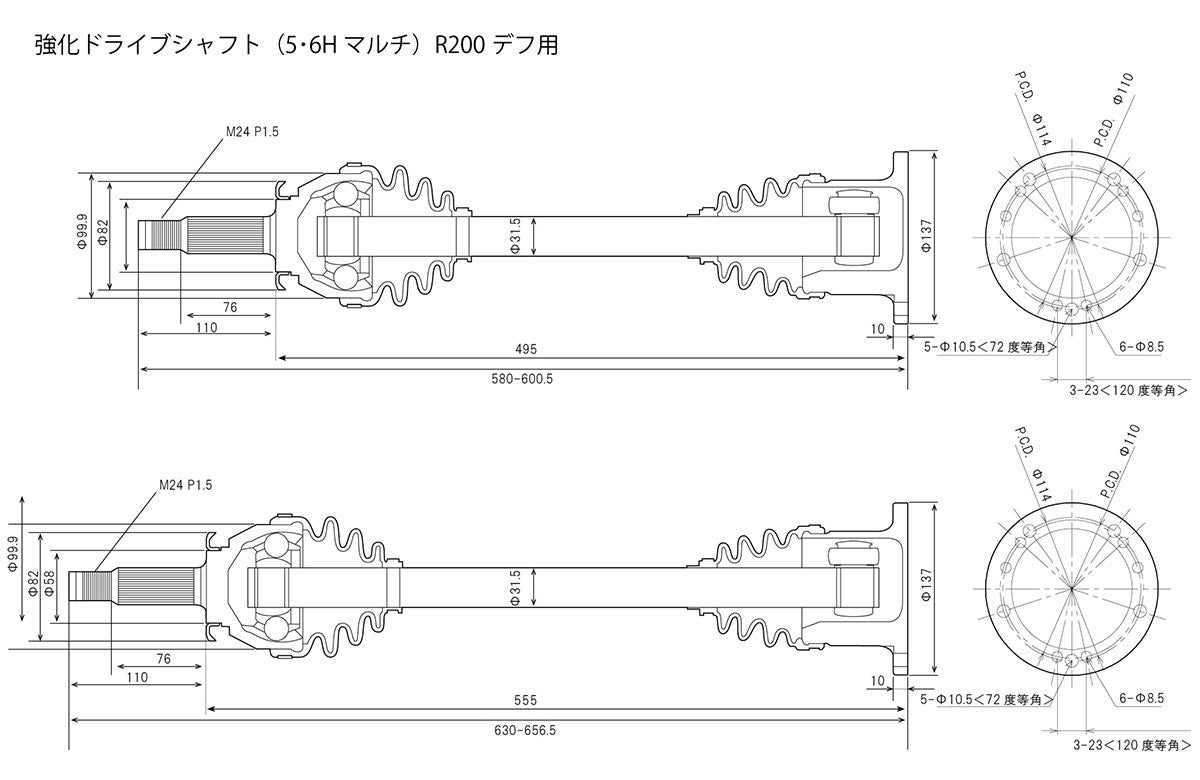

Reinforced driveshaft specifications
| Shaft diameter | 31Ф |
|---|---|

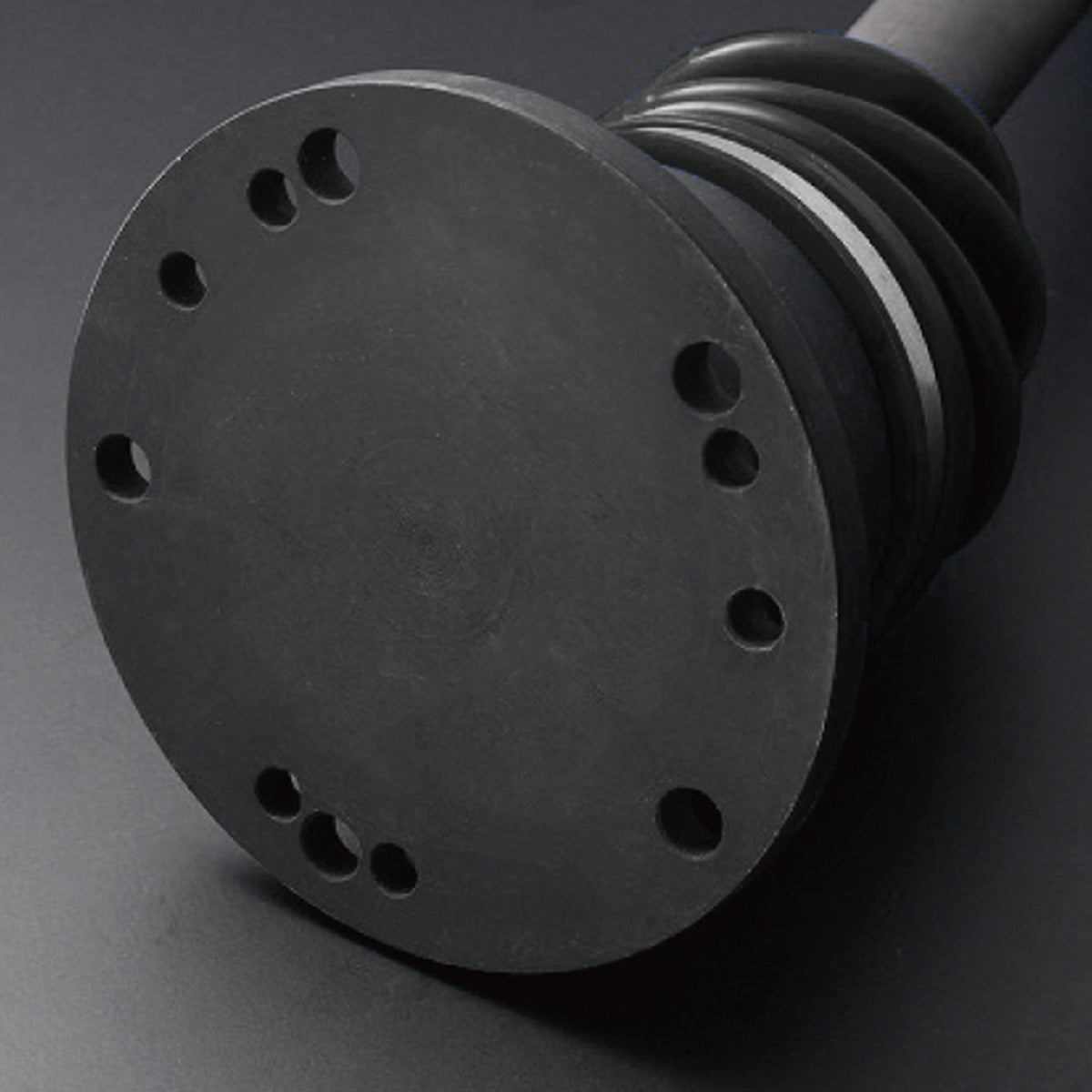

| Installation | 5-lug / 6-lug multi-hole pattern |

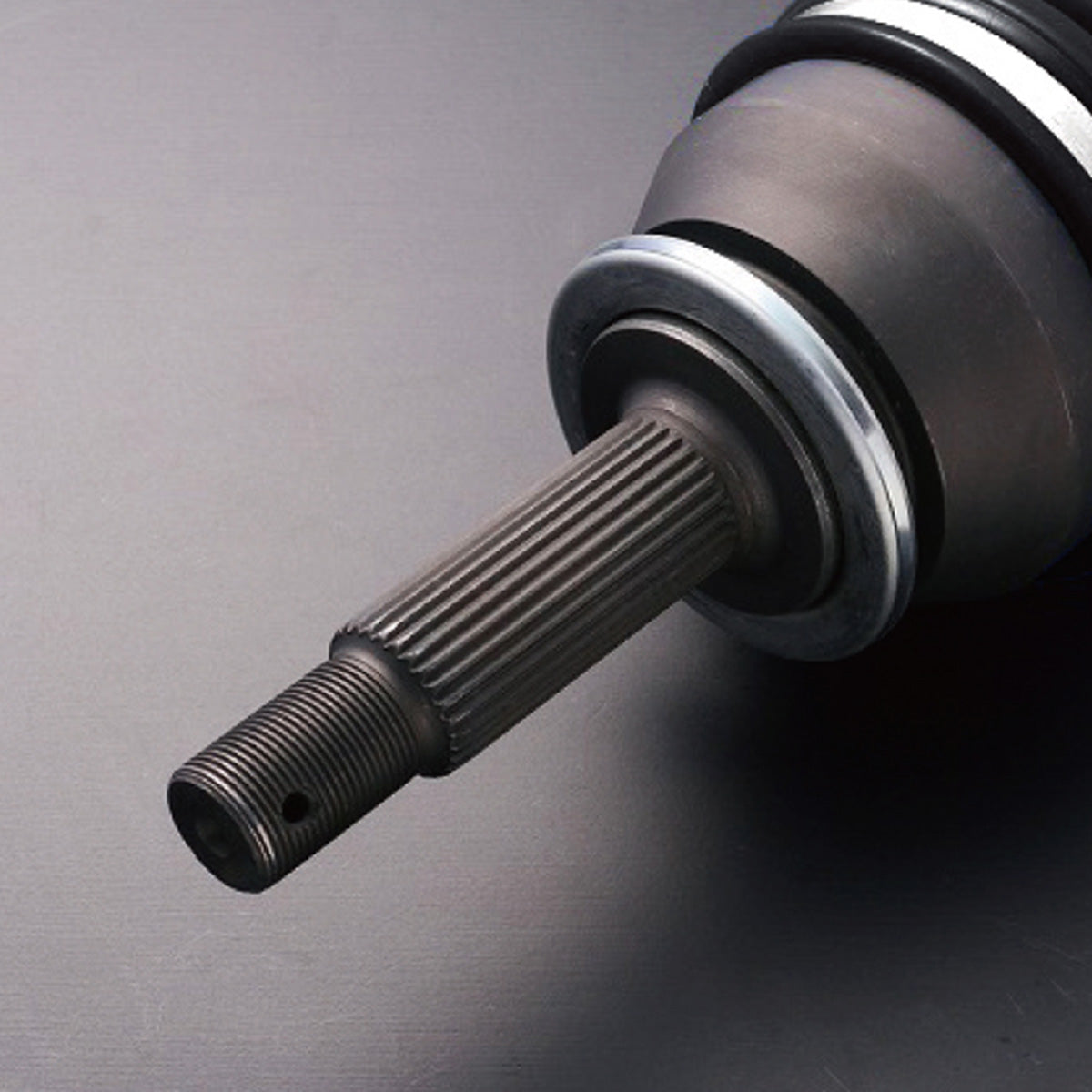

| Spline | OEM shape (GT-R hubs cannot be installed) |
| Grease | Co-developed with a Japanese manufacturer, pre-filled |
*For competition use, please use the high-durability Extreme Pressure Grease for Driveshafts.
*Recommended for up to approx. 400 PS.
Included accessories
| Nut | 2 pcs (to protect the splines) |
|---|---|
| Cotter pin | Not included — please use the OEM part. |
| Nut | Not included — please use the OEM part. |

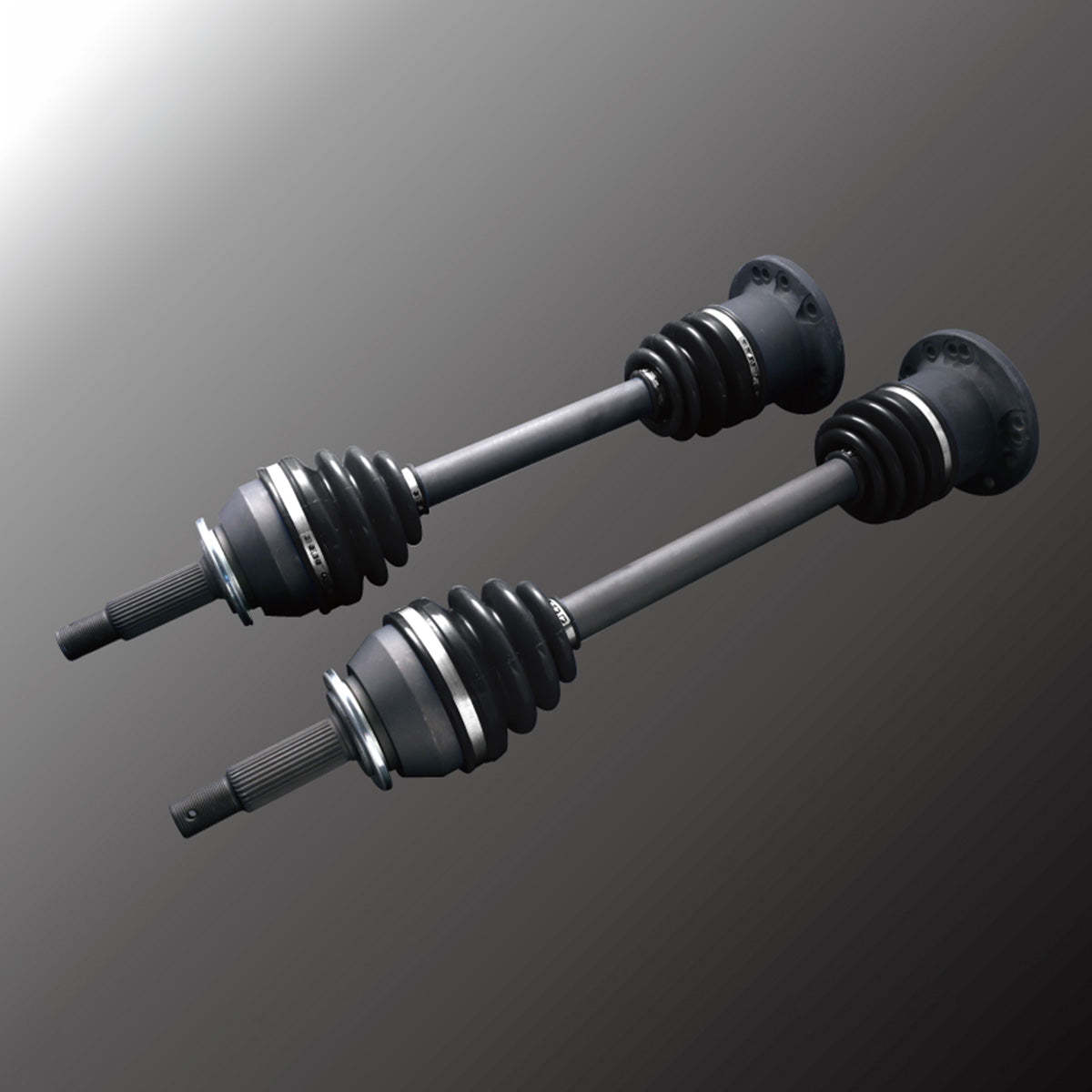

Contents
| Left & right set for one car |
|---|
| Right side / driver side (longer one) |
| Left side / muffler side (shorter one) |
Compatible chassis codes
| Compatible | (R)PS13/S14/S15/R32/R33/R34/C35 |
|---|---|
| Not compatible | Not compatible with 4WD or GT-R (side flange shape differs) |
About the nut on the hub side
*The supplied nuts are only for protecting the splines — always use the OEM nuts.
If mistakenly installed between the driveshaft and hub, this product may be damaged.
Competition use only. This product is a competition part intended for closed courses such as race tracks, or for display. Use on public roads may not comply with vehicle safety and emissions regulations. If used on public roads, it is the purchaser's responsibility to ensure the vehicle complies with all applicable laws. The purchaser assumes full responsibility for the use, installation and maintenance of this product, and for any damage resulting directly or indirectly from its use.
