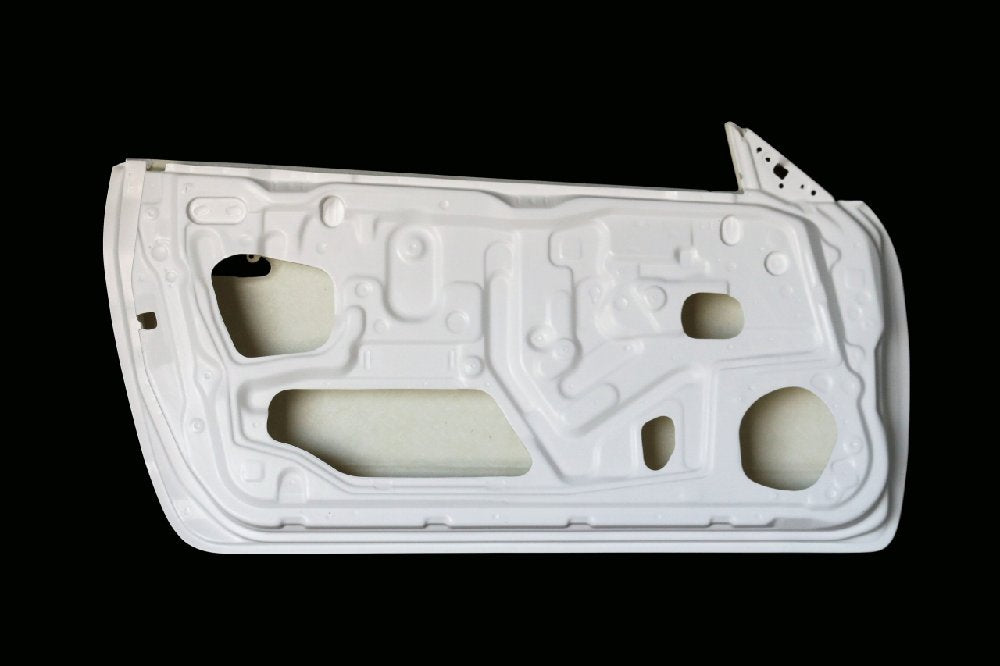

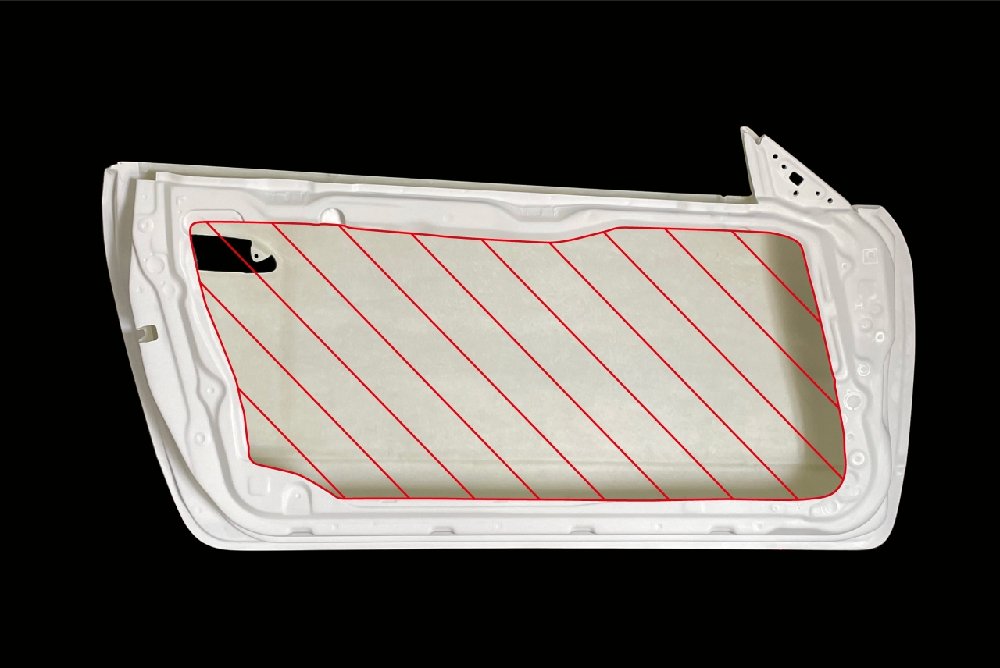

This product is available in two specs and two materials. The two specs are Standard and Race (focused on weight savings). The Standard spec is made in the same shape as stock throughout, so the glass and door panels can be used as normal. The Race spec omits the window regulator and door panel mounting points, as shown in the 4th image, saving approx. 600g. The two materials are a Hybrid version with a carbon outer surface and FRP inner, and a model using FRP both inside and out — choose the one that fits your build.
■ Contents
| Driver side | 1 pc |
| Passenger side | 1 pc |
*Sold per side only.
■ Specifications
| Standard | Accepts OEM parts. |
| Race | A spec focused on further weight reduction. |
*Modification is required to install this product.
■ Material: Carbon
| Surface | Carbon fiber reinforced plastic (clear coat finish) |
| Inner | FRP reinforcement ribs (white gelcoat) |
■ Material: FRP
| Surface | Fiber-reinforced plastic (white gelcoat) |
| Inner | FRP reinforcement ribs (white gelcoat) |
■ Weight
| Material | Specifications | Product weight (one side) | OEM weight (one side) |
| CARBON | Standard | Approx. 3.4kg | Approx. 17.1kg |
| CARBON | Race spec | Approx. 2.8kg | × |
| FRP | Standard | Approx. 3.7kg | Approx. 17.1kg |
| FRP | Race spec | Approx. 3.1kg | × |
*Even the FRP version is built with weight savings in mind, so there is almost no weight difference from carbon, but the carbon version is significantly stronger.
■ Compatible chassis codes / Notes
| S15 | Silvia |
*Quality is checked during manufacturing and before shipping, but due to the nature of FRP, air bubbles, small scratches or hairline cracks may occur — please apply filler as needed during prep work. Most damage occurs during shipping. *Aero parts (FRP) differ from steel parts and may require correction before painting. We cannot accept claims after painting or modification.
?
