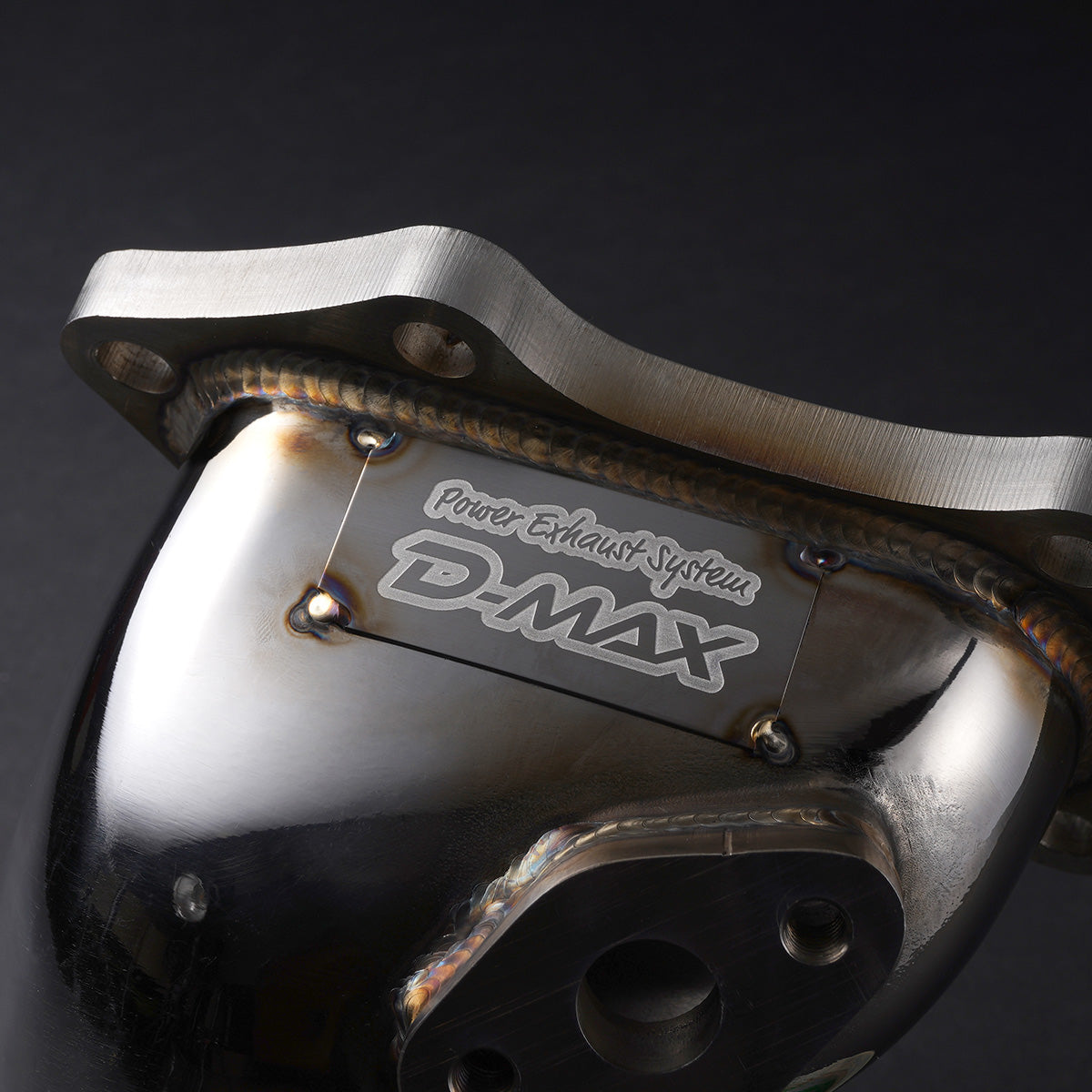

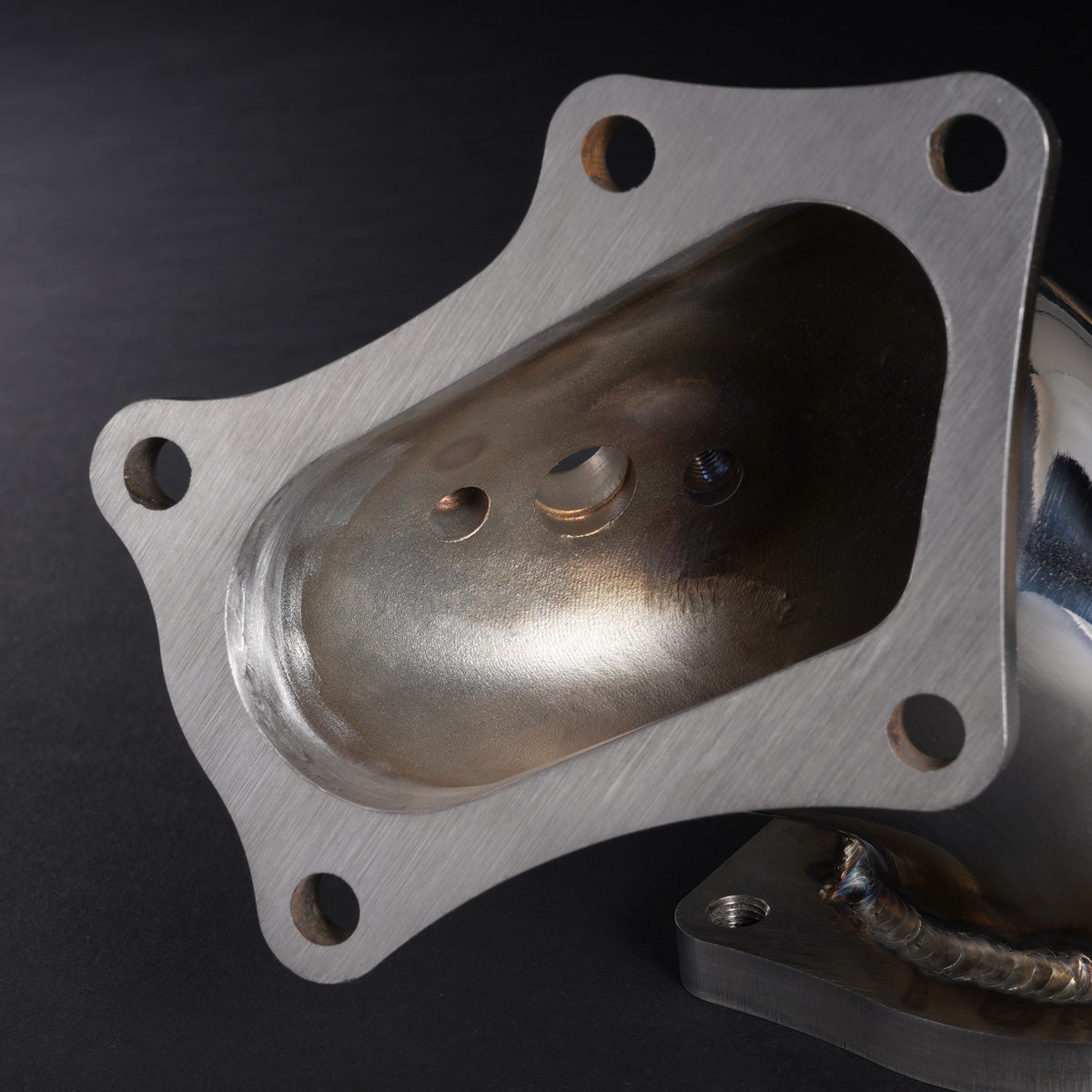

D-MAX Outlet Pipe Ver.STD (1JZ)

The outlet pipe is a key part for smoother, more efficient exhaust flow. To improve efficiency, it has evolved into a shape not possible with the OEM design, with greatly increased volume. Better exhaust efficiency and response unlock more performance.

Material

Stainless steel SUS304
Lost-wax casting

Specifications

Pipe thickness	1.5mm
Outlet diameter	76.3Ф
Volume	810cc

Included accessories

Stud bolt	Front pipe side: 3 pcs
Stud bolt	O2 sensor side: 2 pcs
Nut	3 pcs
Spring washer	3 pcs
Metal gasket	O2 sensor side: 1 pc

Fitment

JZX100 / JZX110 / JZX110W / JZZ30 late / JZS171 / JZS171W

*For 1JZ-GTE (with VVT-i) vehicles
