D-MAX Outlet Pipe Ver.GTR
D-MAX Outlet Pipe Ver.GTR
通常価格
$288.99 USD
通常価格
セール価格
$288.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした
Returned in limited quantities.
The key to an outlet pipe is increasing outlet volume, lowering secondary back pressure, improving exhaust efficiency and preventing exhaust interference. Compared with conventional designs, its deeper shape efficiently channels exhaust from the turbo toward the front pipe. The flange is made by lost-wax casting for excellent durability and rigidity. Designed to bring out the turbo's true performance when combined with a front pipe.
■ Material
| Stainless steel SUS304 |
| Lost-wax casting |

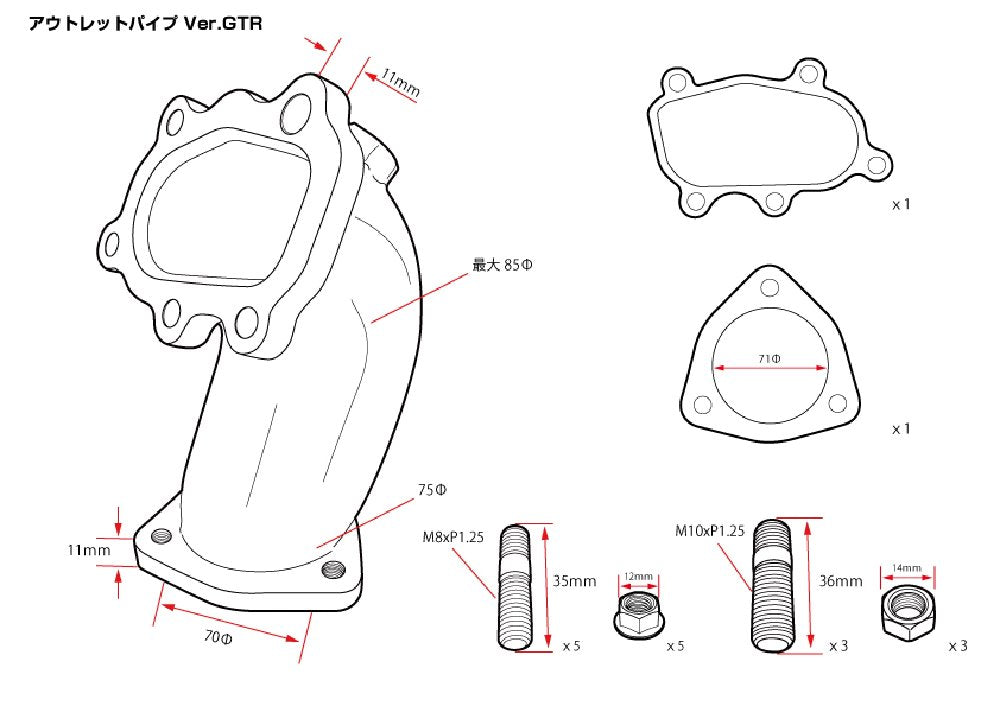

■Specifications
| Pipe thickness | 1.5mm |
| Outlet diameter | 75Ф ※STD=73Ф |
| Outlet inner diameter | 70Ф ※STD=67Ф |

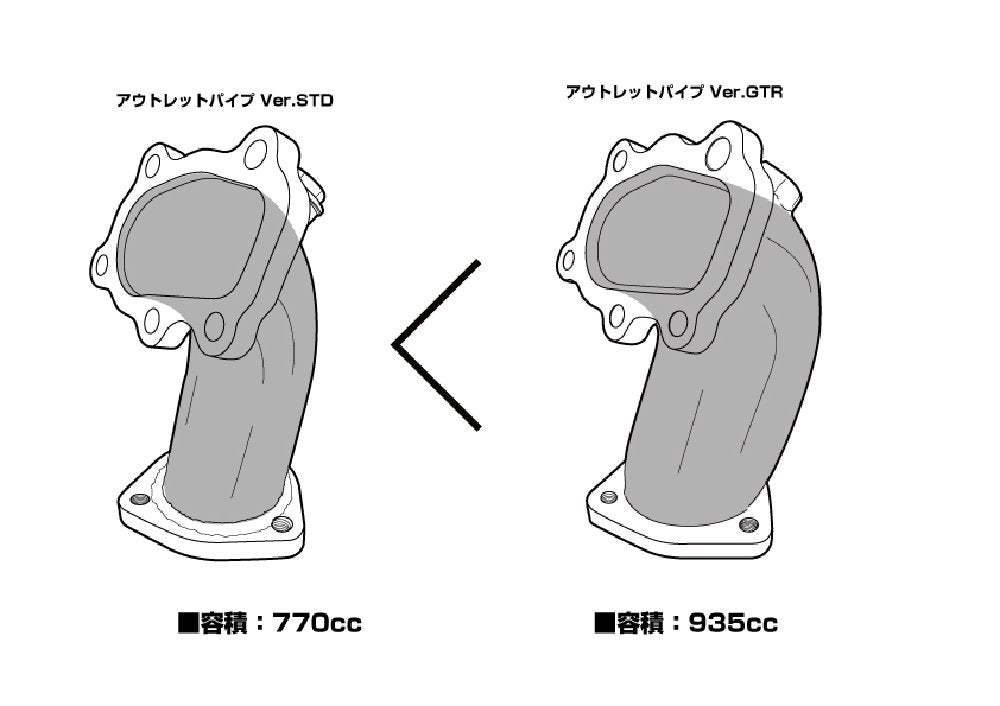

| Volume | 935cc ※STD=770cc |
| Stud bolt length | M8 P1.25 35mm M10 P1.25 36mm |
■ Included accessories
| Turbo side | Metal gasket |
| Front pipe side | Heat-resistant paper gasket |
| Stud bolt | 3 pcs |
| Nut | 3 pcs |
■ Compatible chassis codes
| S14/S15 |
*When installing on a red-top engine with a turbo upgrade, an O2 sensor adapter is required.
