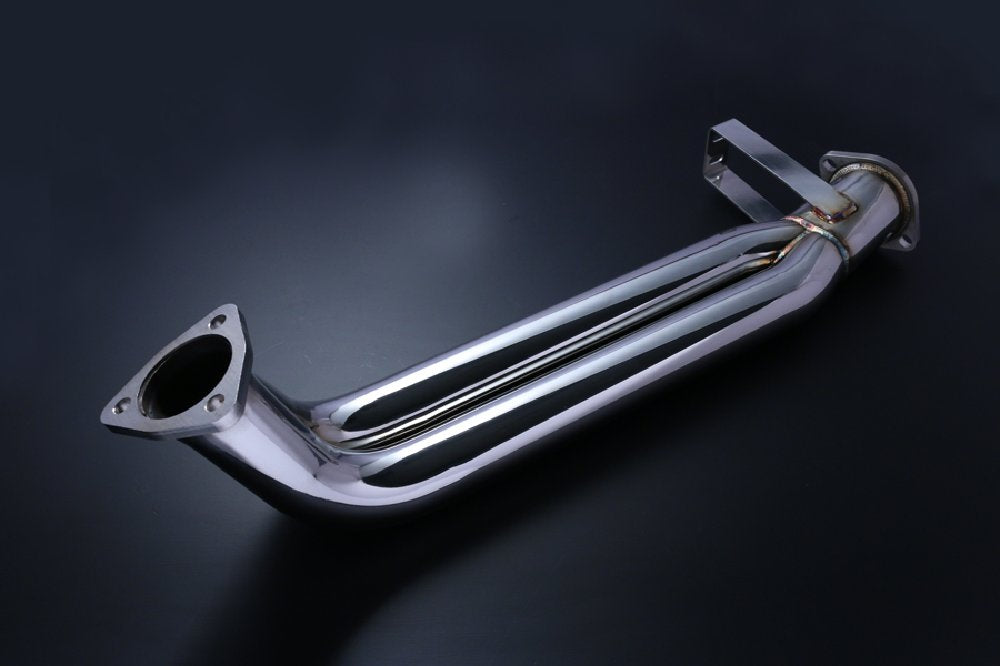

D-MAX Dual Front Pipe
D-MAX Dual Front Pipe
受取状況を読み込めませんでした

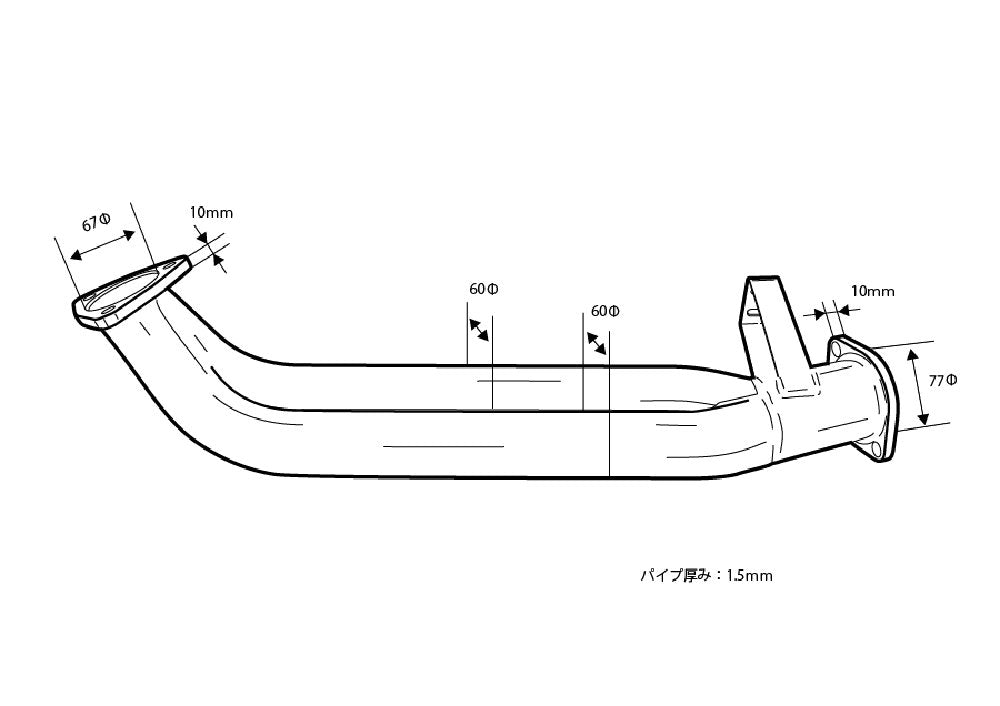

The 60Ф dual-pipe design allows the piping to sit higher, greatly reducing the chance of catching the flange on rough surfaces. Exhaust flows from the 73Ф outlet through the dual 60Ф pipes into 80Ф for improved efficiency, boosting pull from low to mid RPM — the ideal range for drifting.
■Specifications
| Main pipe diameter | 60Ф dual |
| Front pipe side | 70Ф |
| Catalyst side | 80Ф |
| Pipe material | Stainless steel SUS304 |
| Pipe thickness | 1.5mm |
| Flange thickness | 10mm |
■Included accessories
| Bracket | 1 pc |
| Bolt for bracket | 4 pcs |
| Nut for bracket | 4 pcs |
| Bolt | 2 pcs |
| Spring washer | 2 pcs |
| Nut | 2 pcs |
*Included accessories may change depending on the production lot.
■Compatible engines /Chassis code
| Chassis code | RPS13/PS13/S14/S15 |
| Engine | SR20DET |
*On stock-turbo S13 vehicles the turbo is small and sits differently, so this product may interfere with the floor.
*On vehicles with aftermarket engine mounts, this product may interfere with the floor.
In the above cases, adjustment with adapters or modification of the floor may be required.
If it sits close to the floor, wrap it with heat wrap for heat protection.
