D-MAX D1SPEC Tie Rod End, Pillow Ball Type

D-MAX D1SPEC Tie Rod End, Pillow Ball Type

$97.99 USD
$97.99 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Vehicle

Improves steering response and front tire feel. Setting it correctly also reduces load on the tie rods. Since drift setups change to suit each course, converting to pillow balls adds strength and keeps geometry correct.
■Specifications


Pillow ball outer diameter 39Ф
Pillow ball inner diameter 14Ф
Rod diameter 24Ф
Rod length Same as OEM

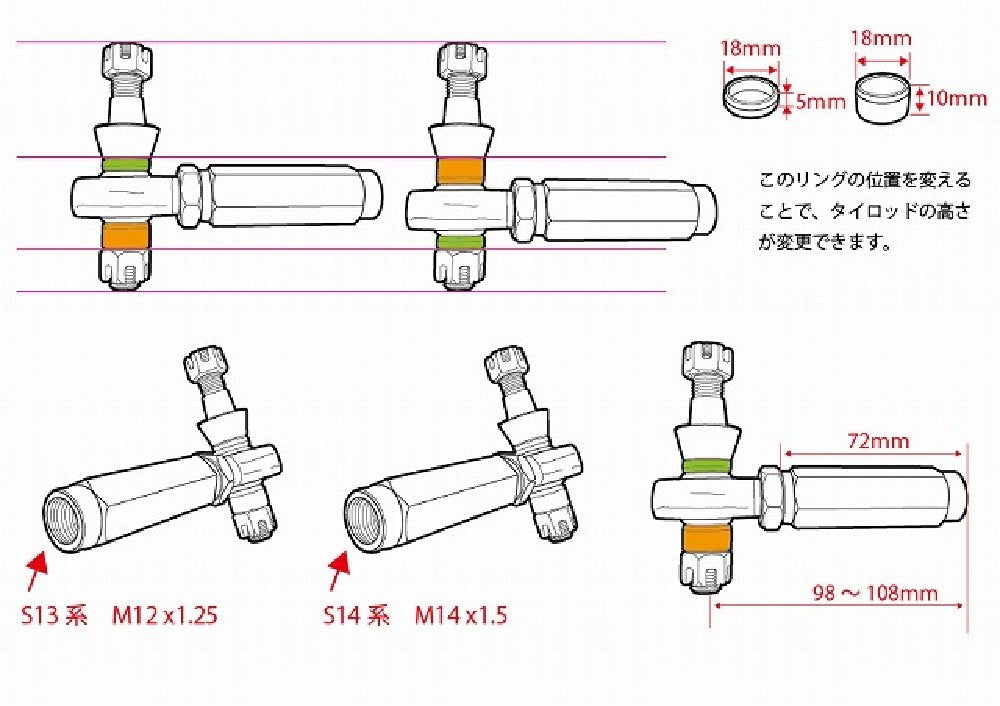

Roll center adjustment range Height adjustable from 0mm to 15mm (using the included washers)
Adjustment method Turnbuckle type
Adjustment thread pitch 1.5mm
Adjustment range 10mm
Adjustment pitch / S13 series 1.25mm
Adjustment pitch / S14 series 1.5mm

■Material


Rod section Duralumin 6061-T6

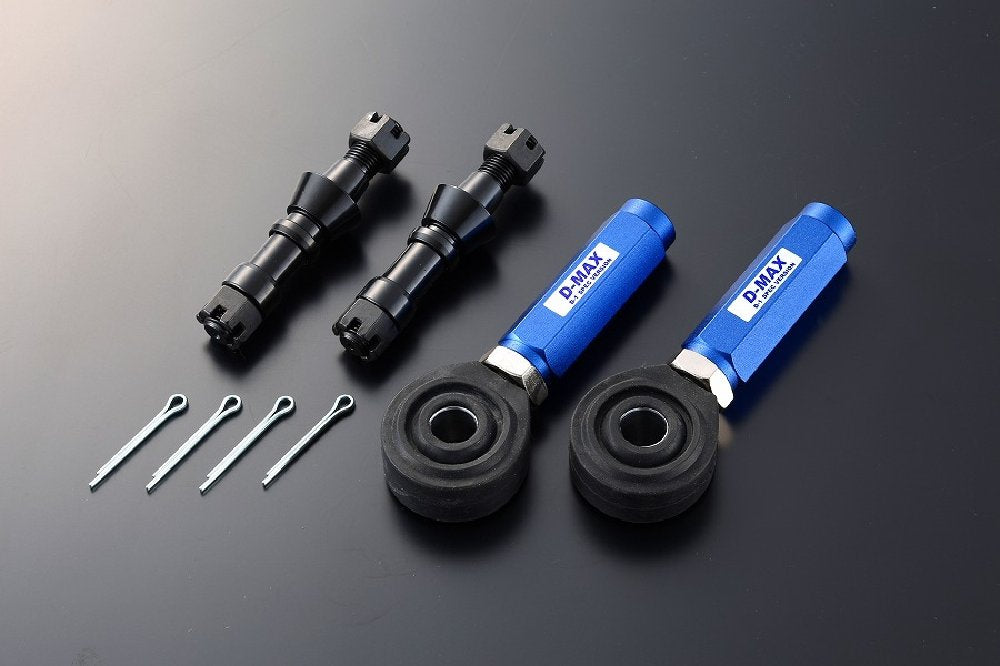

■Included accessories


Nut 4 pcs
Cotter pin 4 pcs
Roll center adjustment collar 2 large / 2 small
Pillow ball rubber cover 2 pcs / standard equipment

■ Compatible chassis codes


S13 series (M12) (R)PS13 / S15 (without HICAS)
S14 series (M14) S14 / S15 (with HICAS)
A31/C33/ECR33/ER34/C34/C35/HCR32

*Varies by vehicle, but can only be installed when used together with our tie rods.
*On vehicles with OEM knuckles, proper alignment may not be achievable.
