D-MAX D1SPEC Suspension Kit (180SX/S13)
D-MAX D1SPEC Suspension Kit (180SX/S13)
通常価格
$1,264.99 USD
通常価格
セール価格
$1,264.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした

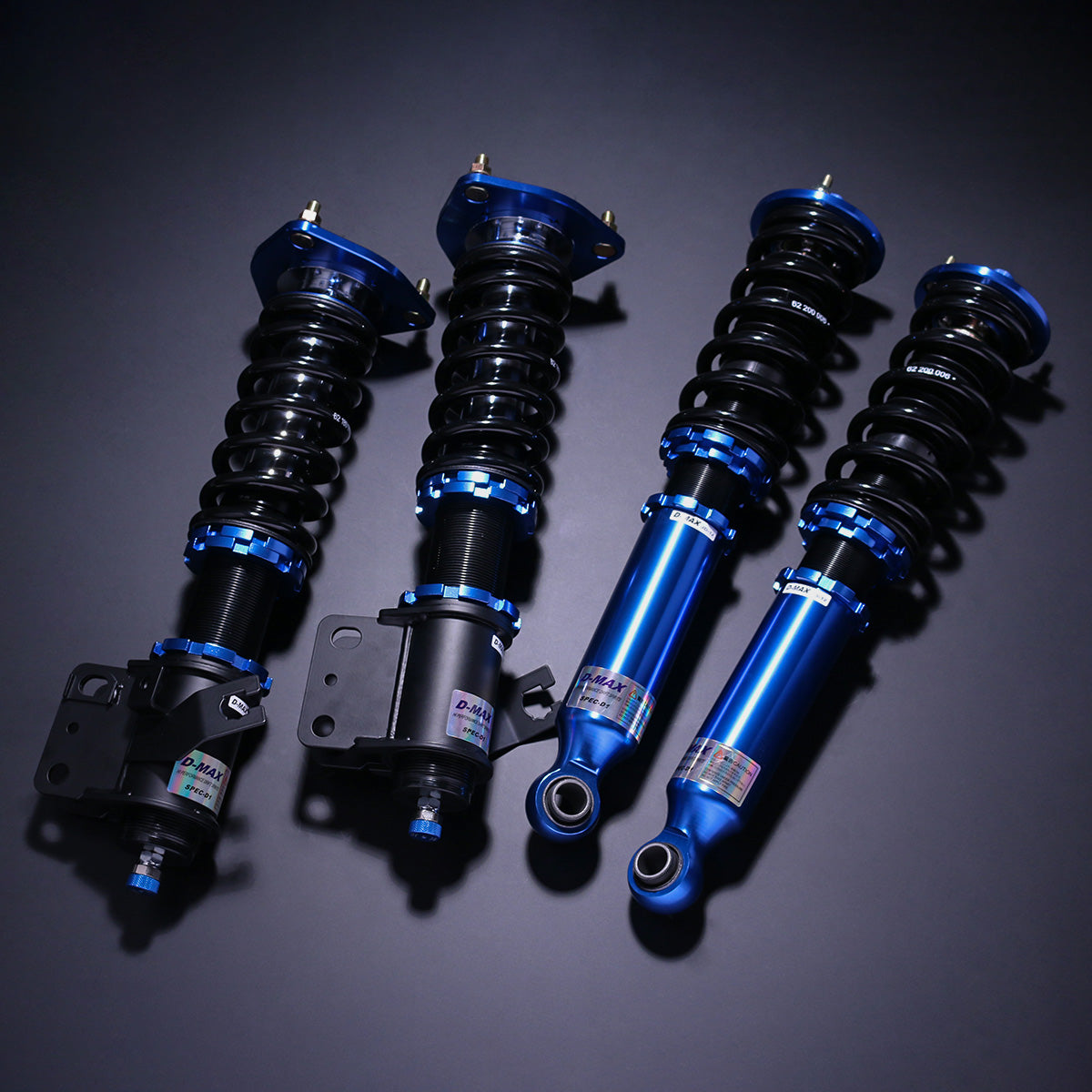

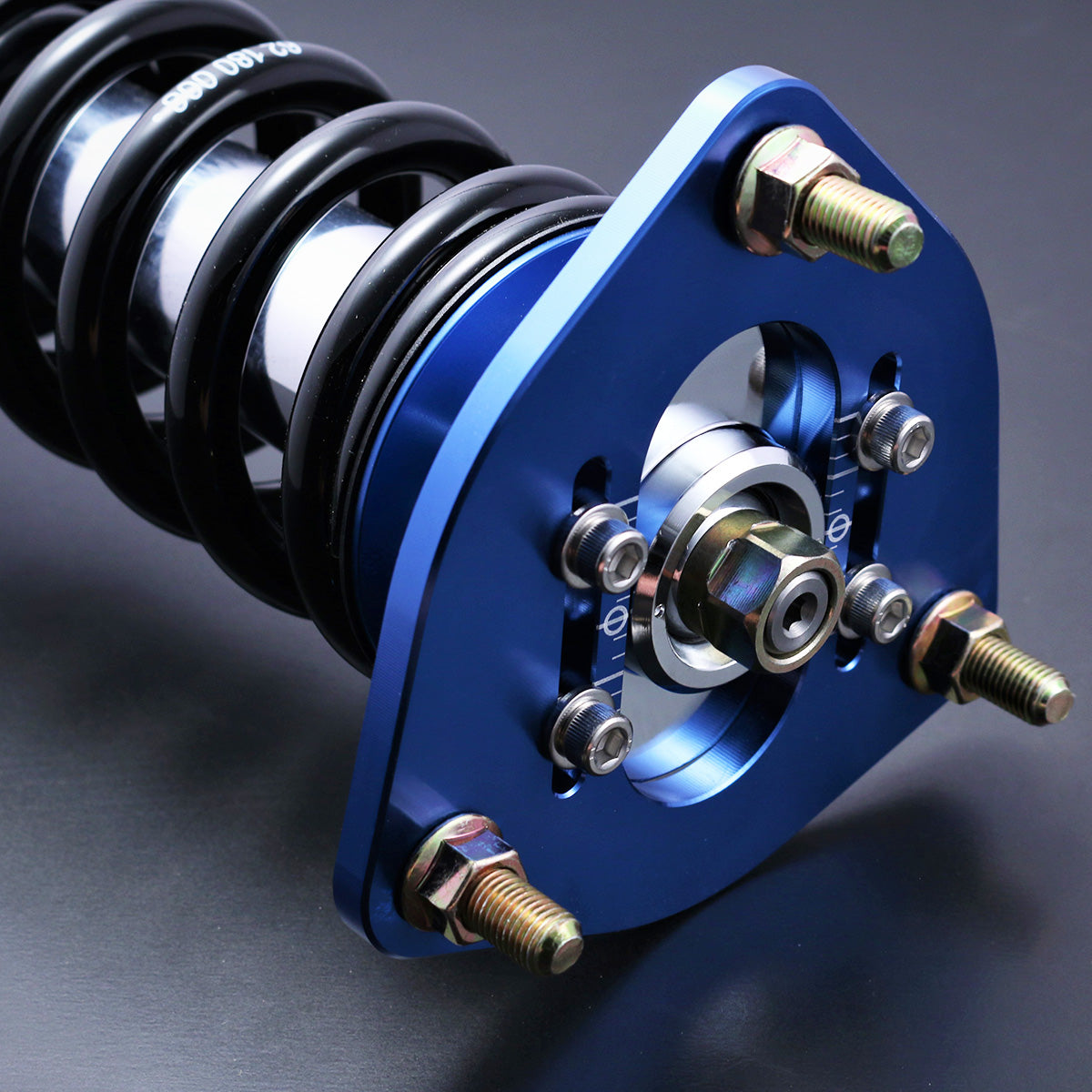

D-MAX D1SPEC is a suspension built for everything from street driving to the circuit. Its duralumin pillow-ball adjustable upper mounts combine strength with precise camber adjustment, and generous rear stroke prioritizes control and traction while drifting.
Compatible chassis codes
RPS13/KRPS13/KRS13/RS13/S13/KS13/PS13/KPS13
Specifications
| Item | Front | Rear |
|---|---|---|
| Type | Inverted | Conventional |
| Free length | 180mm | 200mm |
| Spring rate | 8Kgf/mm | 6Kgf/mm |
| Spring | Linear | Linear |
| Inner diameter | 62Ф | 62Ф |
| Upper mount | Pillow ball | Pillow ball |
| Overall length adjustment | Fully threaded | Fully threaded |

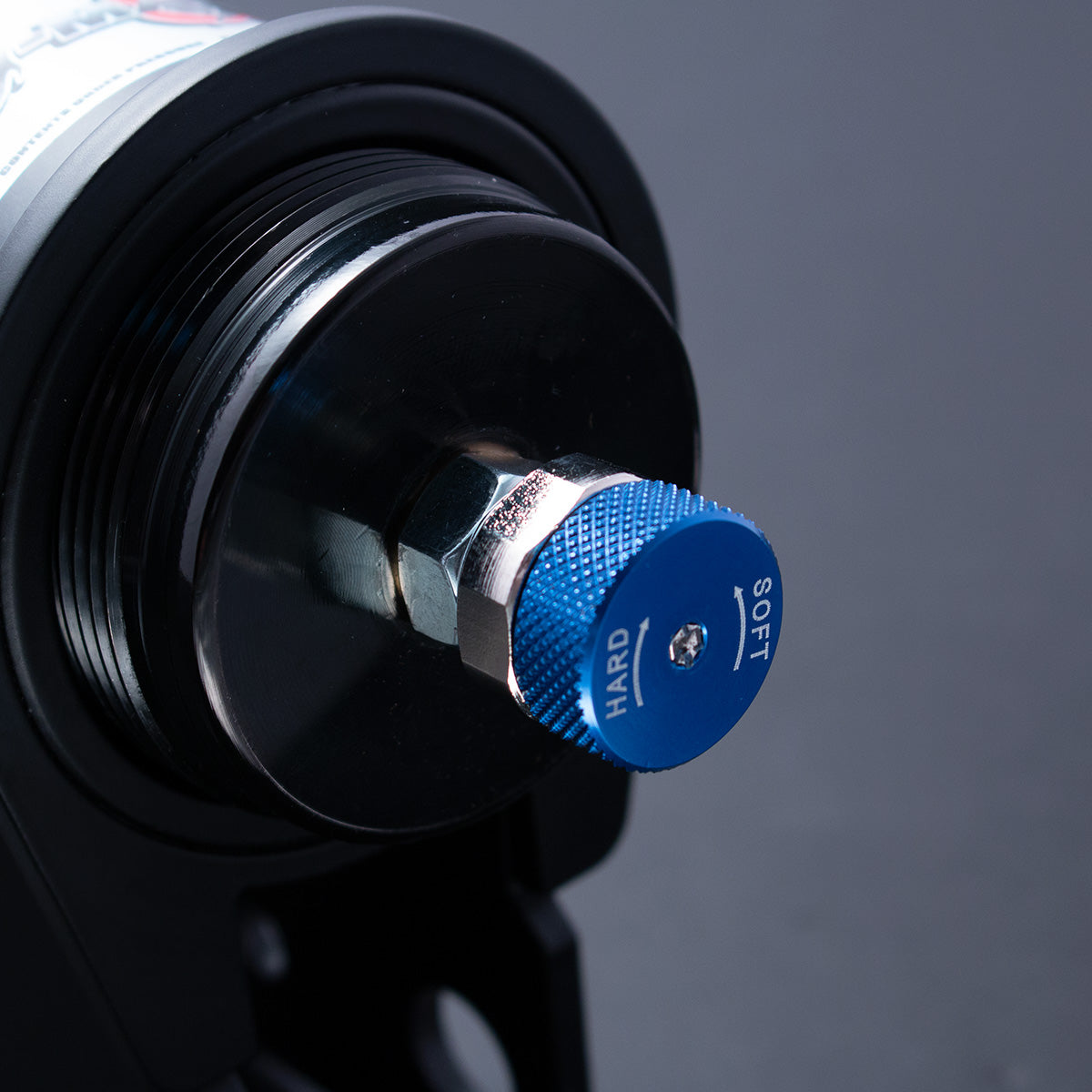

| Damping adjustment | 30-click dial | 30-click dial |

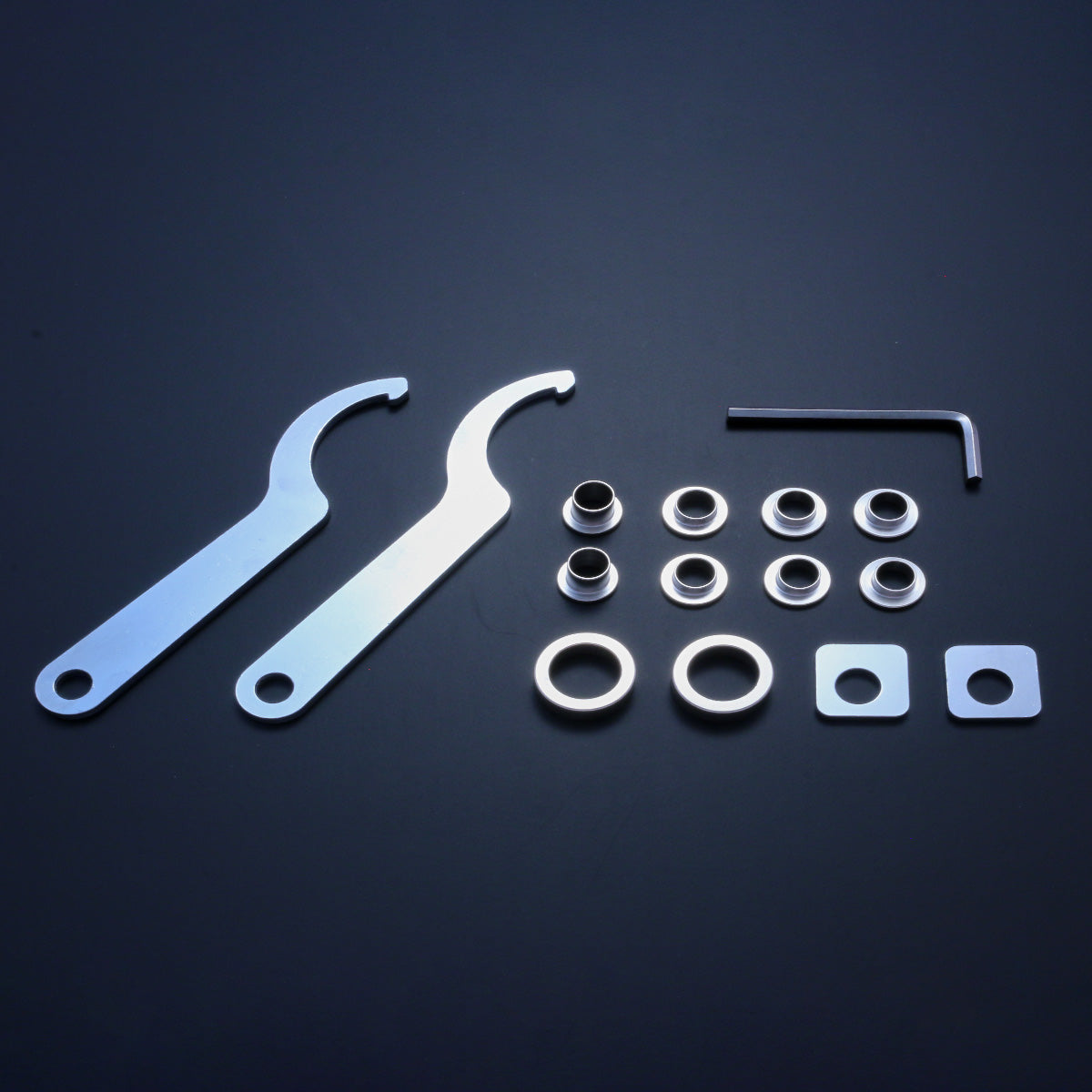

Included accessories

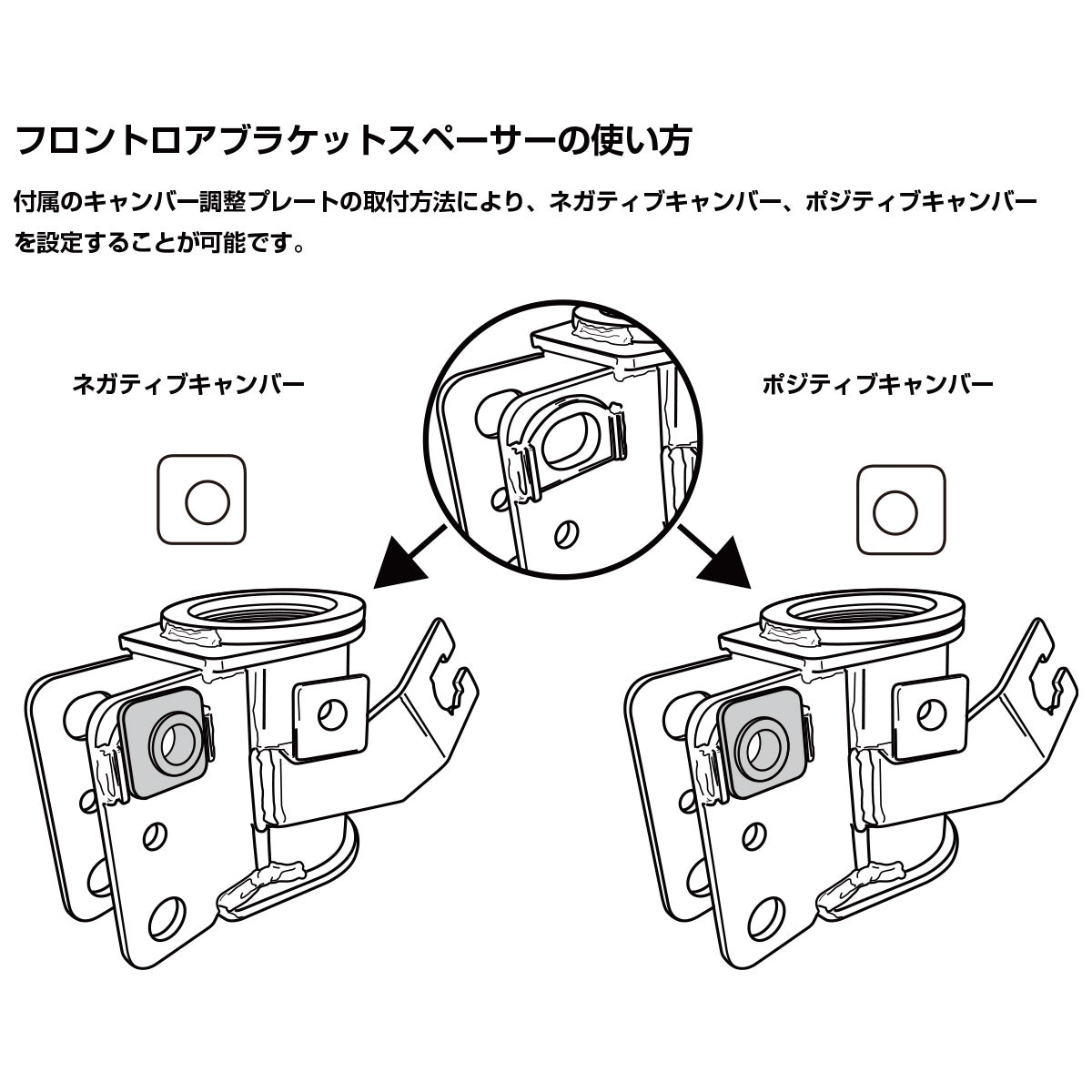

| Camber adjustment plate | 2 pcs |
|---|---|
| Rear bracket spacer | 2 pcs |
| Collar for front lower bracket | 8 pcs |
| Coilover wrench | 2 pcs |
| Hex wrench | 1 pc |
Spring rate change
| Position | Free length | Available spring rates | Inner diameter |
|---|---|---|---|
| Front | 180mm | 9/10Kgf/mm | 62Ф |
| Rear | 200mm | 7/8Kgf/mm | 62Ф |
*Custom spring rates available (additional cost)
