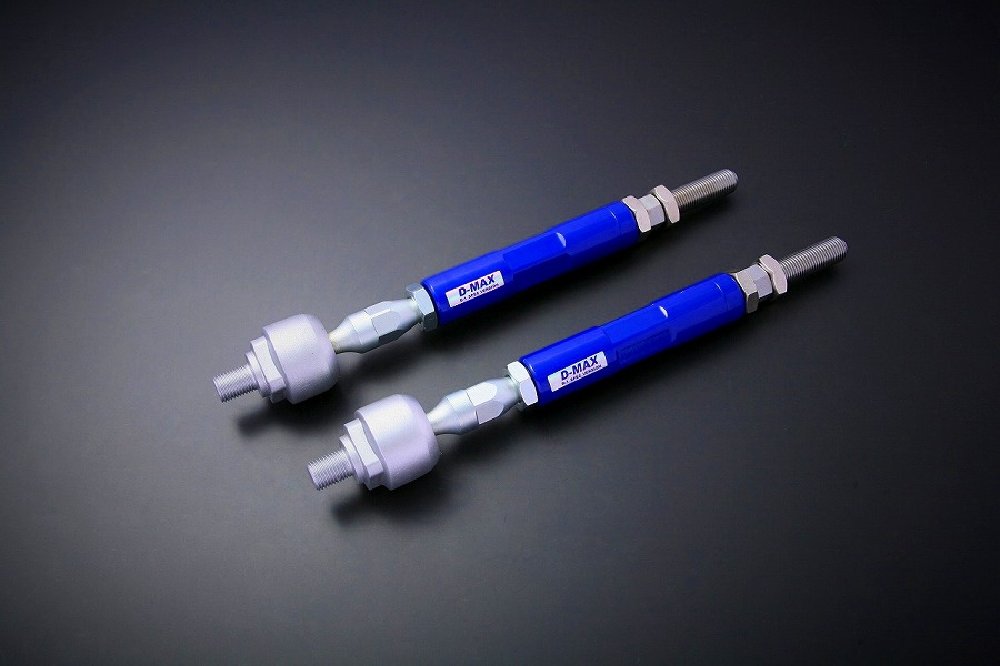

D-MAX D1SPEC Reinforced Tie Rod Type R (JZX)

The D1SPEC Reinforced Tie Rod Type R offers a much wider adjustment range than our previous reinforced tie rod, so it works with extended lower arms or short knuckles without any additional parts. It also fits vehicles with OEM knuckles. Many reinforced tie rods increase steering angle by adding a spacer, but the D-MAX part is machined as a single piece, increasing both strength and steering angle. The turnbuckle design lets you adjust length with the rod installed on the car.

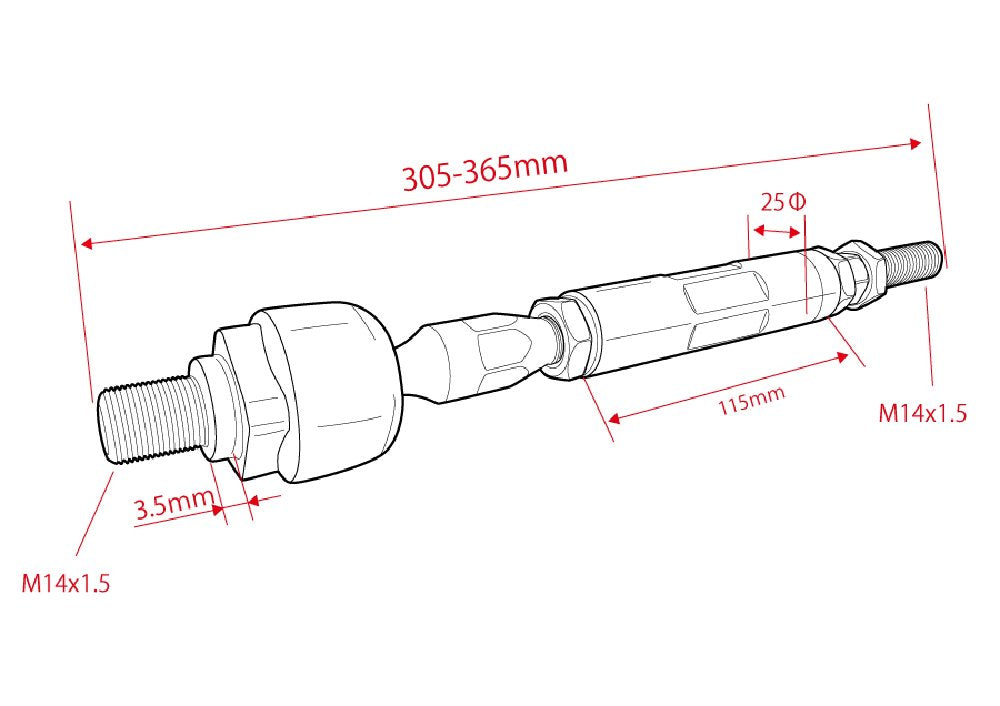

■Specifications

*Greatly increased steering angle vs. OEM — equivalent to a 3mm washer / compatible with extended lower arms and short knuckles

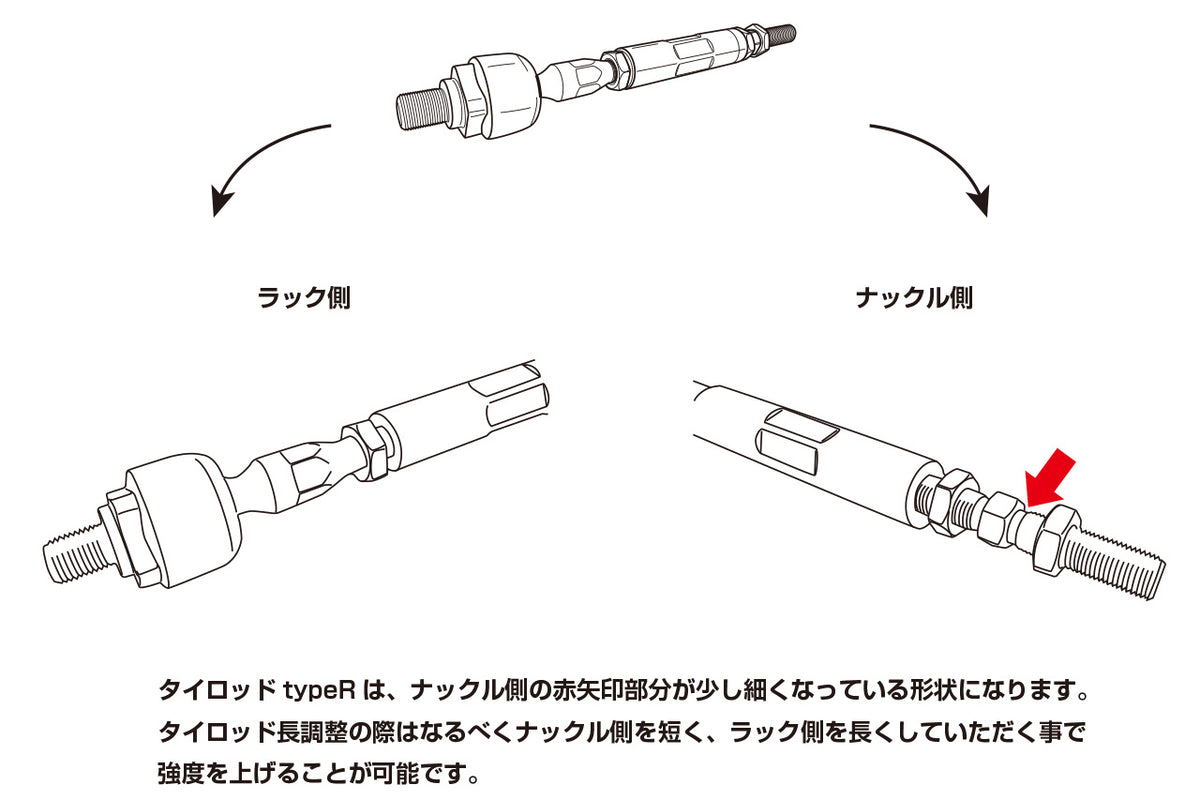

*When installing this product, make adjustments on the rack side.

■Compatible chassis codes
