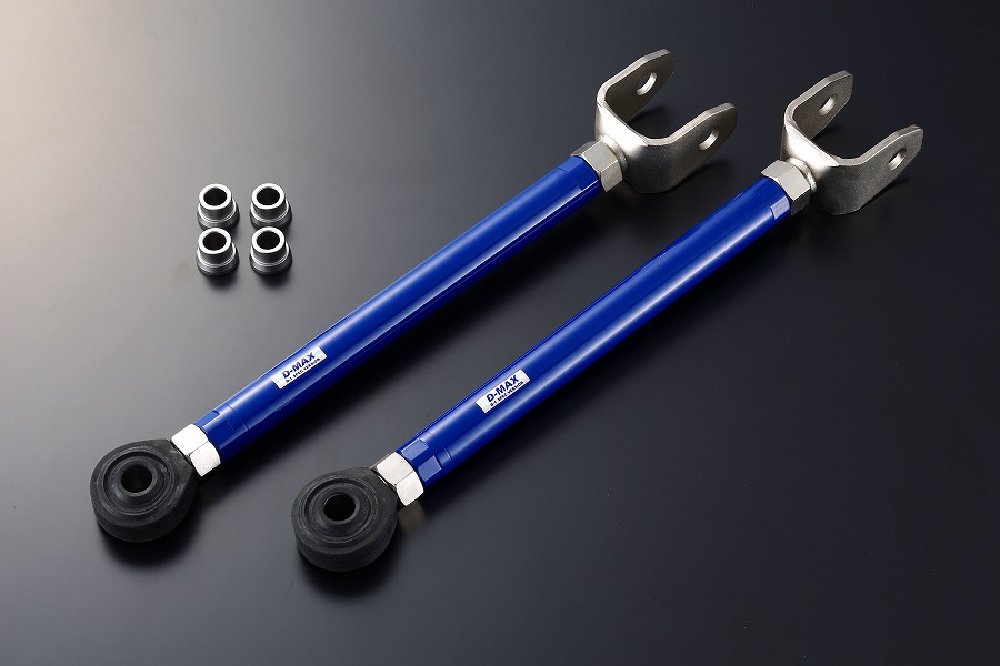

D-MAX D1SPEC Rear Pillow Ball Tension Rod
D-MAX D1SPEC Rear Pillow Ball Tension Rod
通常価格
$187.99 USD
通常価格
セール価格
$187.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした

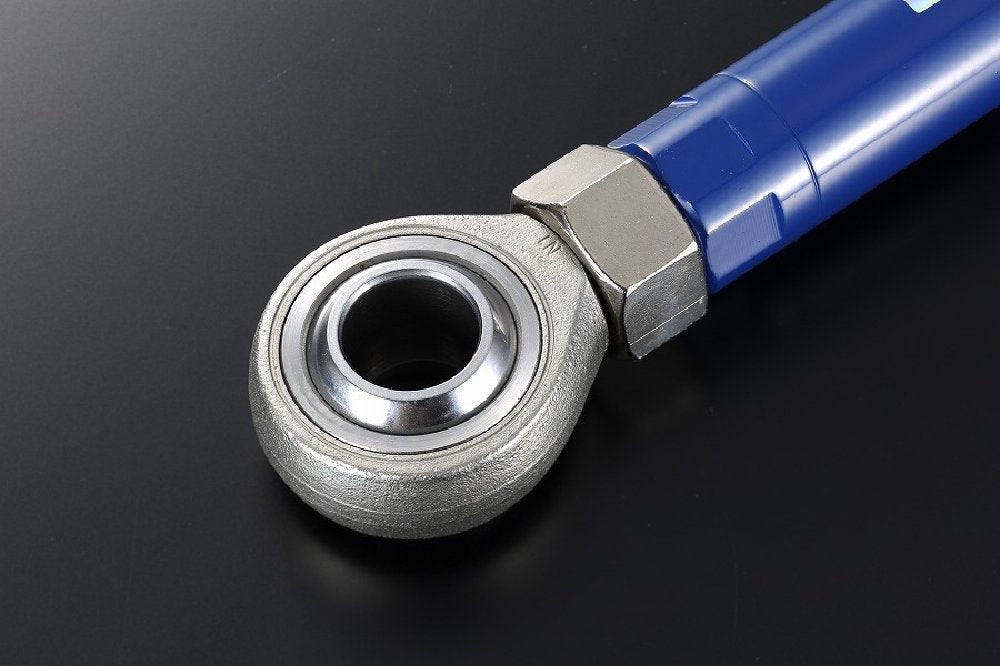

The pillow ball tension rod converts the OEM tension rod's rubber bushing to a pillow ball, suppressing toe change under acceleration and braking and allowing the lower arm to move only vertically with load changes as intended. It also stabilizes the chassis under braking and cornering and sharpens steering response. Wheelbase becomes adjustable. OEM bushings let alignment shift while driving; pillow balls suppress those changes for stable driving.
■Specifications
| Rod diameter | 25Ф |
| Rod thickness | 6mm |
| Pillow ball outer diameter | 45Ф |
| Pillow ball inner diameter | 18Ф |
| Adjustment method | Turnbuckle type |
| Adjustment thread pitch | 1.5mm |
| Adjustment range | 35mm |
■Included accessories
| Collar | 4 pcs |
| Pillow ball rubber cover | 2 pcs / standard equipment |
■Compatible chassis codes
| Compatible | GX90/JZX90/GX100/JZX100 |
| Not compatible | 4WD versions of the above vehicles, JZX110 / SXE10 / JZA80 / JZZ30 / JZS160 |
*Pillow Ball Rear Lower Arm + Pillow Ball Rear Toe Control Arm + Rear Pillow Tension Rod

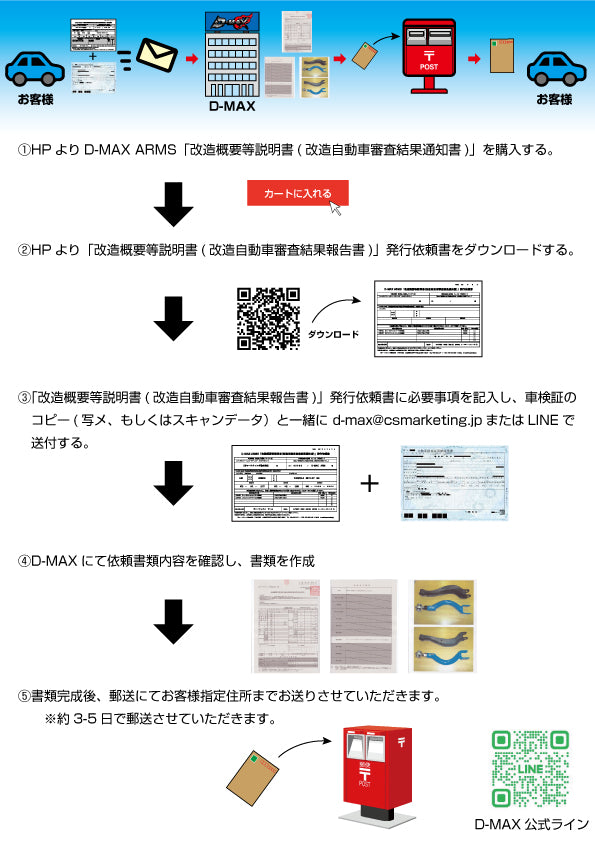

*For applicable GX100 / JZX100 chassis codes, a modification certificate (Japanese vehicle inspection report) has been obtained.
