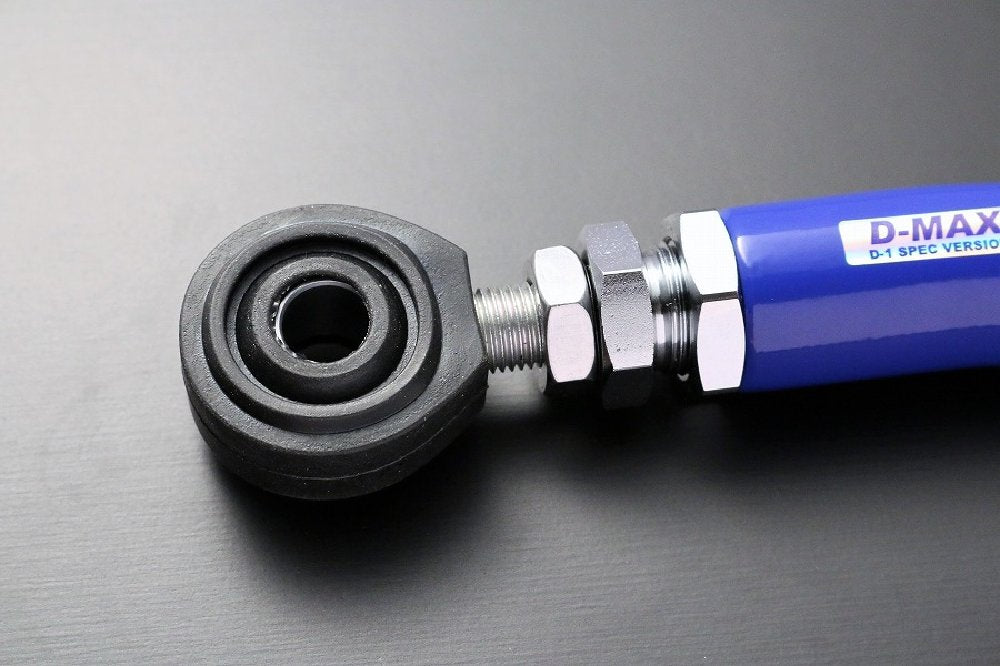

D-MAX D1SPEC Pillow Ball Rear Toe Control Rod (Ver.2)
D-MAX D1SPEC Pillow Ball Rear Toe Control Rod (Ver.2)
受取状況を読み込めませんでした
Like Ver.1, it corrects the unstable behavior of a lowered rear suspension. Adjusting toe lets you change the rear understeer/oversteer balance; the OEM adjustment range was narrow and limited. The biggest feature of Ver.2 is the offset rod, which prevents arm lock. The rod body is a turnbuckle design, and a second turnbuckle on the pillow-ball side allows fine adjustment after installation. Because the member side and knuckle side can be adjusted to equal length, load on the threads — the most stressed area — is reduced. It also makes it easy to respond to sudden changes in track conditions.

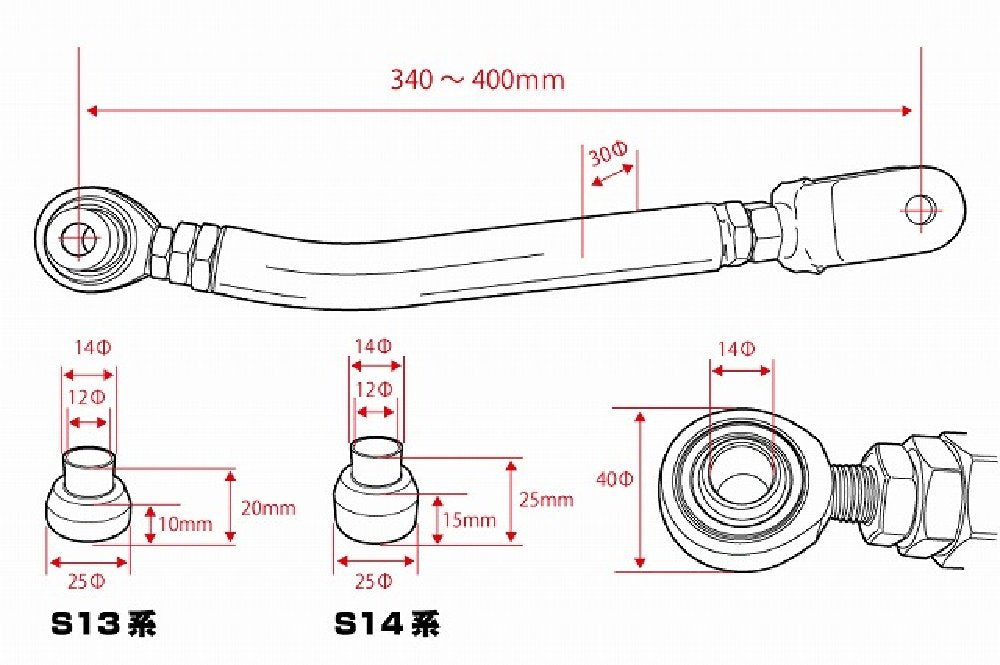

■ Specifications
| Rod diameter | 30Ф |
| Rod thickness | 6mm |
| Pillow ball outer diameter | 40Ф |
| Pillow ball inner diameter | 14Ф |
| Adjustment method | Turnbuckle type |
| Adjustment pitch | 1.5mm |
| Adjustment range | 55mm |
■Included accessories
| Collar | 4 pcs |
| Pillow ball rubber cover | 2 pcs / standard equipment |
■Compatible chassis codes
| S13 series | (R)PS13/A31/C33/HCR32/HNR32/Z32 |
| S14 series | S14 / S15 / R33 / R34 / C34 / C35 / C34 Stagea / C34 Laurel / Y32 / Y33 / HR34 |
| Not compatible | HCR32 with ABS / with HICAS |
*When purchasing the D1SPEC Pillow Ball Rear Upper Arm, D1SPEC Pillow Ball Traction Rod and D1SPEC Pillow Ball Rear Toe Control Rod
A set price is available when purchased together.
