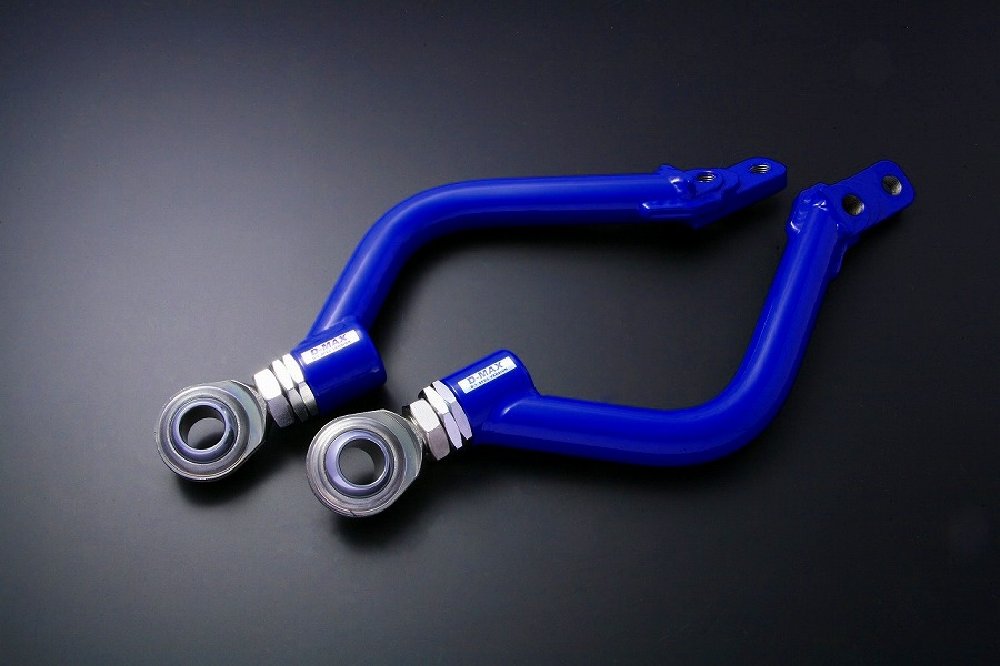

D-MAX D1SPEC Front Pillow Ball Tension Rod
D-MAX D1SPEC Front Pillow Ball Tension Rod
通常価格
$273.99 USD
通常価格
セール価格
$273.99 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした

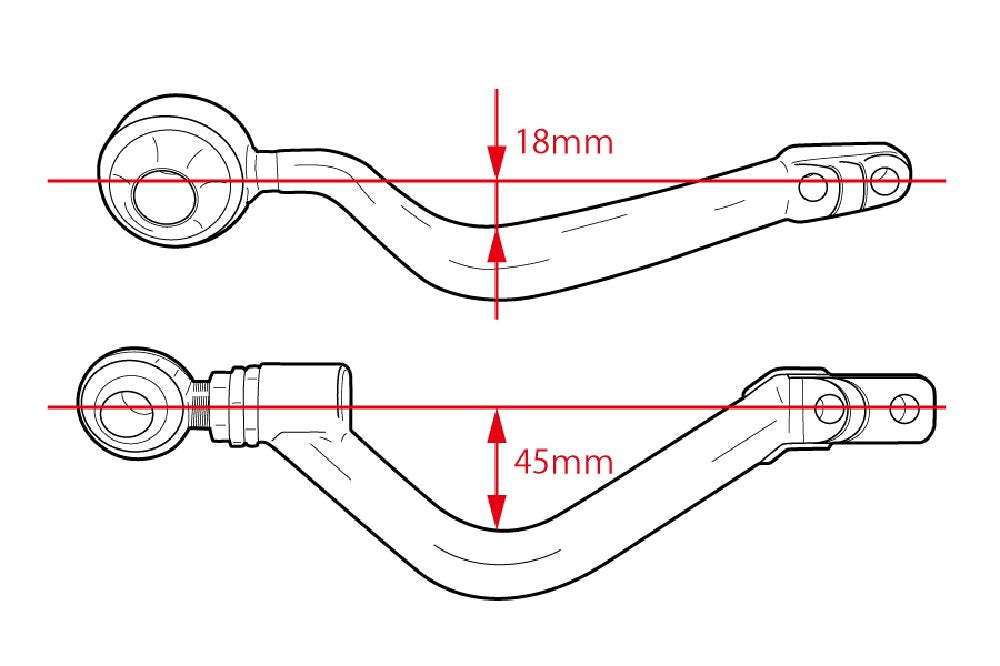

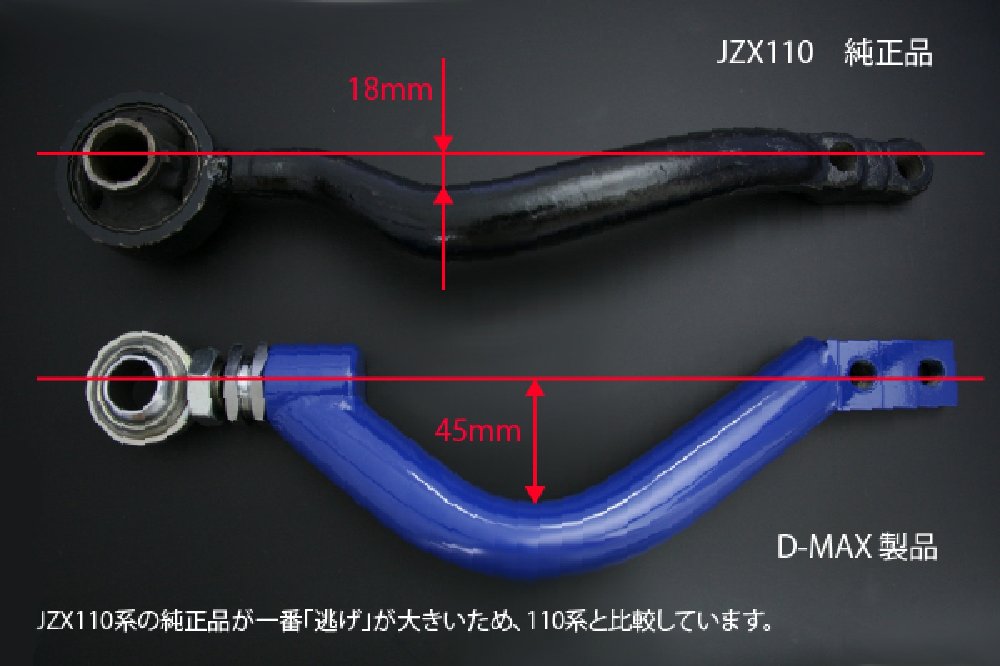

Based on the OEM JZX110 tension rod with greatly improved clearance (+27mm more clearance vs. the OEM JZX110 part). Strength has been proven through repeated testing by D1GP drivers. Besides improving steering feel and cornering, it greatly expands suspension setup options on 90/100 series cars, where increasing steering angle used to be limited.

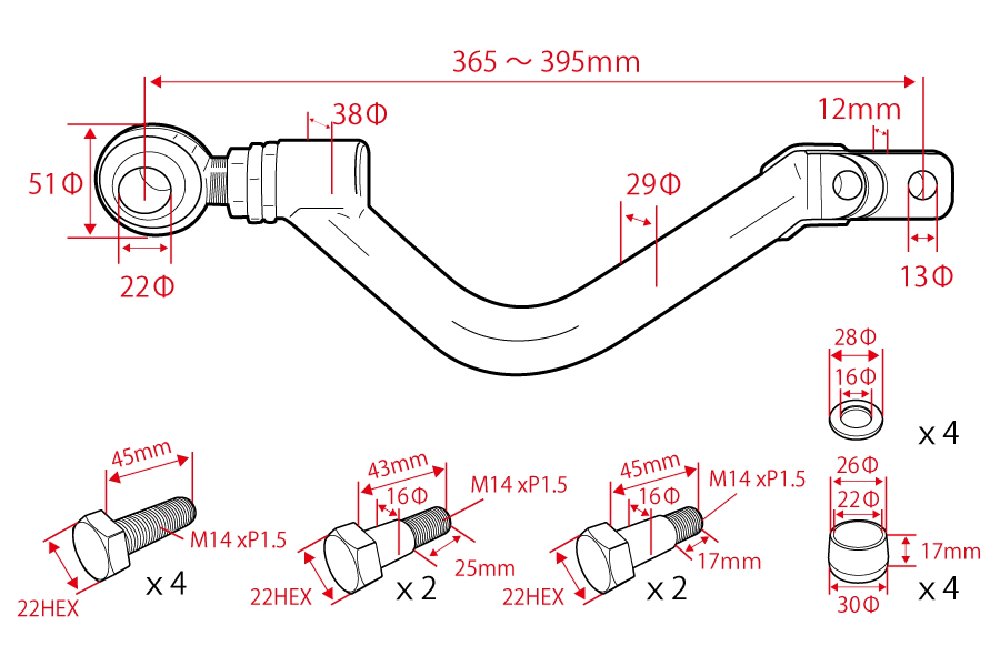

■Specifications
| Rod diameter | 29Ф |
| Rod thickness | ― |
| Pillow ball outer diameter | 51Ф |
| Pillow ball inner diameter | 22Ф |
| Adjustment method | Turnbuckle type |
| Adjustment thread pitch | 1.5mm |
| Adjustment range | 30mm |

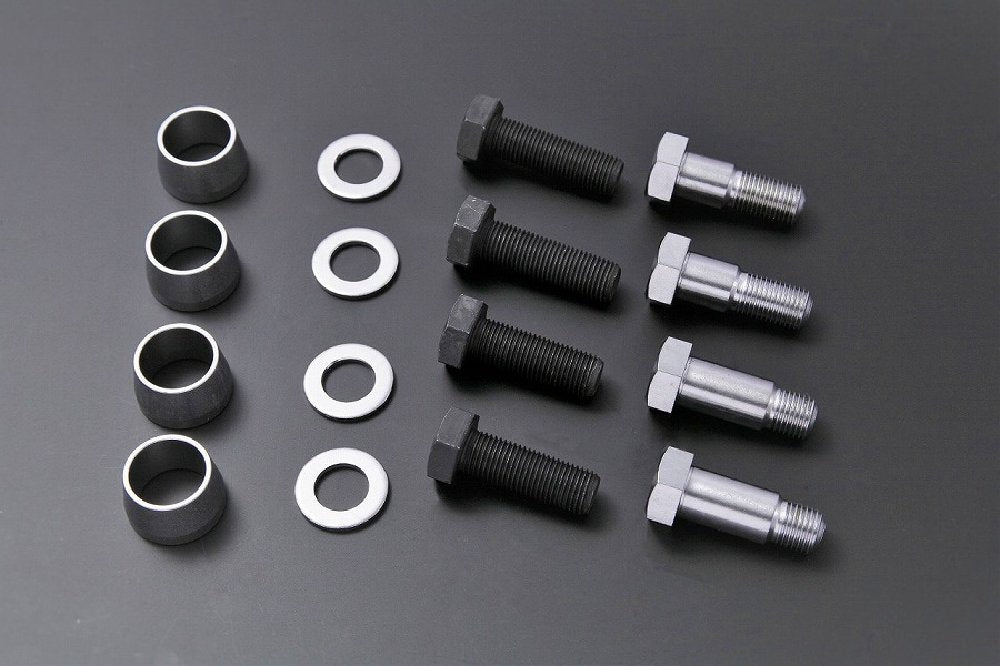

■Included accessories
| Collar | 4 pcs |
| Washer | 4 pcs |
| Bolts for 90 series only | 4 pcs |
| Bolts for 100 series only | 4 pcs |
*For JZX90 series, use the supplied black screws. For JZX100 / JZX110 / SXE10, use the supplied silver screws.
■Compatible chassis codes
| Compatible | GX90/JZX90/GX100/JZX100/JZX110/SXE10 |
| Not compatible | 4WD versions of the above vehicles, JZA80 / JZZ30 / JZS160 |
