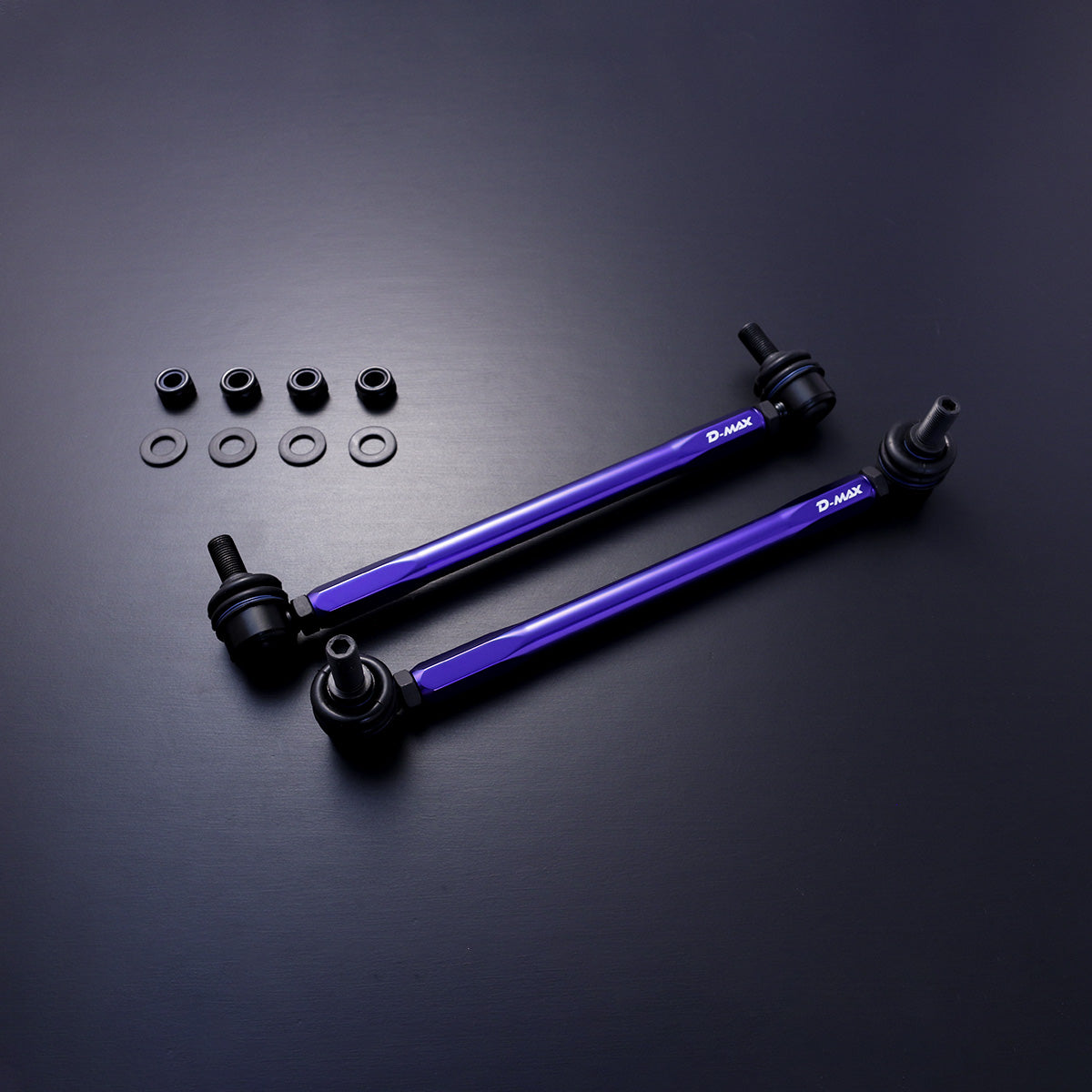

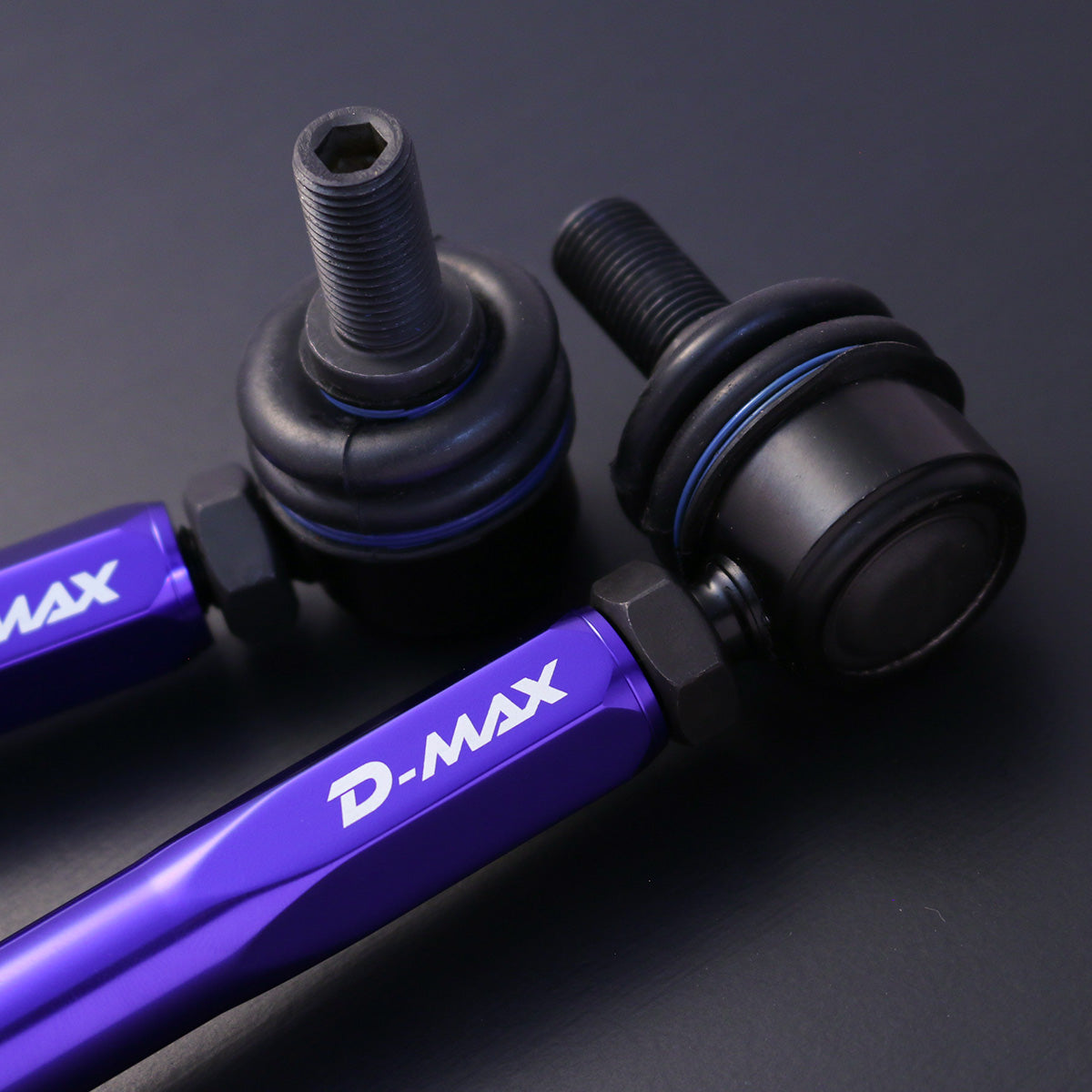

D-MAX Adjustable Sway Bar Links (Toyota Alphard MNH15W)
D-MAX Adjustable Sway Bar Links (Toyota Alphard MNH15W)
受取状況を読み込めませんでした
An adjustable sway bar link (stabilizer link) is the rod that connects the sway bar to the suspension. At stock ride height, the angle between the sway bar and link is close to 90 degrees on nearly every vehicle, but lowering the car changes that angle, so the sway bar no longer works as designed — left/right stroke changes, roll control decreases and ride quality suffers. On a lowered car, adjustable links let you restore the stock angle so the sway bar performs as intended.
| OEM size | 260mm |
| Adjustment range | 250mm~320mm |
| Adjustment method | Turnbuckle type |
| Rod length | 230mm |
| Rod diameter (widest point) | 17Ф |
| Rod material | Aluminum A6063 |
| End thread diameter | M12 |
| Vehicle | Alphard |
| Compatible chassis codes | MNH15W(4WD) |
| *Front sway bar links | |
| Warranty period | 1-year warranty from purchase *Note 1 |
Notes
・When replacing sway bar links, lift the vehicle and adjust left and right with the sway bar unloaded.
・Fitment has been confirmed on OEM suspension; all vehicle fitment data is relative to OEM. For non-OEM shocks or sway bars, measure on the actual vehicle
Always take actual measurements to confirm fitment.
*Note 1: Covered by warranty only if the ball joint bushing tears.
