Chase Bays Brake Line Relocation | 1994-2001 Acura Integra & 1992-2000 Honda Civic (CB-H-9)

Brake Line Relocation for 1994 - 2001 Acura Integra & 1992 - 2000 Honda Civic by Chase Bays

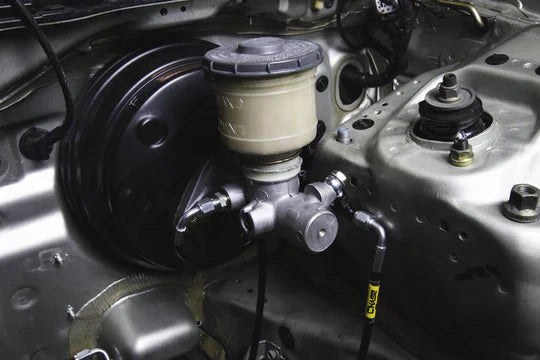

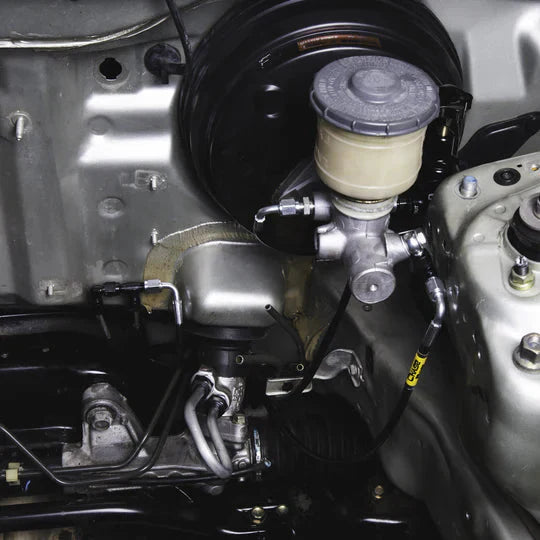

The Chase Bays Brake Line Relocation for 92-00 Honda Civic and 94-01 Integra is designed for enthusiasts who want to eliminate engine bay clutter and improve braking performance by relocating the brake lines in a more practical way.

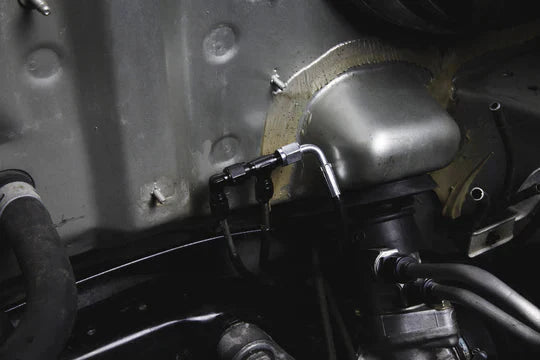

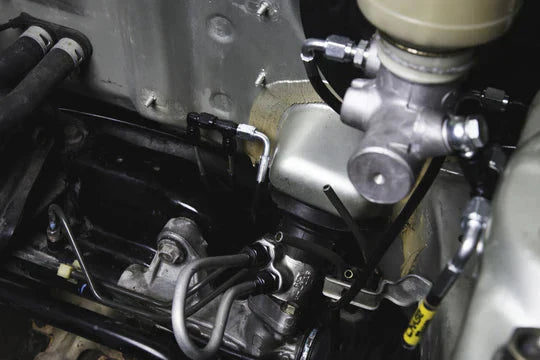

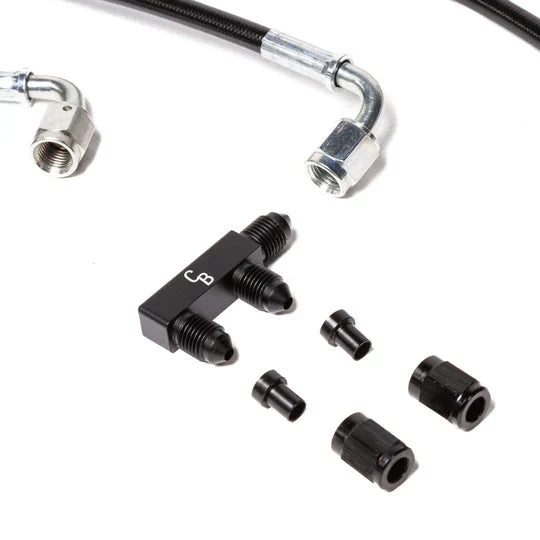

The front to rear line is adapted in a unique but necessary way. There are 2 hard lines that run to the rear of the chassis. To adapt the rear lines to AN, Chase Bays supplies "tube nut" and "tube sleeve" adapters. The factory hard lines are cut low on the firewall, reamed, and the supplied tube nut and tube sleeve are slid onto the hard lines. The hard lines are then flared to 37º degrees using a Proper 37 degree Flare Tool.

Please Note: The Brake Line Relocation replaces all of the engine bay hard lines up to the lines in the fenderwell. It does not include the fenderwell to caliper lines.

Features

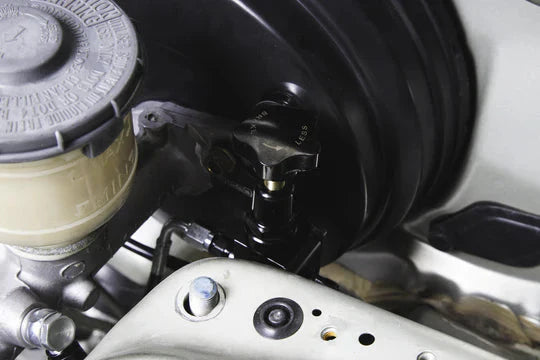

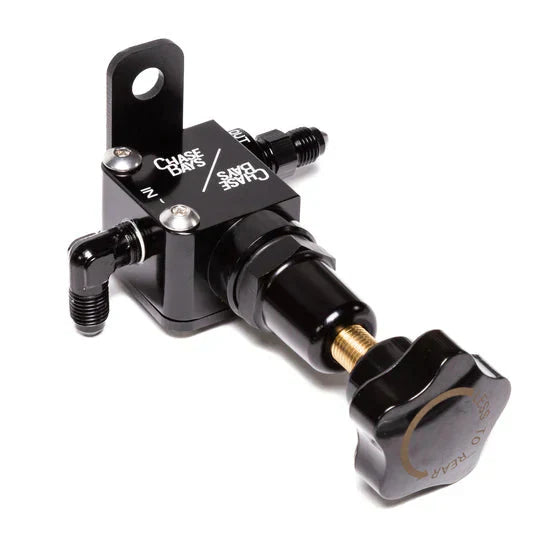

• Replaces factory proportioning valve / block with Adjustable Bias Valve
• Deletes ABS (When applicable)

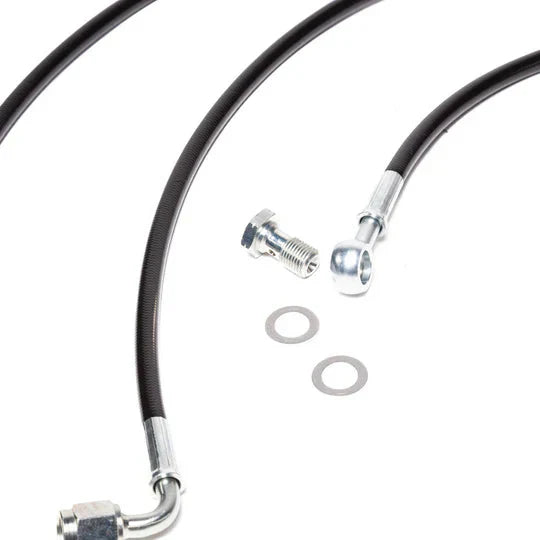

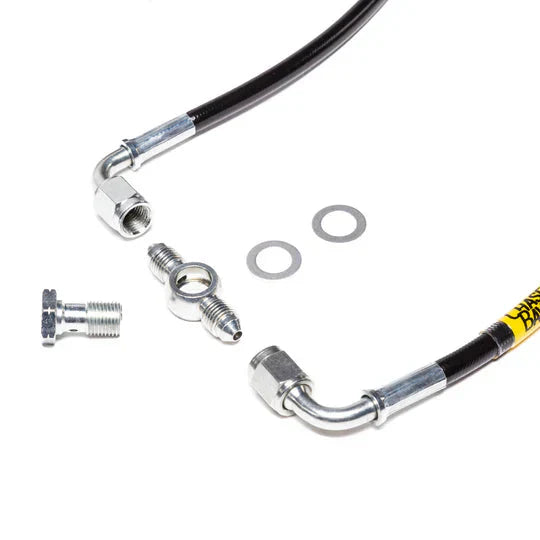

• -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines

Benefits

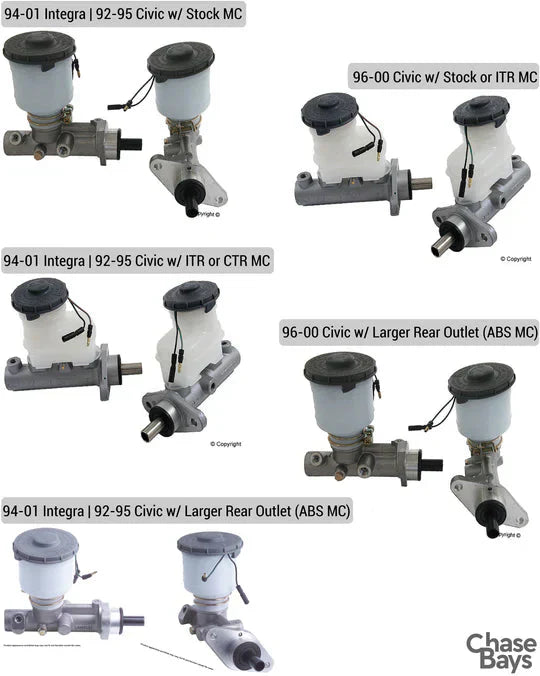

• Compensates for various master cylinder setups

Applications

• 1994 - 2001 Acura Integra
• 1992 - 2000 Honda Civic

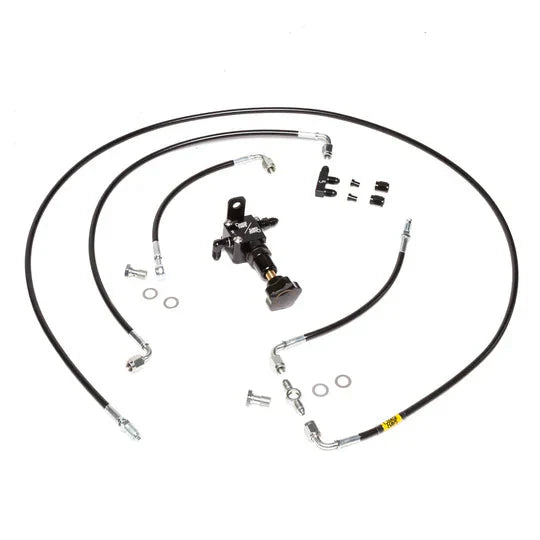

What's In The Box?

• 1 - Set of Replacement Brake Lines

References

• Installation Instructions

Warranty

• Limited Manufacturers Warranty
